No Matter the Case Size, We’ve Got You Covered

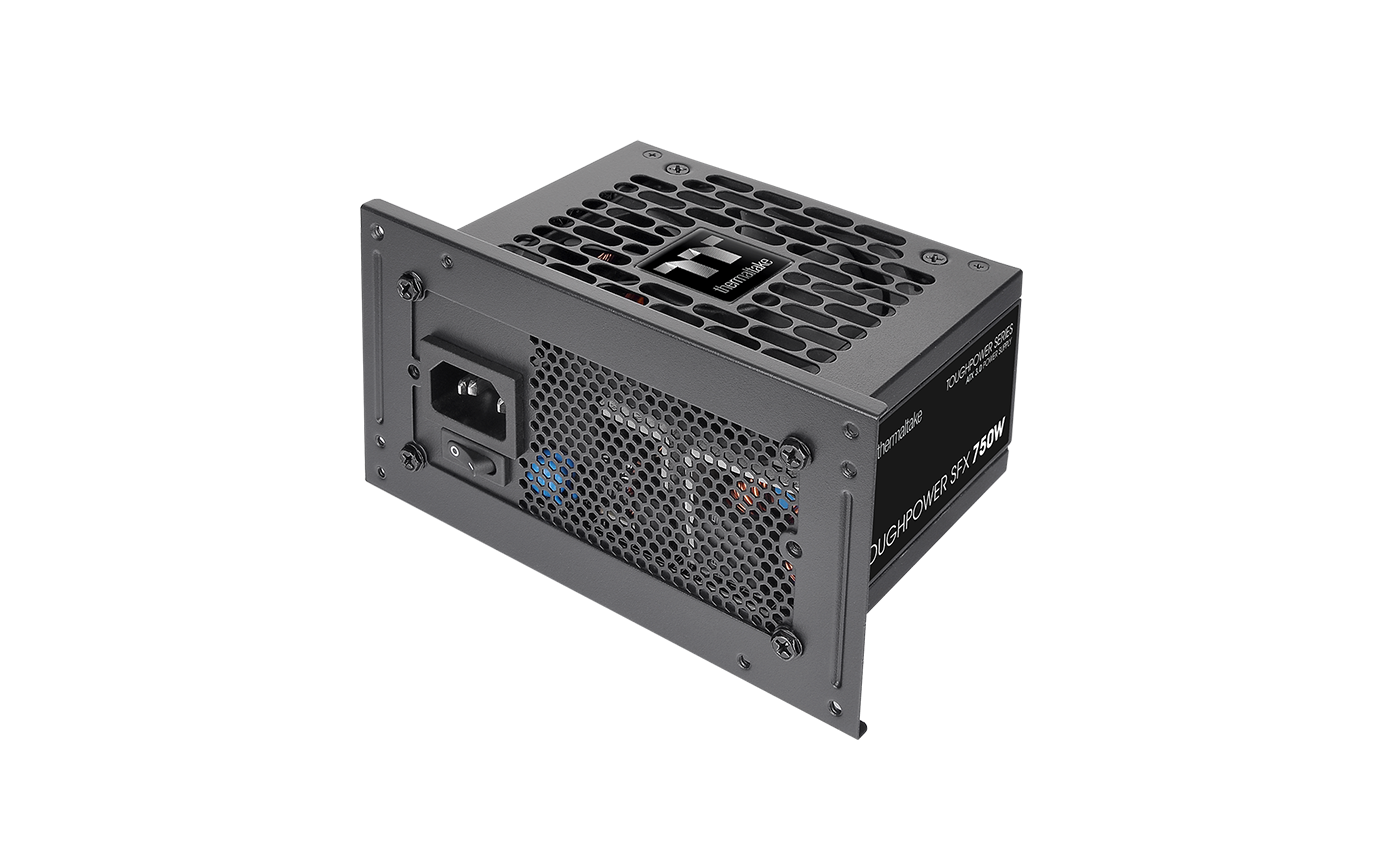

The Toughpower SFX 750W Gold comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.
| P/N | PS-STP-0750FNFAGx-1
|
PS-STP-0850FNFAGx-1 | PS-STP-1000FNFAGx-1
|
| watts | 750W | 850W | 1000W |
| Model | SFX-750AH8FKG | SFX-850AH8FKG
|
SFX-1000AH2FKG |
| Max. Output Capacity | 750W | 850W | 1000W
|
| Color | Black | Black
|
Black
|

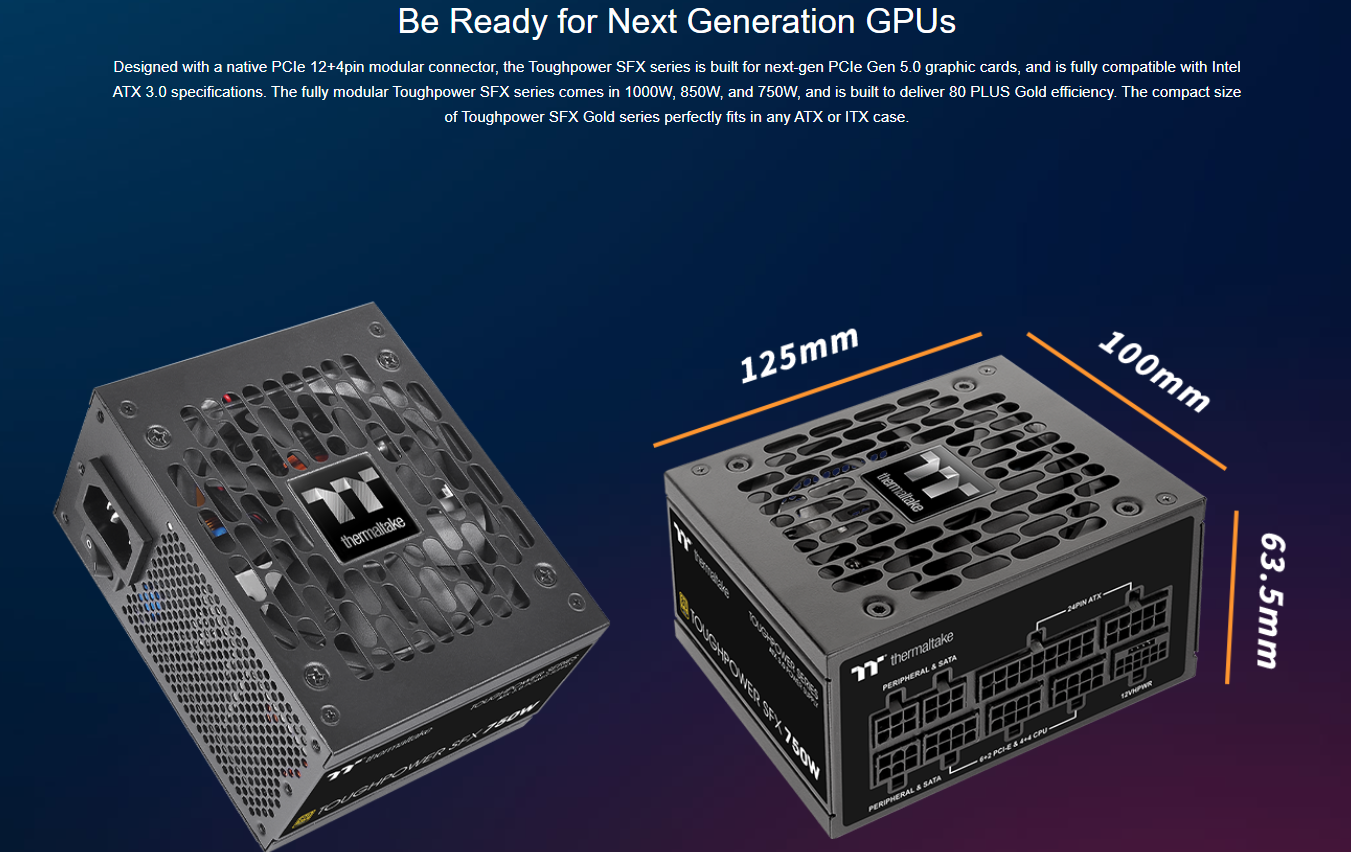

| Dimension ( W / H / D ) | 125mm(W)x63.5mm(H)x100mm(D) | 125mm(W)x63.5mm(H)x100mm(D)
|
125mm(W)x63.5mm(H)x126mm(D)
|
| Weight | 1 KG | 1 KG
|
1.2 KG
|
| PFC (Power Factor Correction) | Active PFC | Active PFC
|
Active PFC
|
| Power Good Signal | 100-500 msec | 100-500 msec
|
100-500 msec
|

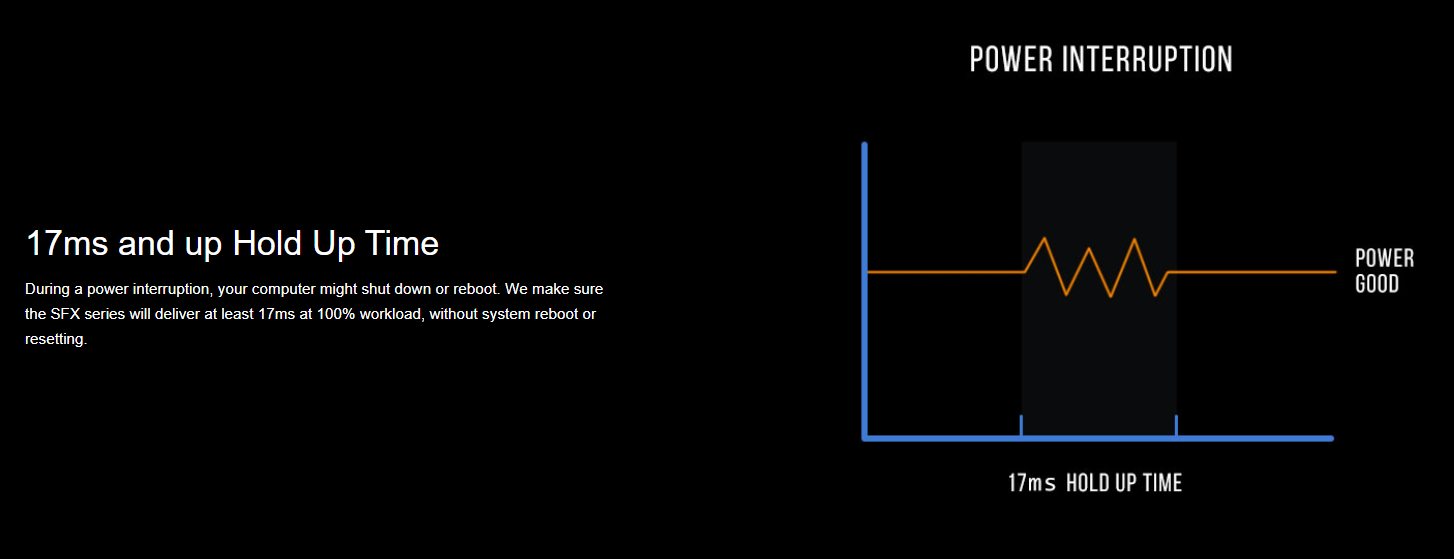

| Hold Up Time | > 17msec at 100% of full load
|
> 17msec at 100% of full load
|
> 17msec at 100% of full load
|
| Input Current | 10A Max.
|
10A Max.
|
15A Max. |
| Input Frequency Range | 50 – 60Hz | 50 – 60Hz
|
50 – 60Hz
|
| Input Voltage | 100V – 240V~ | 100V – 240V~
|
100V – 240V~
|
| OPERATING TEMPERATURE | 0°C to + 45°C | 0°C to + 45°C
|
0°C to + 45°C
|
| Operating Humidity | 5% to 85%,non-condensing
|
5% to 85%,non-condensing
|
5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C | -40°C to + 70°C
|
-40°C to + 70°C
|
| Storage Humidity | 5% to 95%, non-condensing | 5% to 95%, non-condensing
|
5% to 95%, non-condensing
|

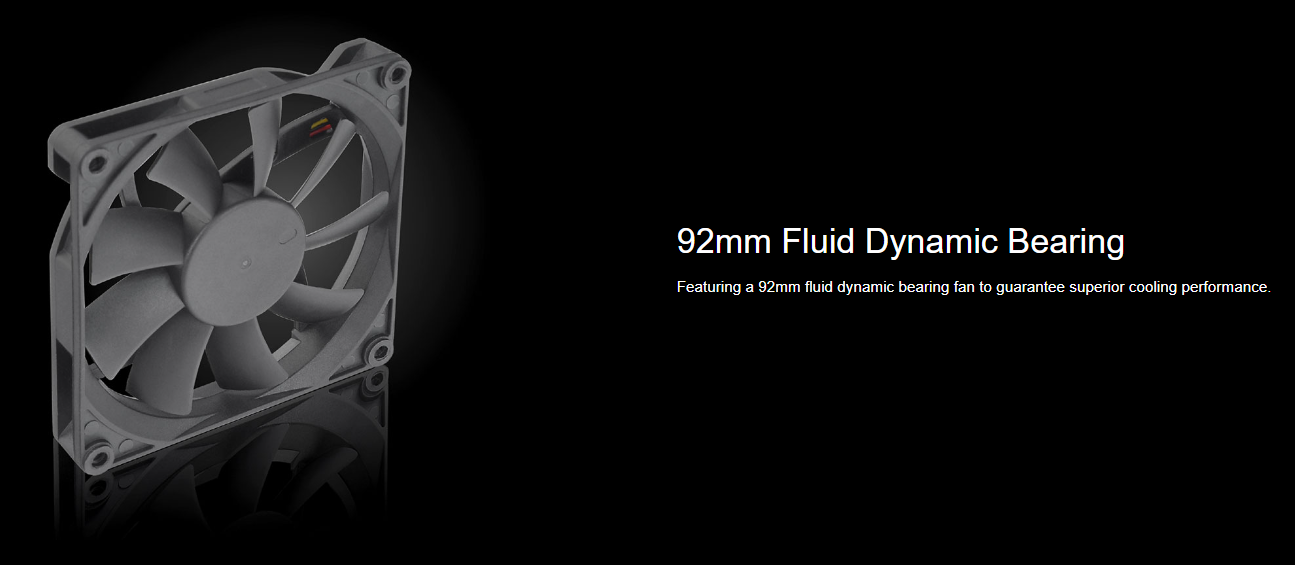

| COOLING SYSTEM | 92mm FDB Fan | 92mm FDB Fan
|
12cm FDB Fan
|
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. | Meet 80 PLUS®Gold at 115Vac input.
|
Meet 80 PLUS®Gold at 115Vac input.
|
| MTBF | 100,000 hrs minimum | 100,000 hrs minimum
|
100,000 hrs minimum
|
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
|
CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
|

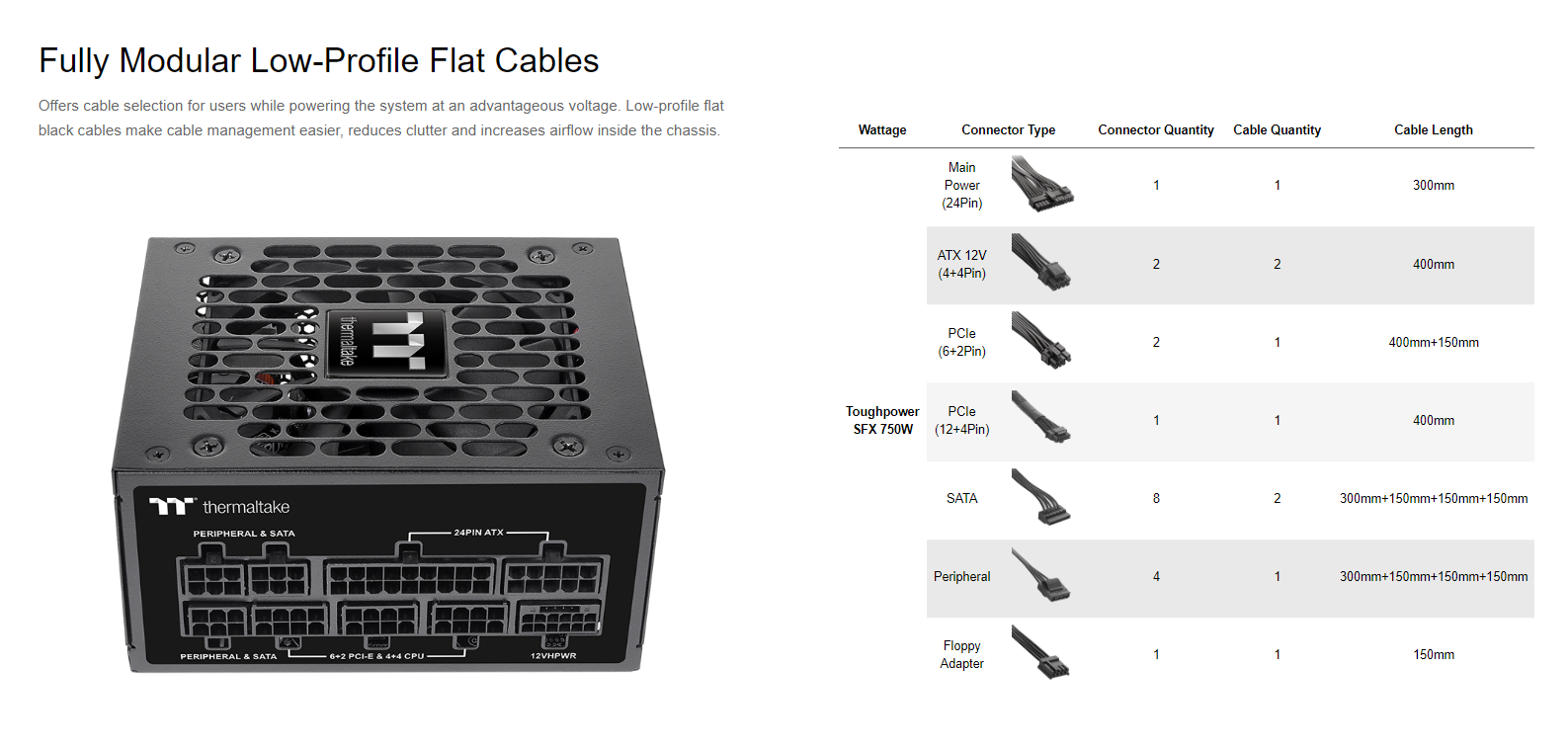

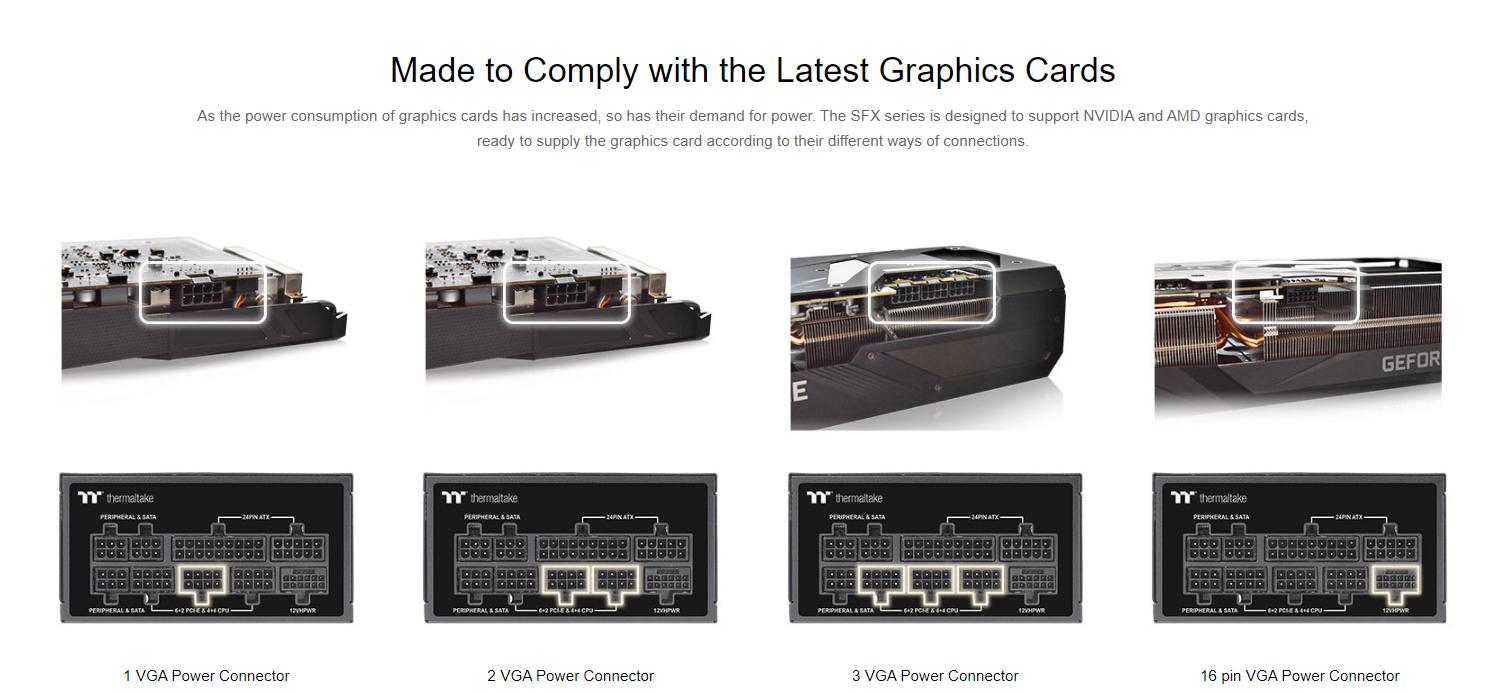

| PCI-E 6+2pin | 2 | 2
|
4
|

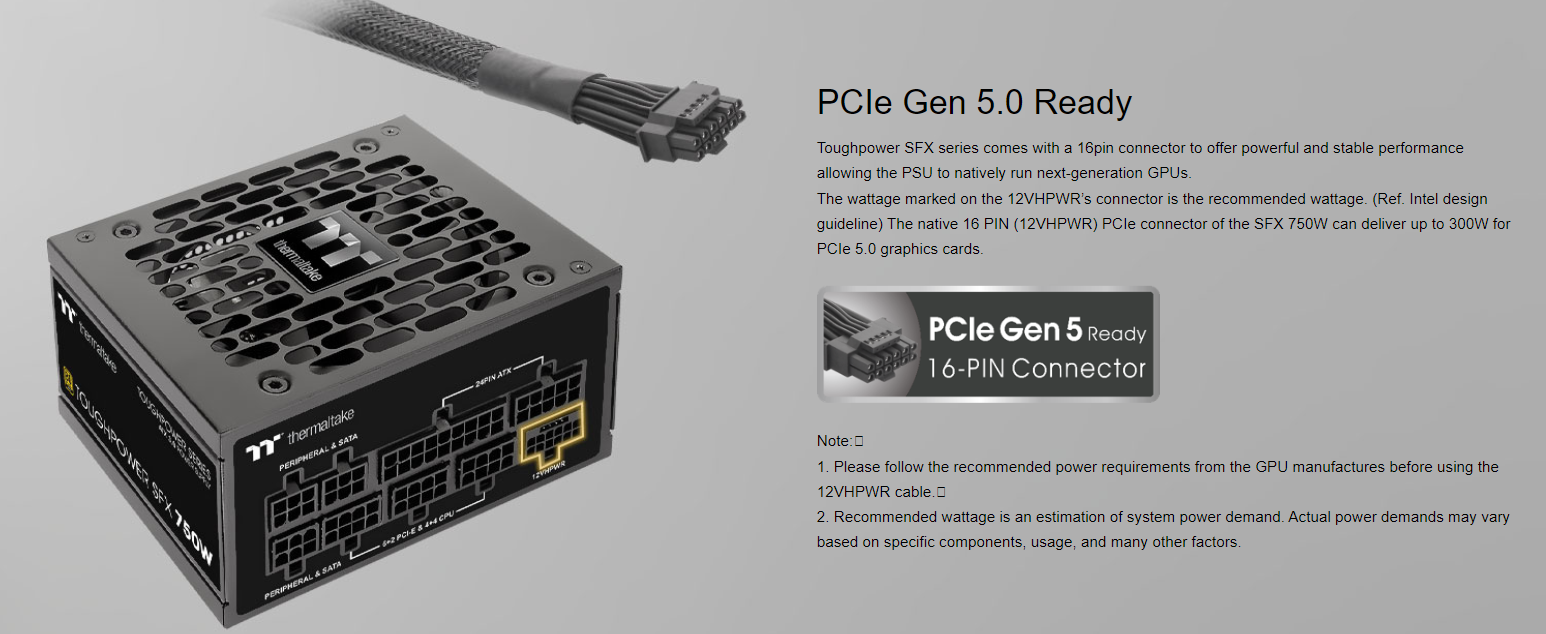

| PCIe 12+4pin | 1 | 1 | 1 |
