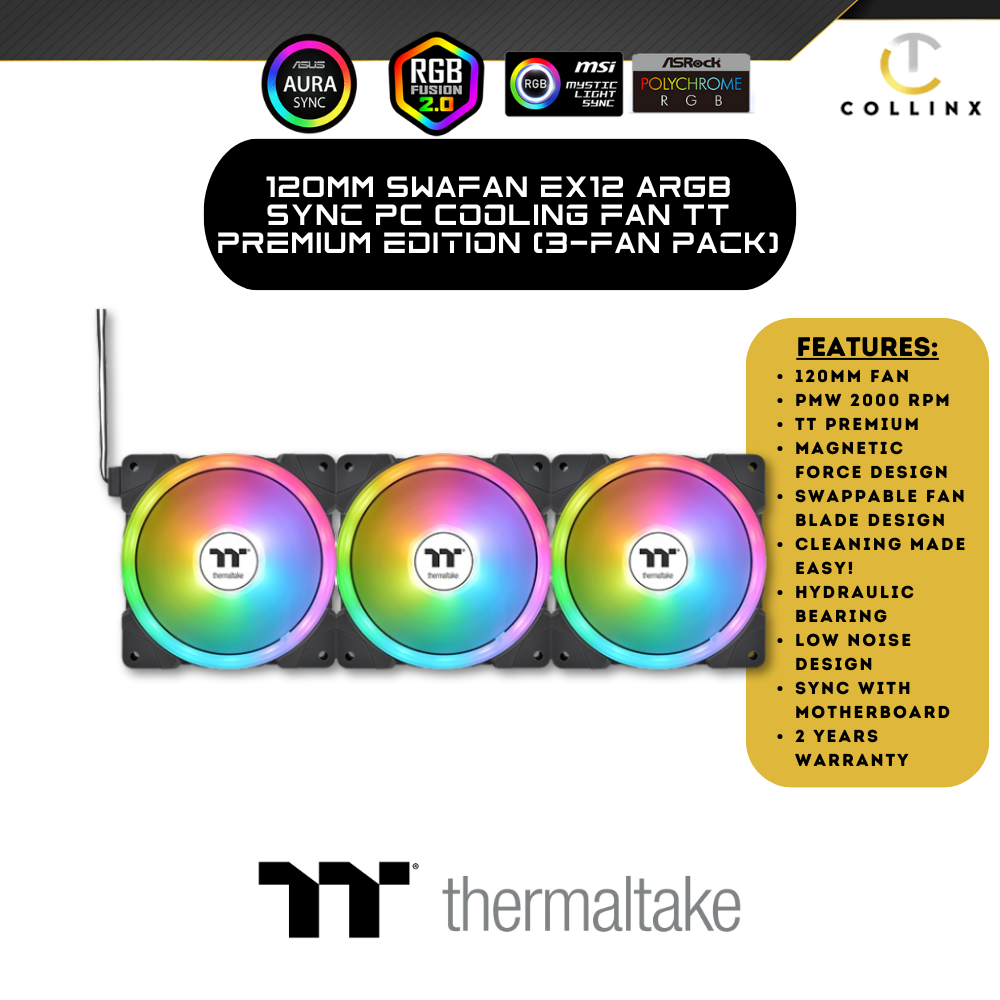

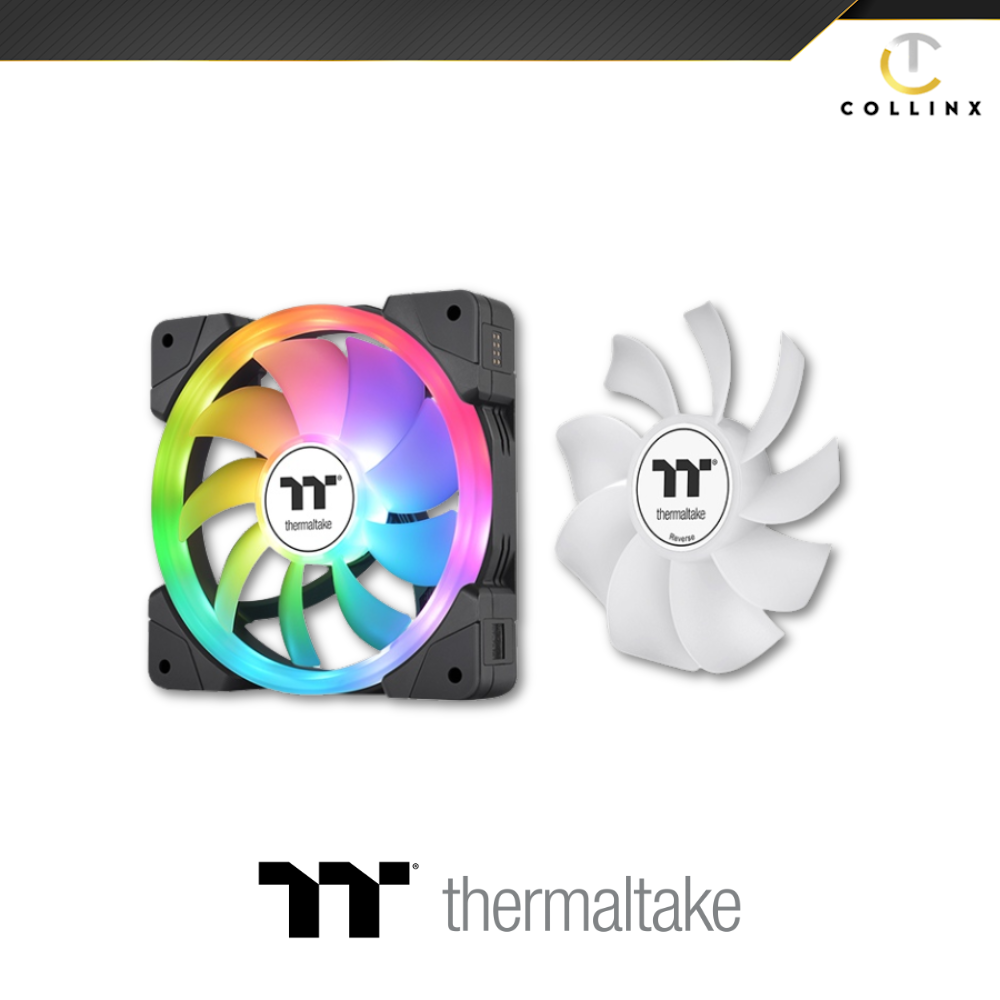

SWAFAN EX12 ARGB Sync PC Cooling Fan TT Premium Edition (3-Fan Pack)

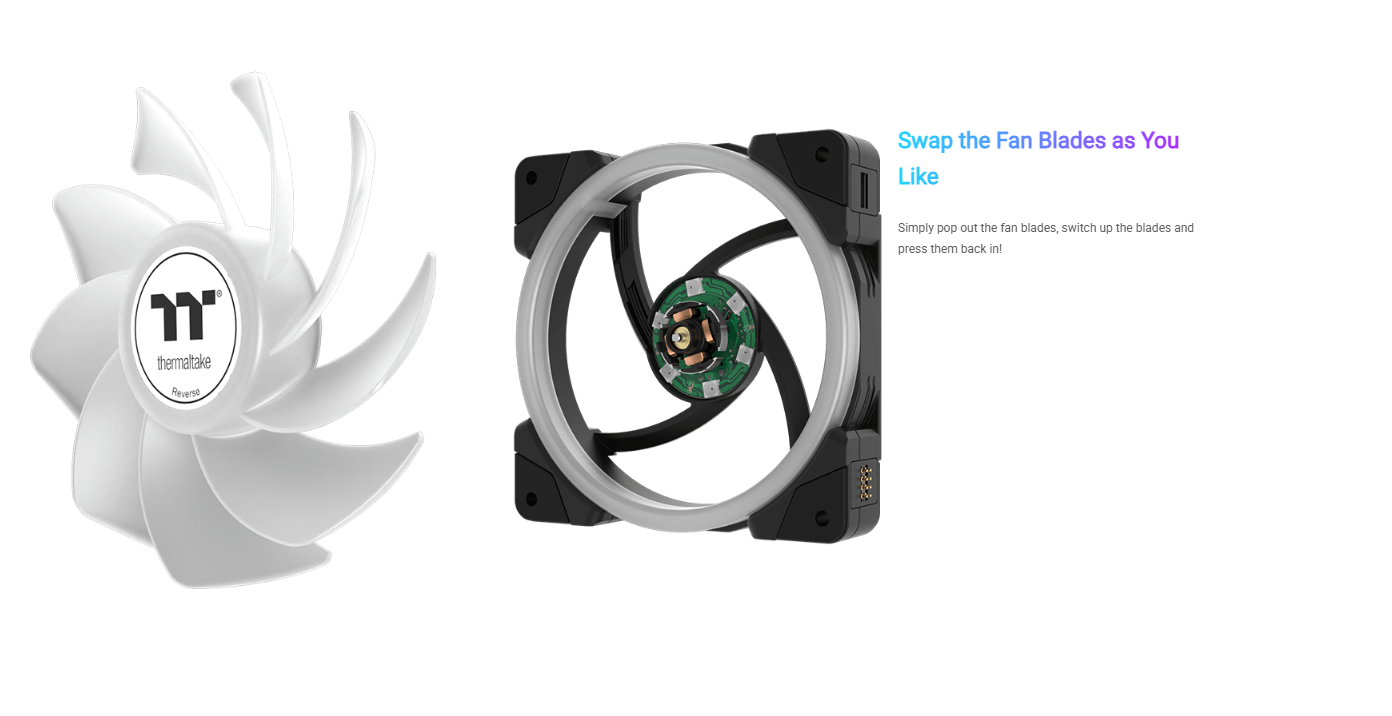

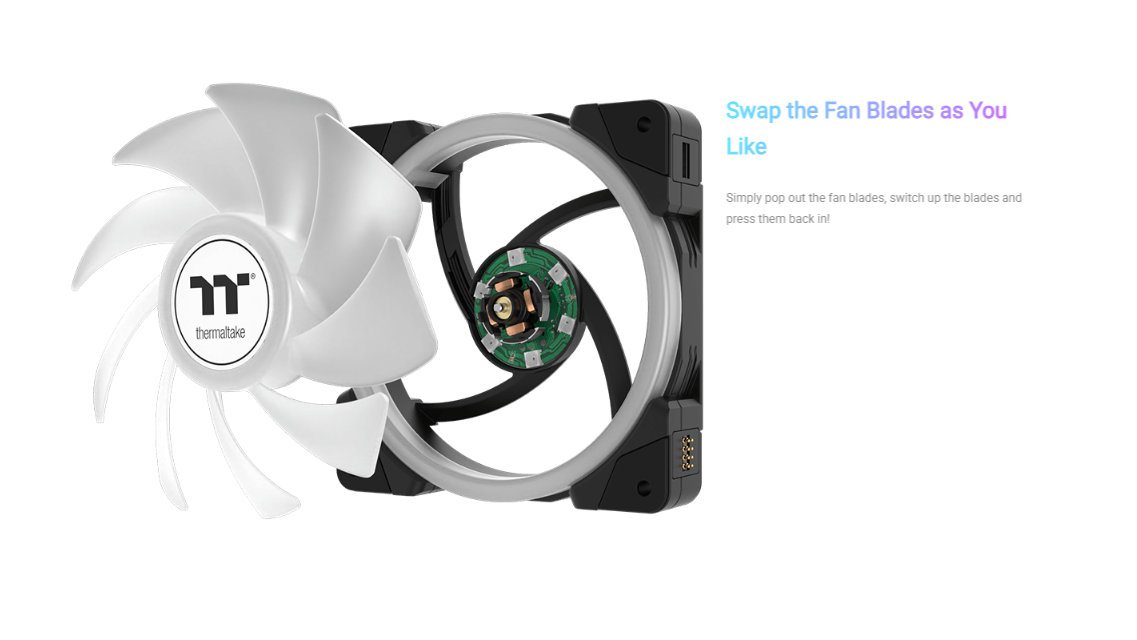

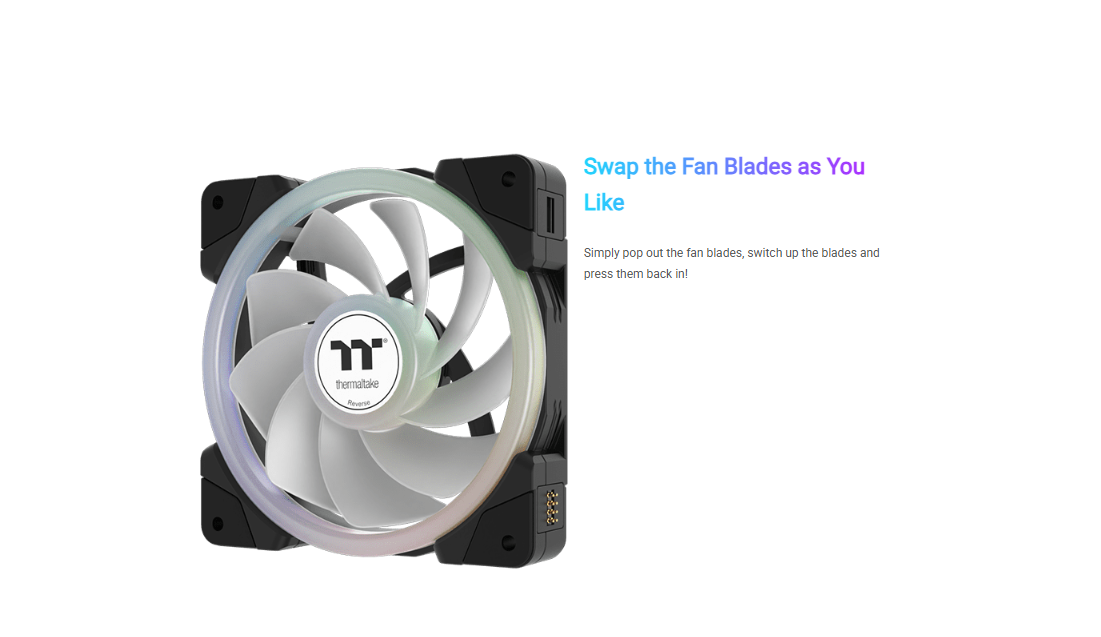

SWAFAN EX12 ARGB brings magnetic force design to ARGB fans while keeping the iconic swappable fan blade design. Daisy-chaining up to 3 fans per cable improves fan connection efficiency and convenience while enhancing cable management for PC building.

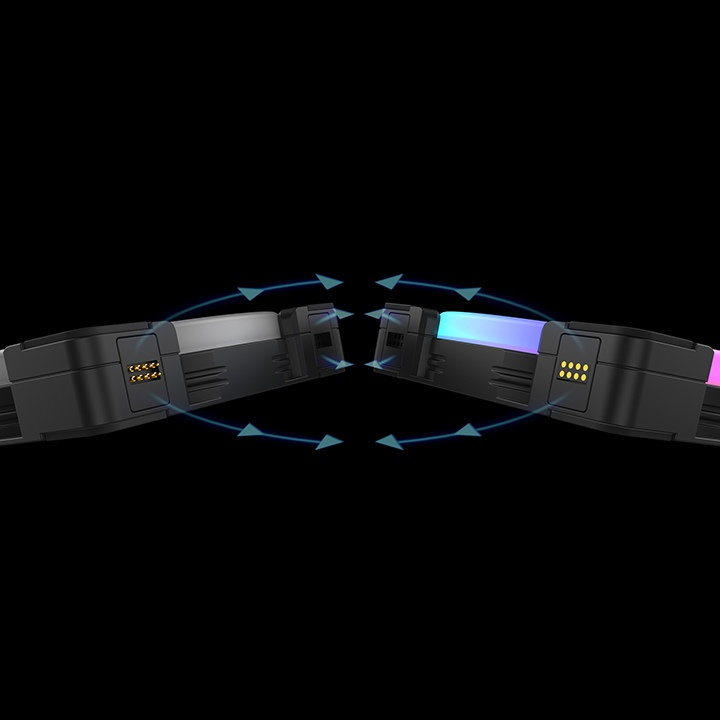

Quick Connect with Magnetic Force Design
Our magnetic force design ARGB version enables the connection of both the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector; simply placing the fans side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.
Say Goodbye to Excessive Cables
Connect your fans with SWAFAN EX’s Magnetic Force Quick Connect Design and be free from messy cables!
Great Lighting Effects with 16.8M Colors

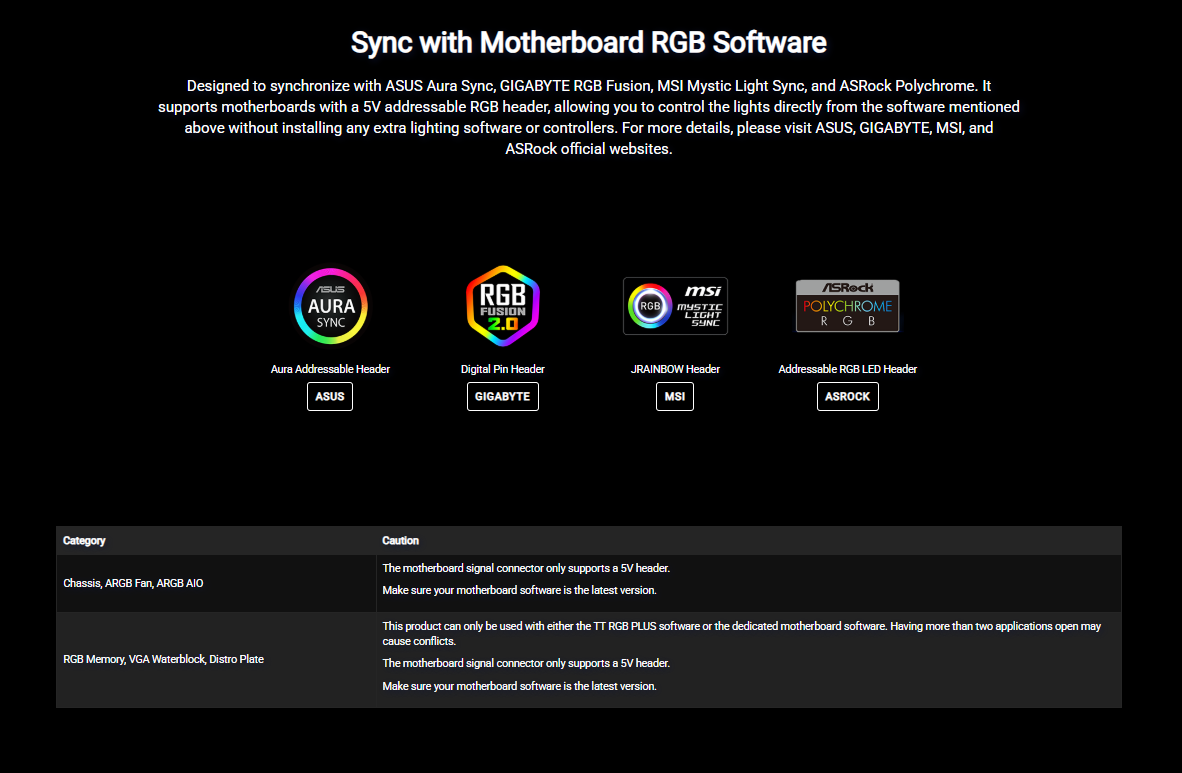

Two independent LED rings with 20 LEDs (Inner ring: 6, Outer ring: 14) allows you to explore different build themes with 5V motherboard sync lighting software.
| P/N | CL-F167-PL12SW-A | CL-F168-PL14SW-A |
| Fan Dimension | 120 x 120 x 25 mm
|
140 x 140 x 25 mm |
| INTERFACE | 2510-4 PIN PWM, 5V ARGB header-3PIN
|
2510-4 PIN PWM, 5V ARGB header-3PIN |
| Fan Started Voltage | 9.0 V
|
9.0 V
|
| Fan Rated Voltage | 12 V & 5V
|
12 V & 5V |
| Rated Current | 12 V – 0.27 A , 5 V – 0.72 A (one fan)
|
12 V – 0.32 A , 5 V – 0.72 A (one fan)
|
| Power Input | 12 V – 3.24 W , 5 V – 3.6 W (one fan)
|
12 V – 3.84 W , 5 V – 3.6 W (one fan)
|
| Fan Speed | PWM 500 ~ 2000 R.P.M
|
PWM 500 ~ 2000 R.P.M
|

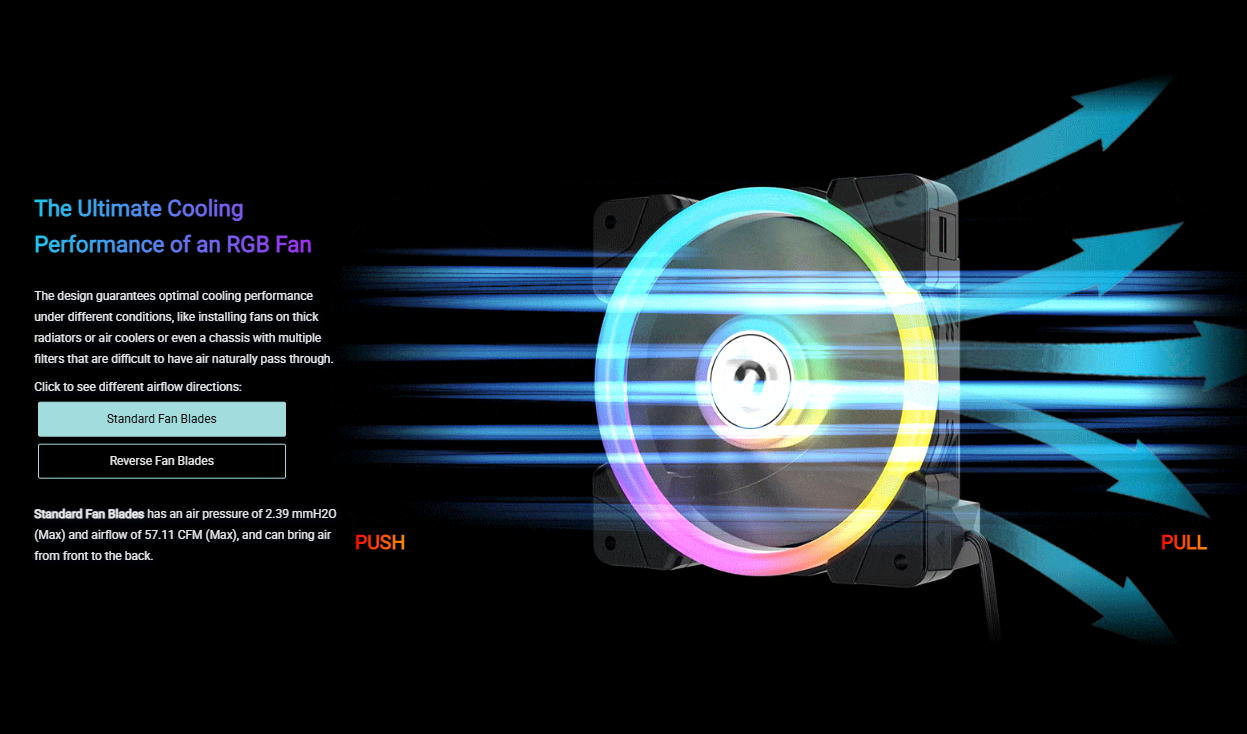

| Max. Air Pressure | Standard Fan Blade : 2.39 mm-H2O (one fan)

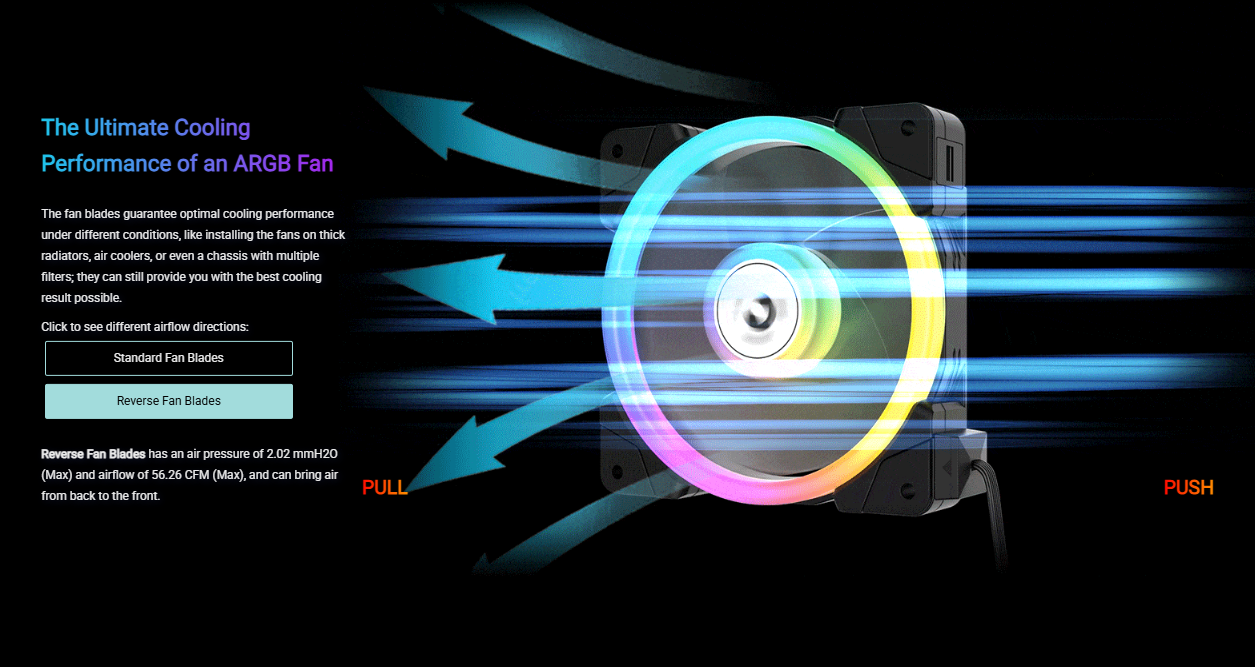

Reverse Fan Blade : 2.02 mm-H2O (one fan)
|
Standard Fan Blade : 3.17 mm-H2O (one fan)
Reverse Fan Blade : 2.73 mm-H2O (one fan) |
| Max Air Flow | Standard Fan Blade : 57.11 CFM (one fan)
Reverse Fan Blade : 56.26 CFM (one fan) |
Standard Fan Blade : 81.6 CFM (one fan)
Reverse Fan Blade : 79.3 CFM (one fan) |
| NOISE LEVEL | Standard Fan Blade : 30.6 dB-A (one fan)
Reverse Fan Blade : 32.5 dB-A (one fan) |
Standard Fan Blade : 34.5 dB-A (one fan)
Reverse Fan Blade : 38.8 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing | Hydraulic Bearing
|
| Life Expectation | 40,000 hrs,25℃
|
40,000 hrs,25℃ |
| Included items | Fan Frames x 3
Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
Fan Frames x 3
Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
