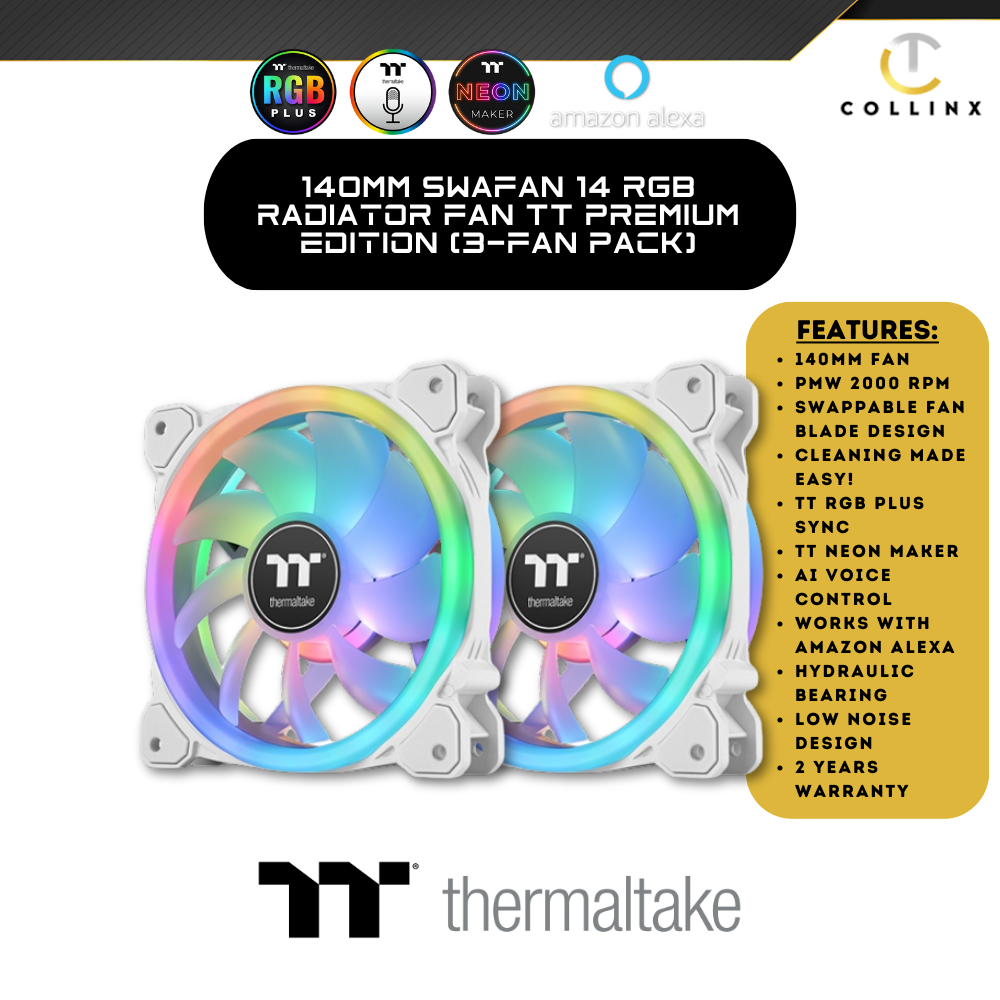

SWAFAN 14 RGB Radiator Fan TT Premium Edition White (3-Fan Pack)
SWAFAN 14 RGB White features a swappable fan blade design that allows you to switch between 2 types of fan blades included in the package, so you can create the ideal airflow for your chassis without compromising the aesthetics of its RGB lighting.
| P/N | CL-F137-PL12SW-A
|
CL-F146-PL14SW-A |
| Fan Dimension | 120 x 120 x 25 mm | 140 x 140 x 25 mm |
| INTERFACE | USB 2.0 connectors (9 Pin) | USB 2.0 connectors (9 Pin) |
| System compatibility | Windows 10 /11 | Windows 10 /11 |
| Fan Started Voltage | 9.0 V | 6.0 V
|
| Fan Rated Voltage | 12 V | 12V / 5V |
| Rated Current | 0.27A (only one fan) | 0.33A / 1.2A (only one fan) |
| Power Input | 3.24 W (only one fan) | 3.96 W / 6W (only one fan) |
| Fan Speed | 500 ~ 2000 R.P.M | 500 ~ 2000 R.P.M |
| Max. Air Pressure | Fan Blade 1 : 2.58 mm-H2O (only one fan)
Fan Blade 2 : 2.19 mm-H2O (only one fan) |
Standard Fan Blade (Black Labeled) :
3.12 mm-H2O (only one fan) Reverse Fan Blade (Silver Labeled) : 2.59 mm-H2O (only one fan) |
| Max Air Flow | Fan Blade 1 : 53.02 CFM (only one fan)
Fan Blade 2 : 54.85 CFM (only one fan) |
Standard Fan Blade (Black Labeled) :
77.6 CFM (only one fan) Reverse Fan Blade (Silver Labeled) : 71.3 CFM (only one fan) |
| NOISE LEVEL | Fan Blade 1 : 30.5 dB-A (only one fan)
Fan Blade 2 : 36.5 dB-A (only one fan) |
Standard Fan Blade (Black Labeled) :
34.5 dB-A (only one fan) Reverse Fan Blade (Silver Labeled) : 40.5 dB-A (only one fan) |
| Bearing Type | Hydraulic Bearing | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ | 40,000 hrs,25℃ |
| Included items | Fan Frames x 3
Fan Blade 1 (Black Labeled) x 3 (Pre-installed) Fan Blade 2 (Silver Labeled) x 3 Controller x 1 |
Fan Frames x 3
Standard Fan Blade (Black Labeled) x 3 (Pre-installed) Reverse Fan Blade (Silver Labeled) x 3 Controller x 1 |
