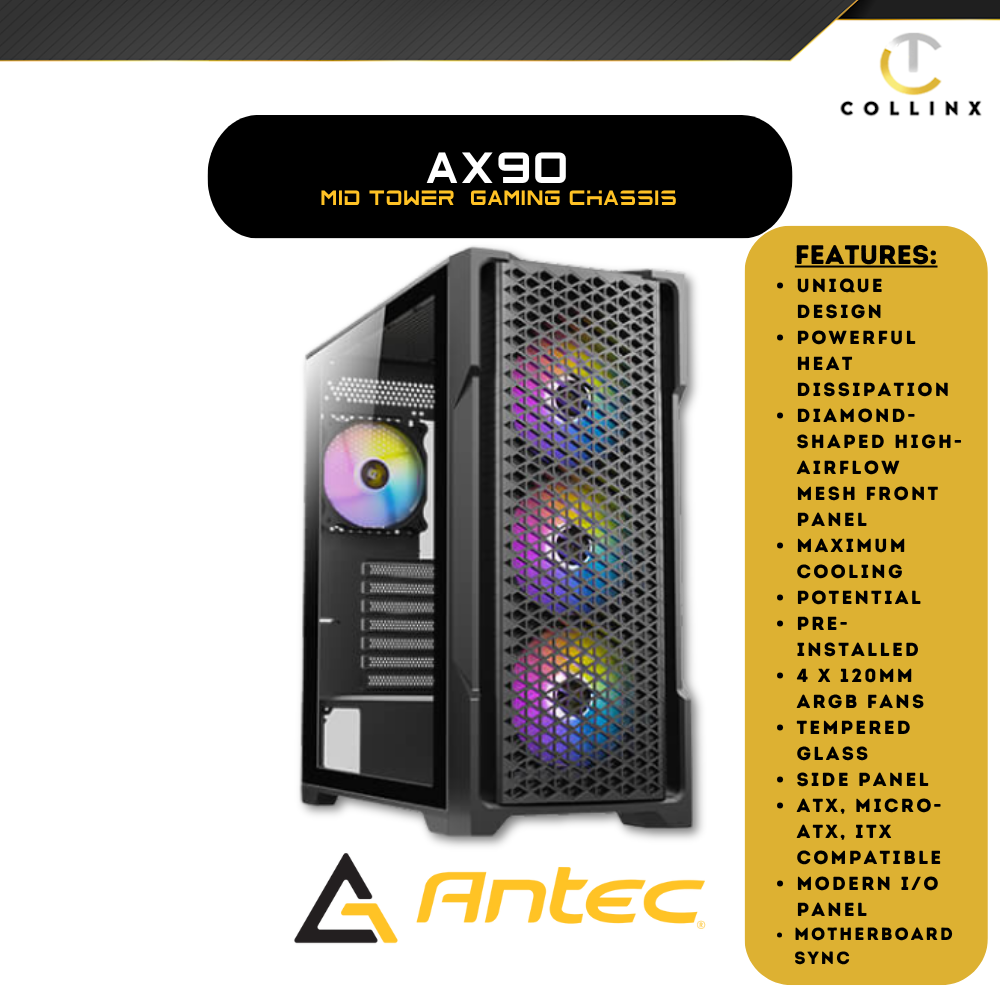

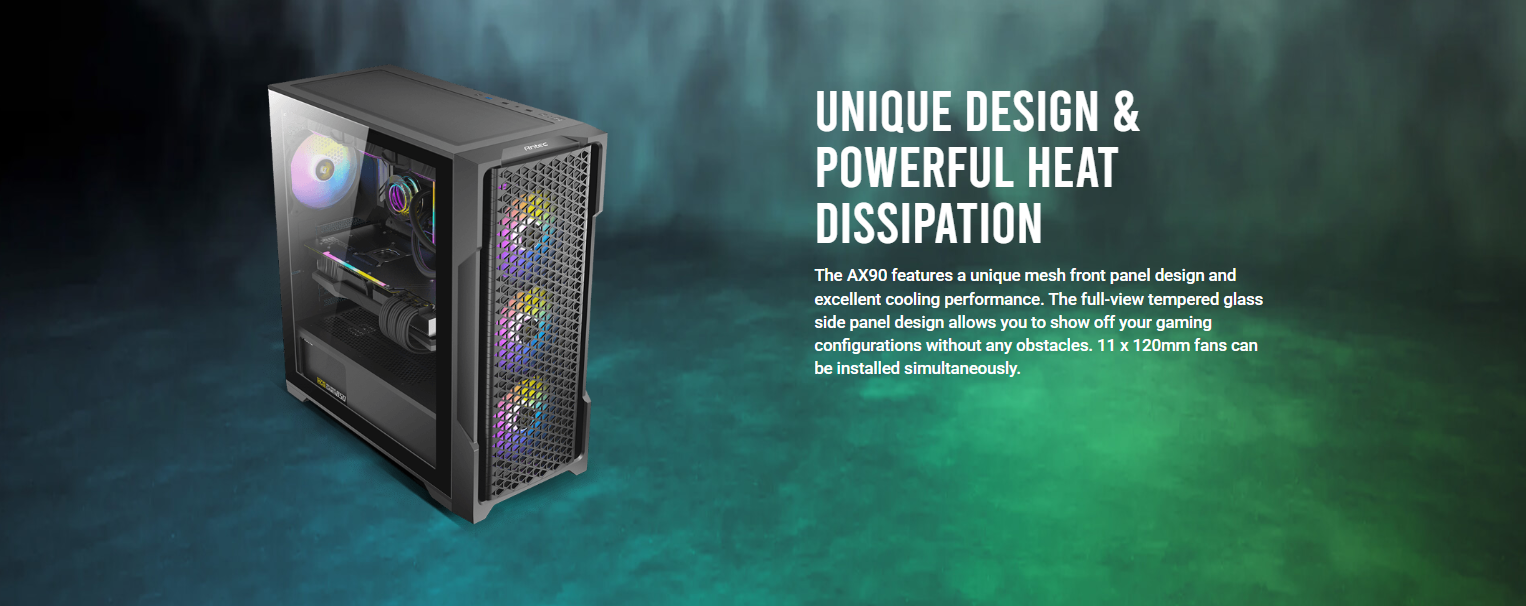

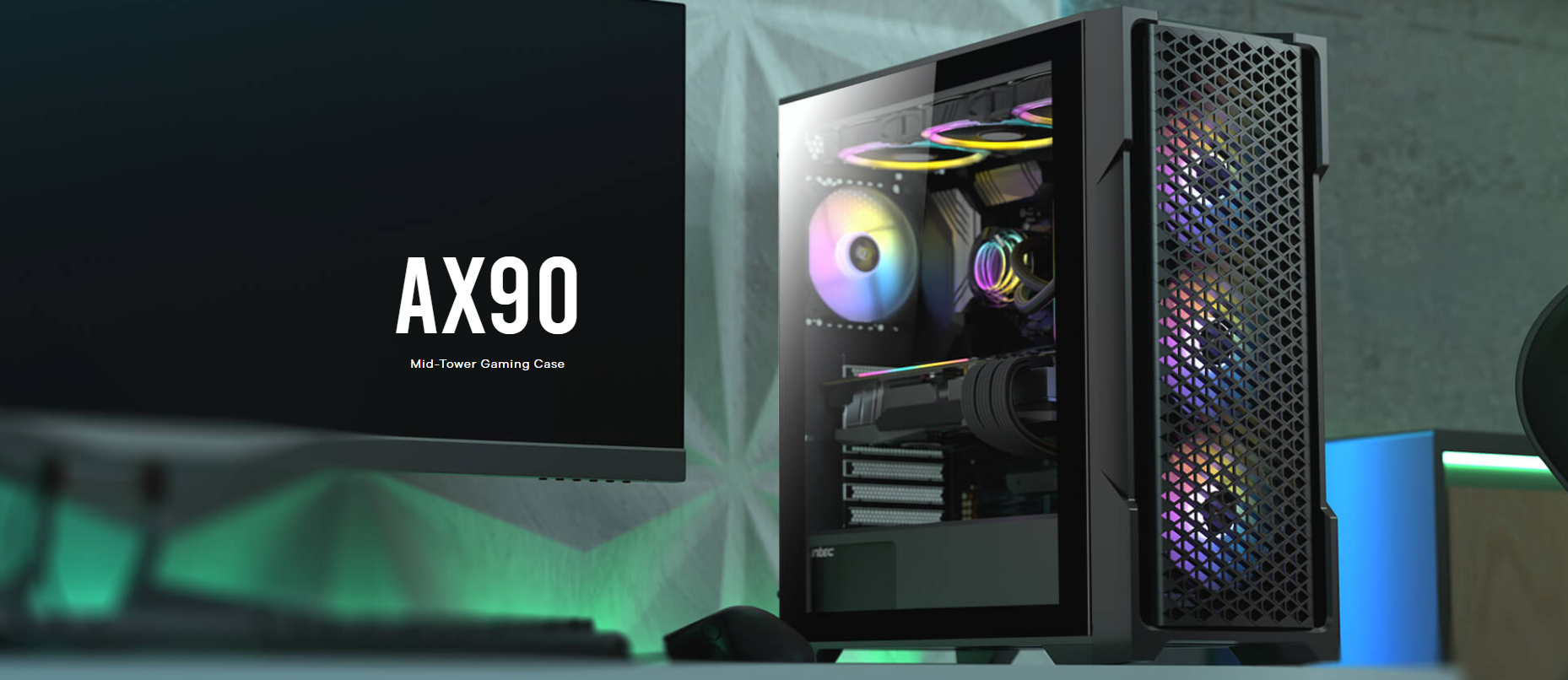

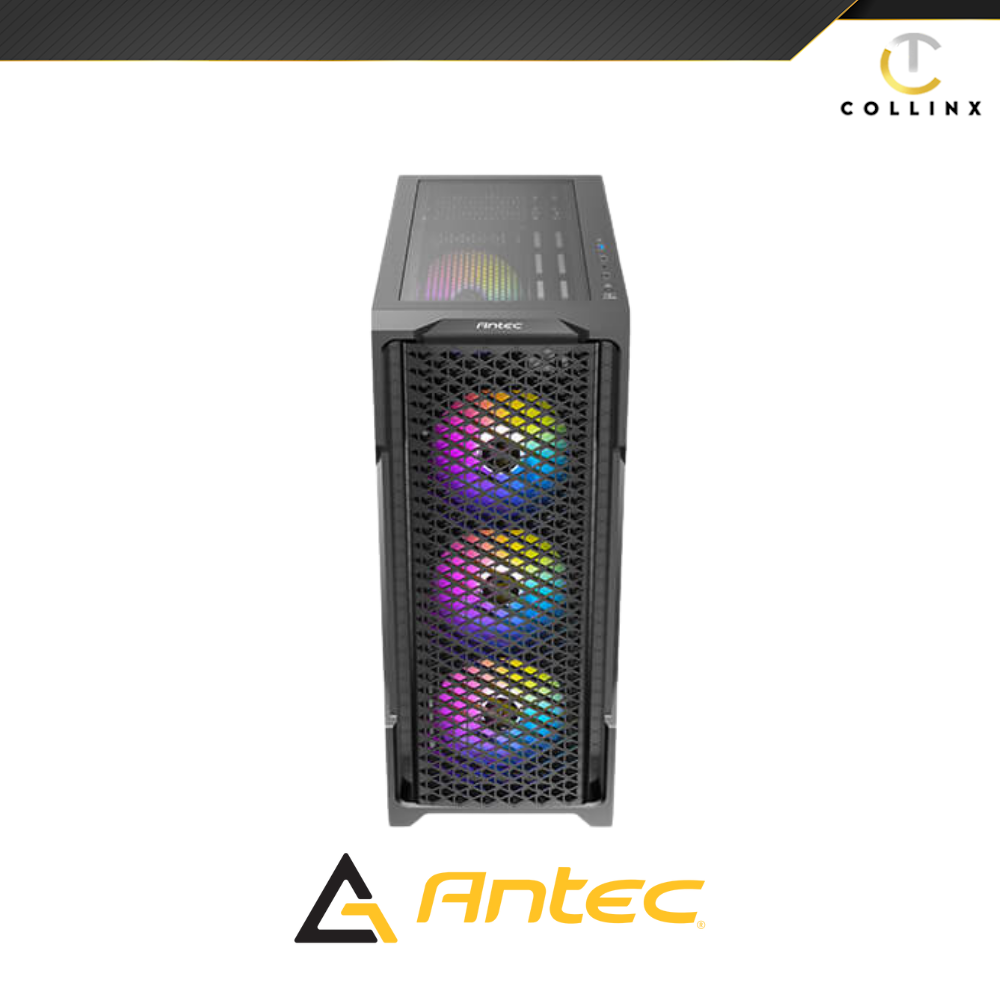

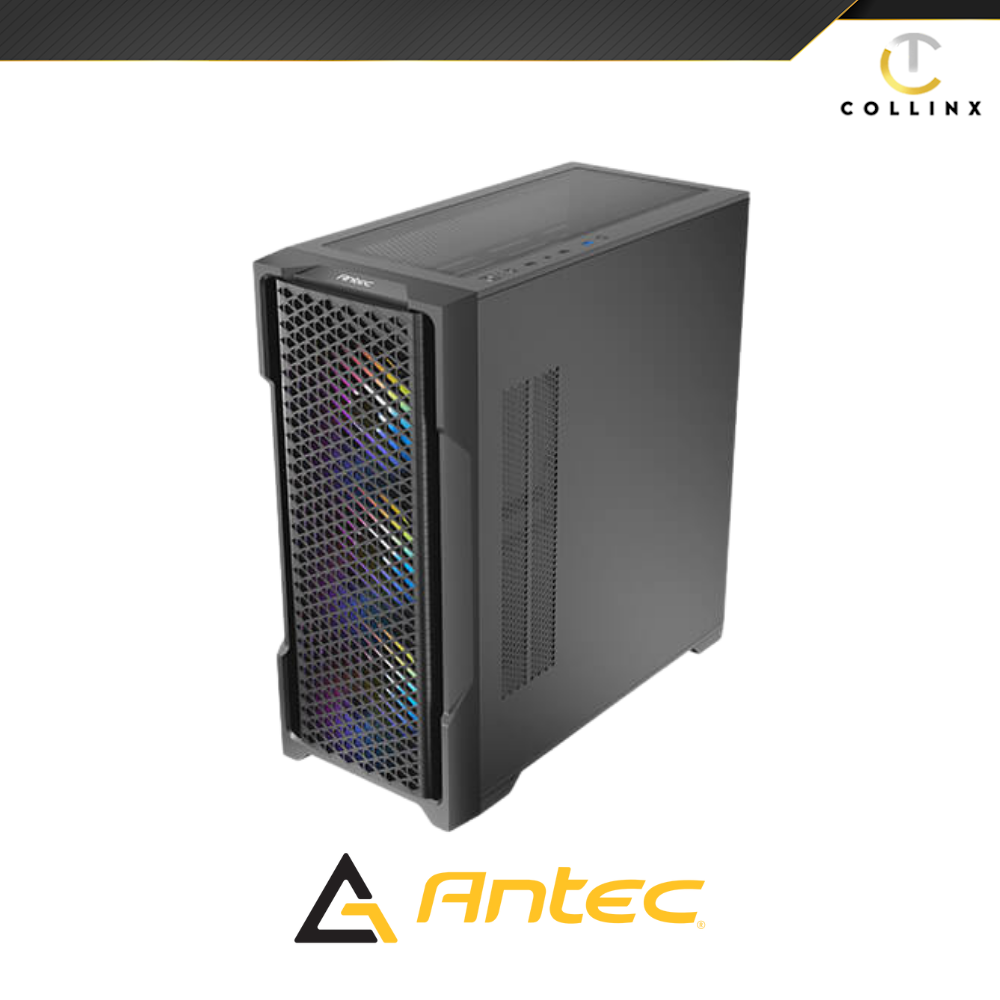

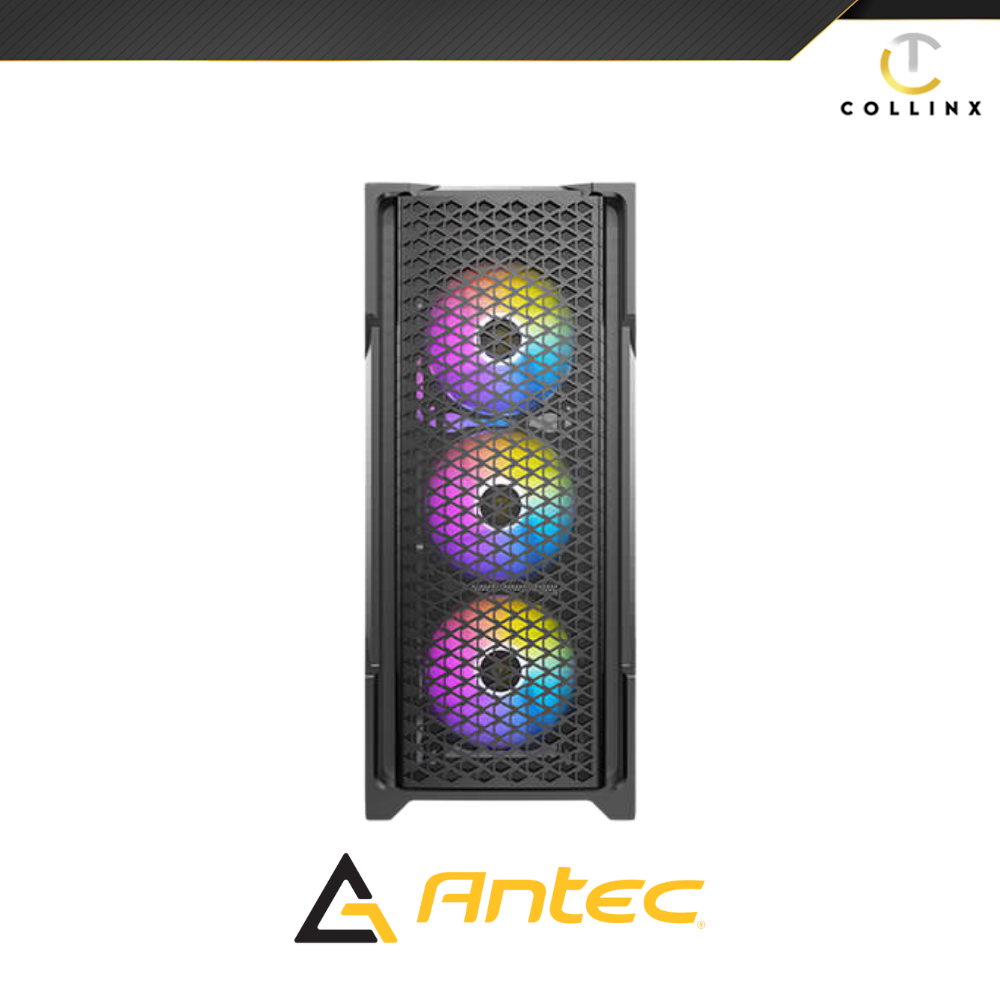

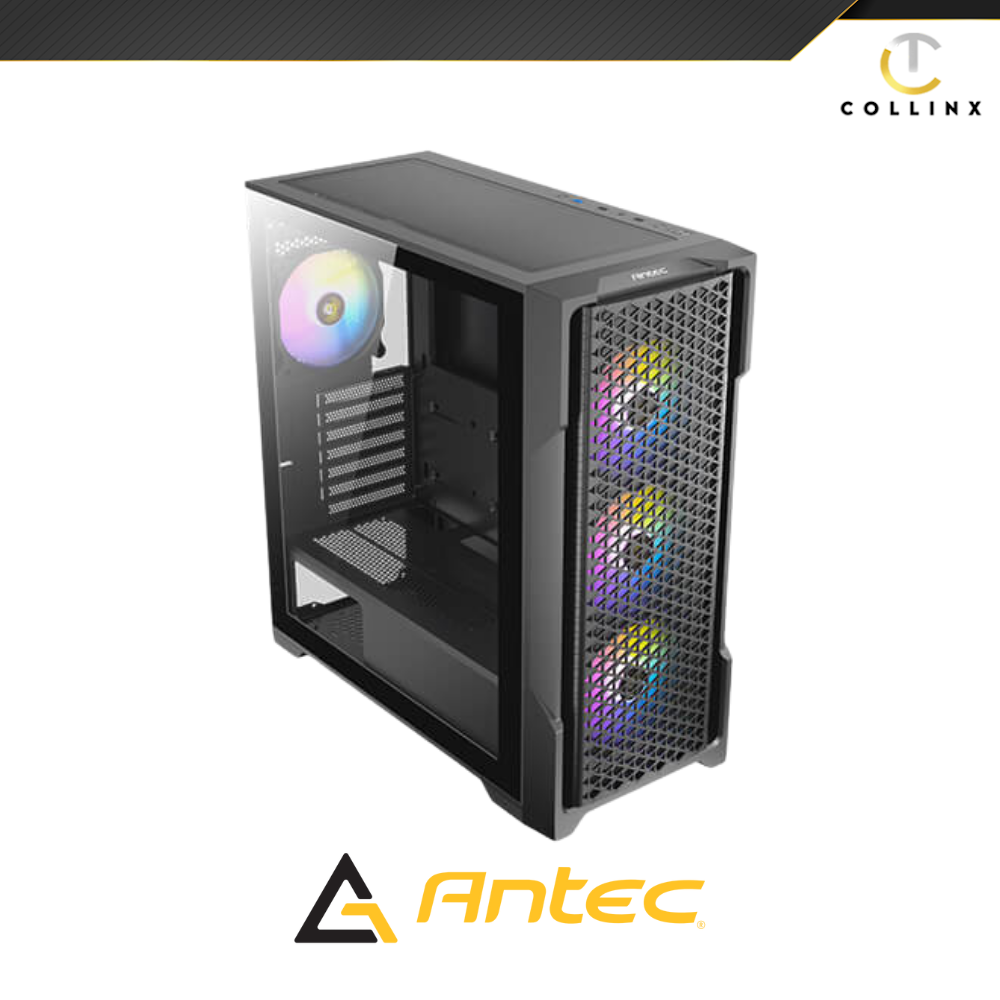

Antec AX90 Mid Tower Gaming Chassis


3,990.00

Compare

SPECIFICATIONS

main spec

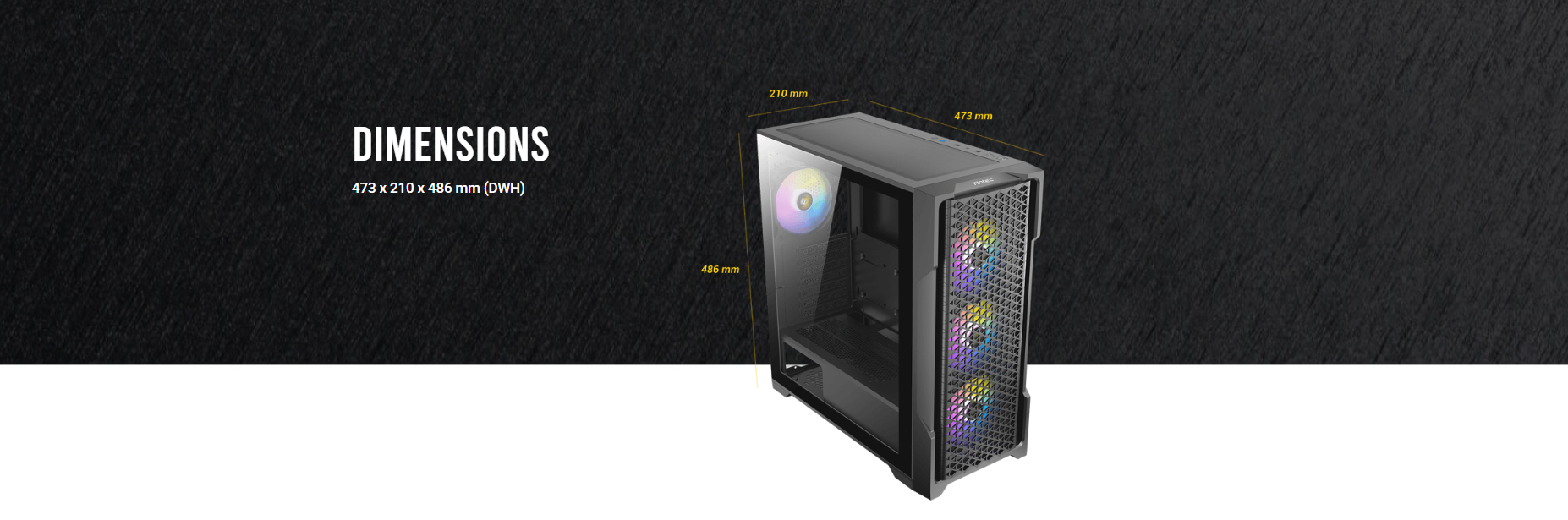

Dimensions 473 x 210 x 486mm(DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support ATX, M-ATX, ITX

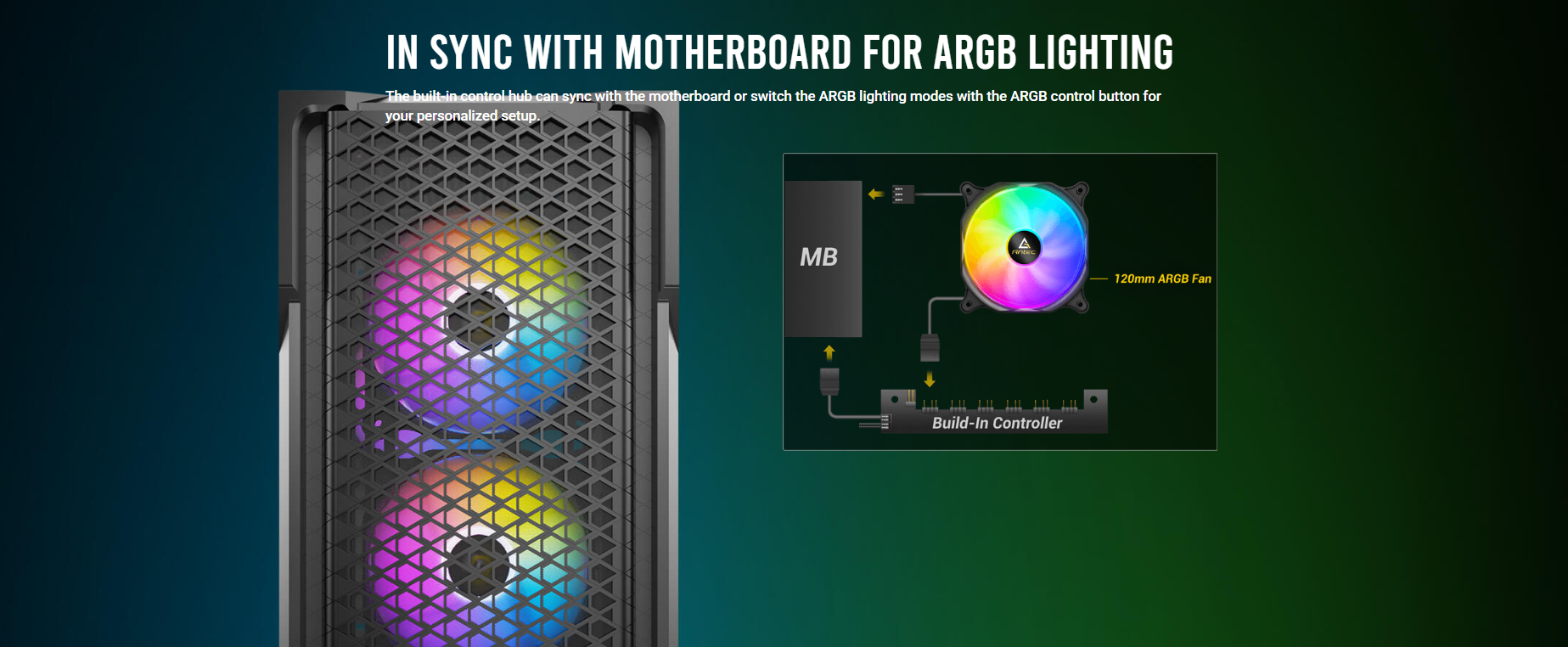

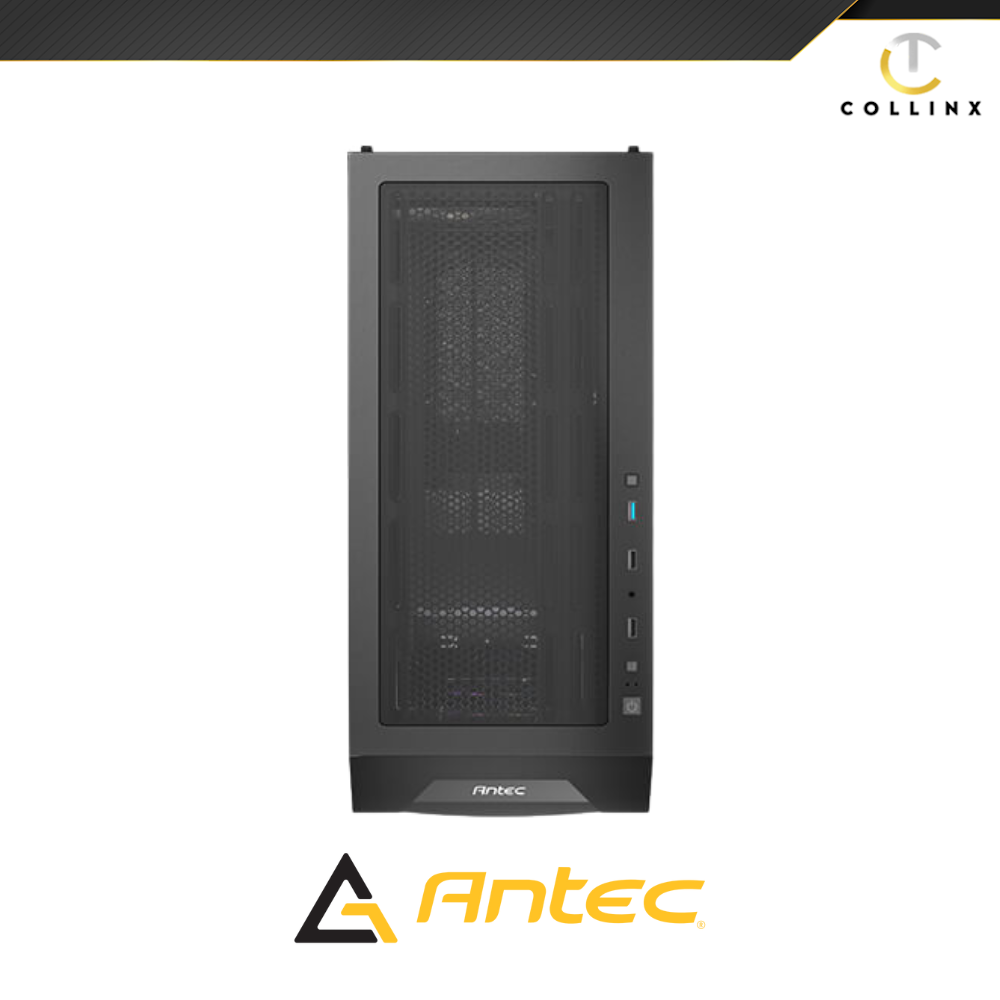

Front Access & Controls Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO

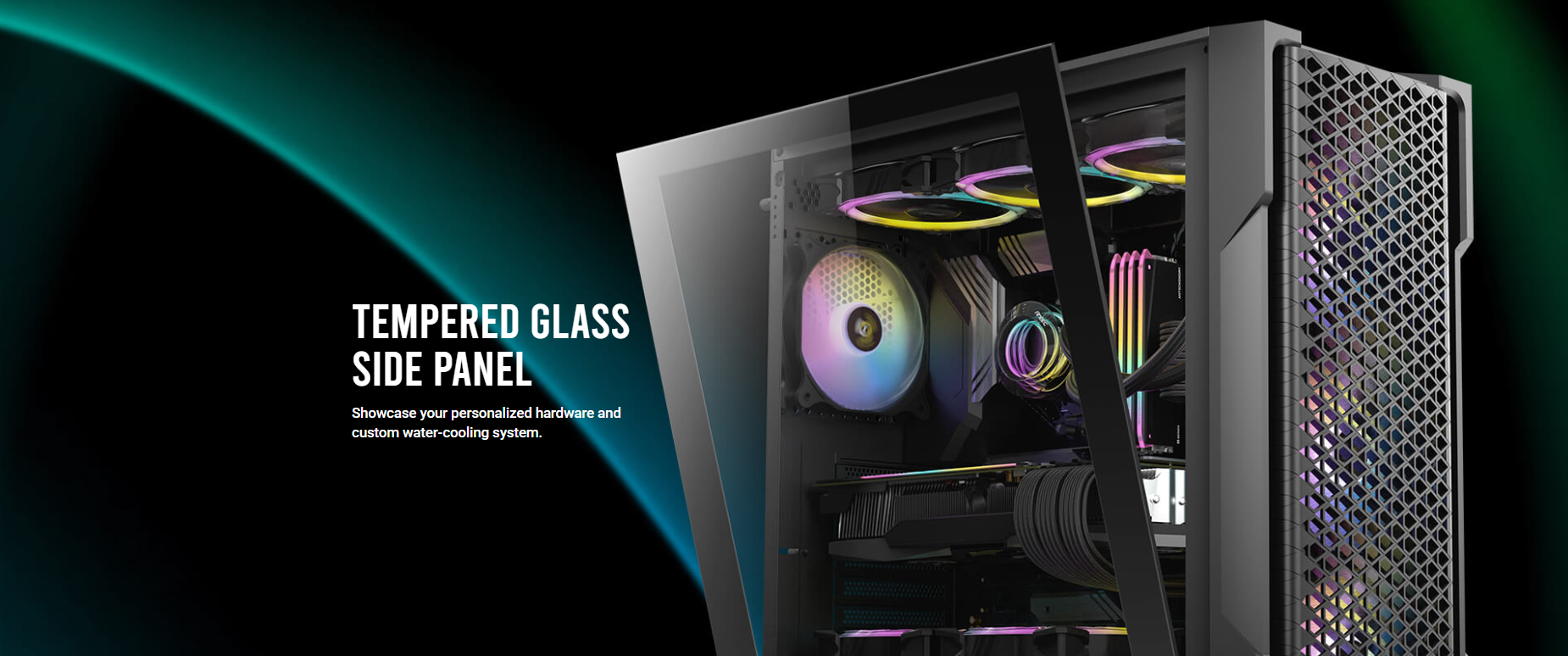

Side Panel 4MM Tempered glass
Drive Bays
Expansion Slots 7
3.5″ / 2.5″ 2 / 1
2.5″ 2

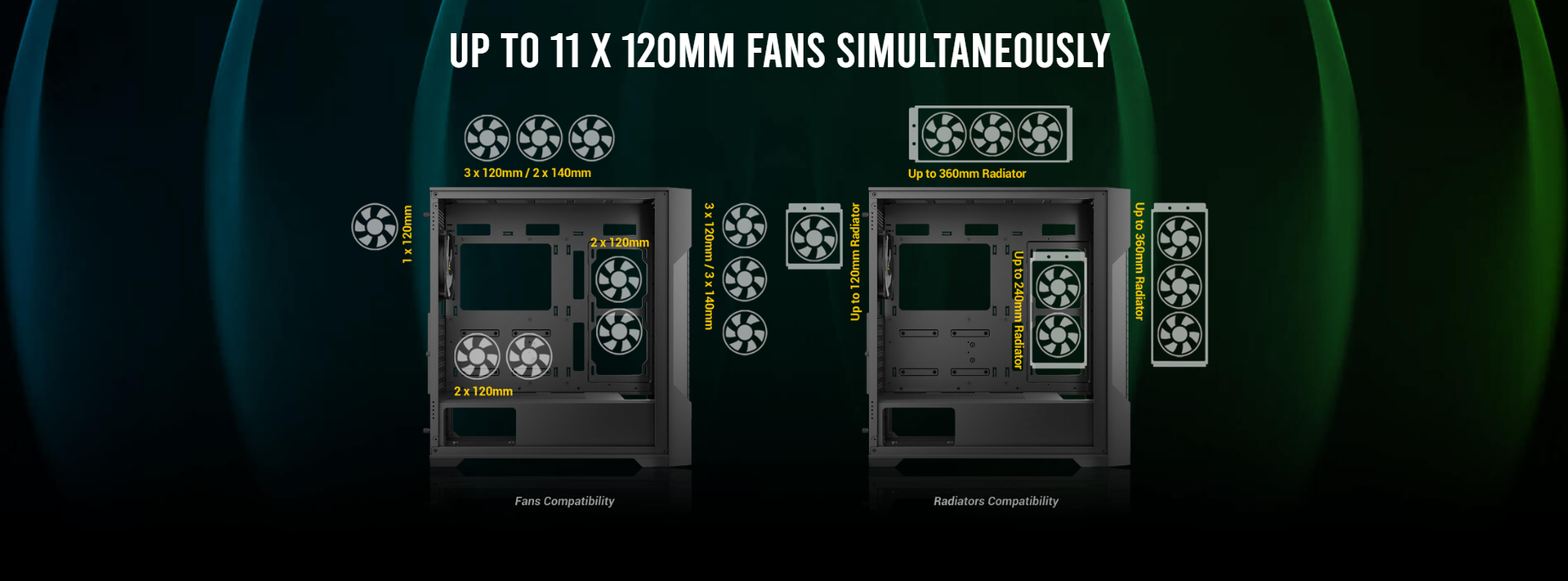

Fan Support
Front 3 x 120mm / 3 x 140mm
Top 3 x 120mm / 2 x 140mm
Power supply 2 x 120mm
Side 2 x 120mm
Rear 1 x 120mm

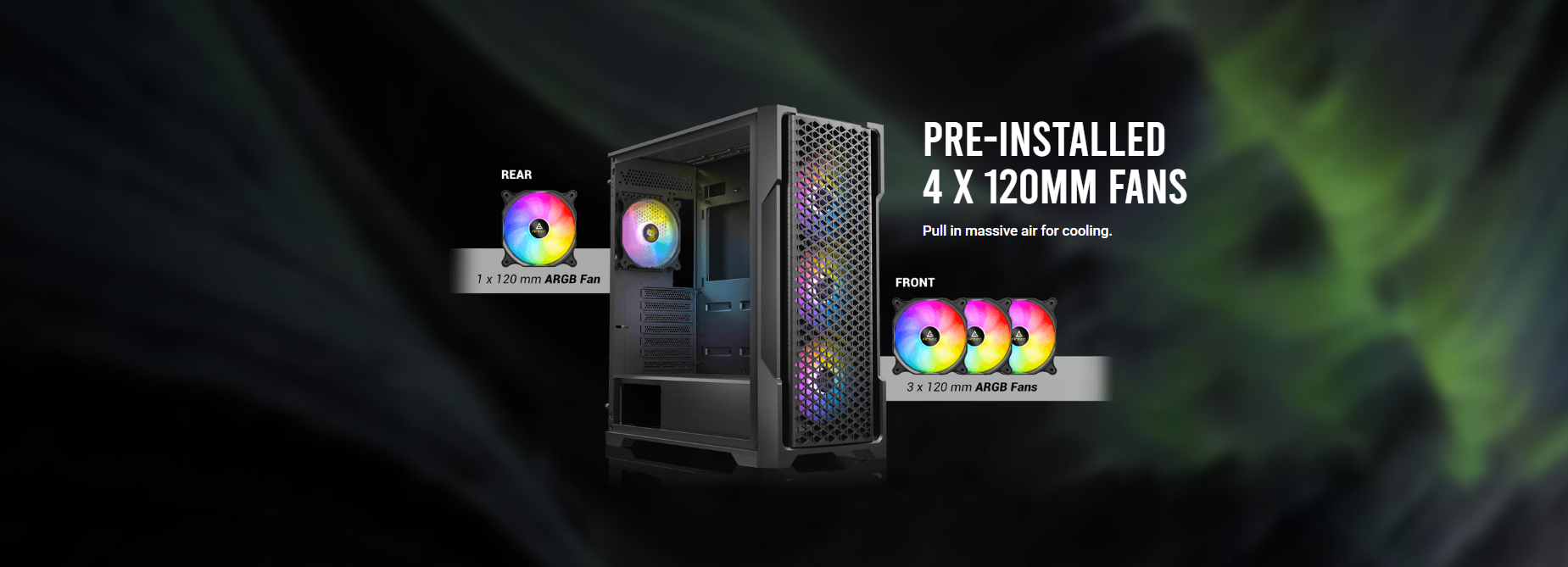

Included Fan(s) 3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear

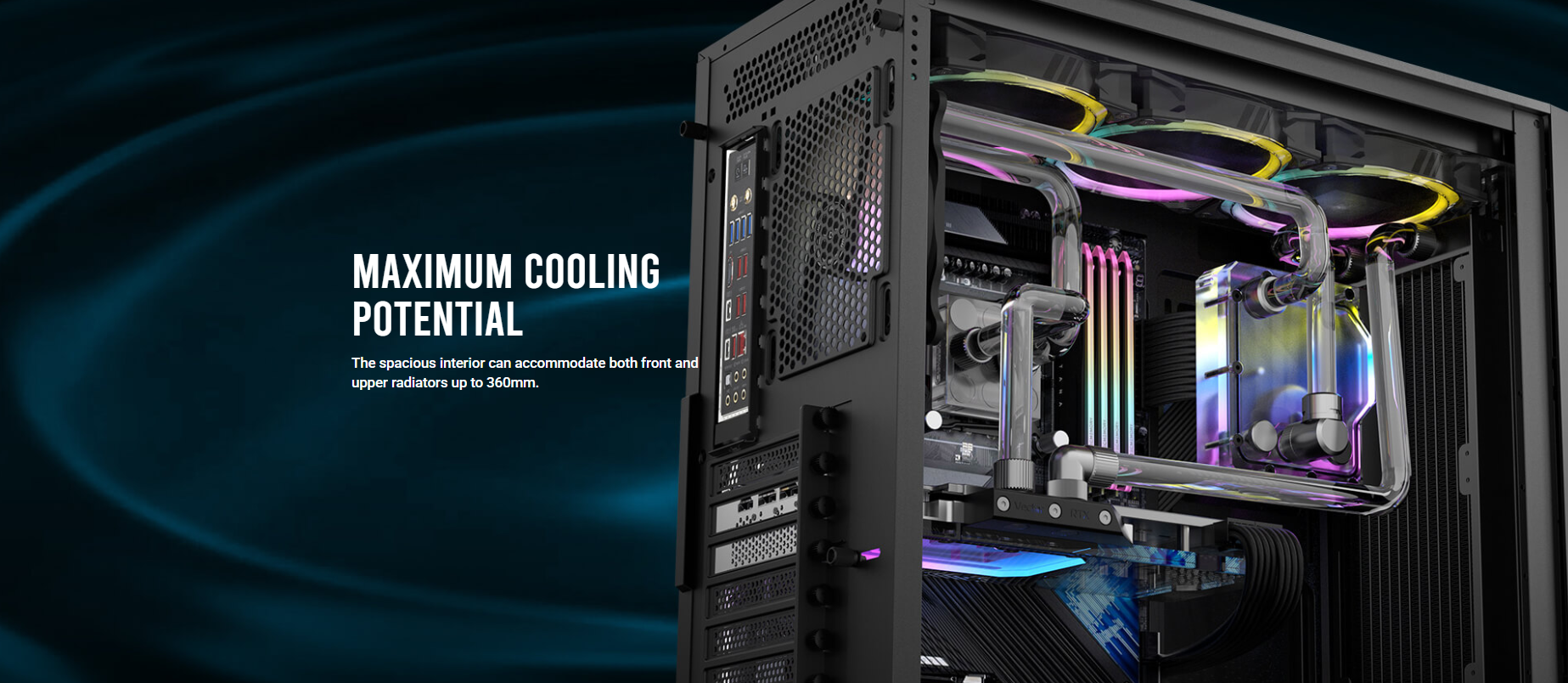

Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Top 120 / 140 / 240 / 280 / 360mm

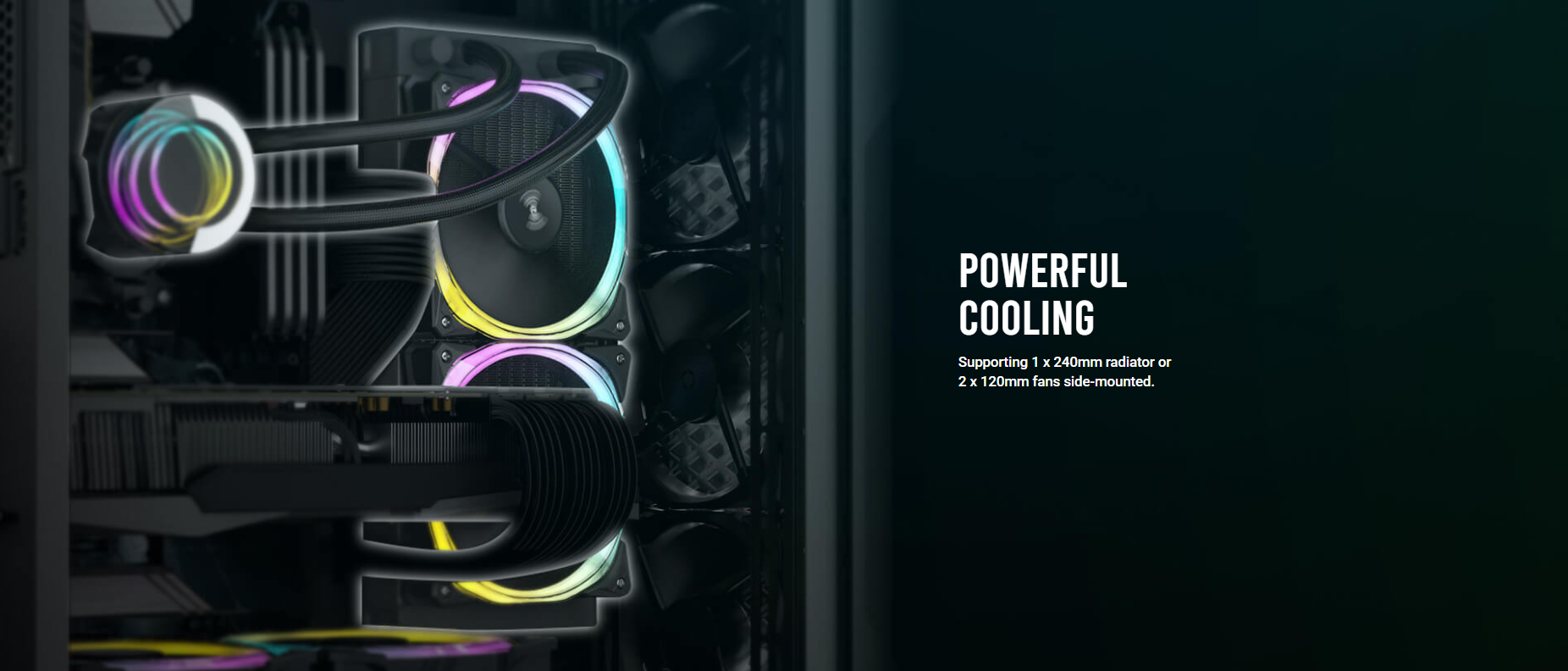

Side 120 / 240mm
Rear 120mm

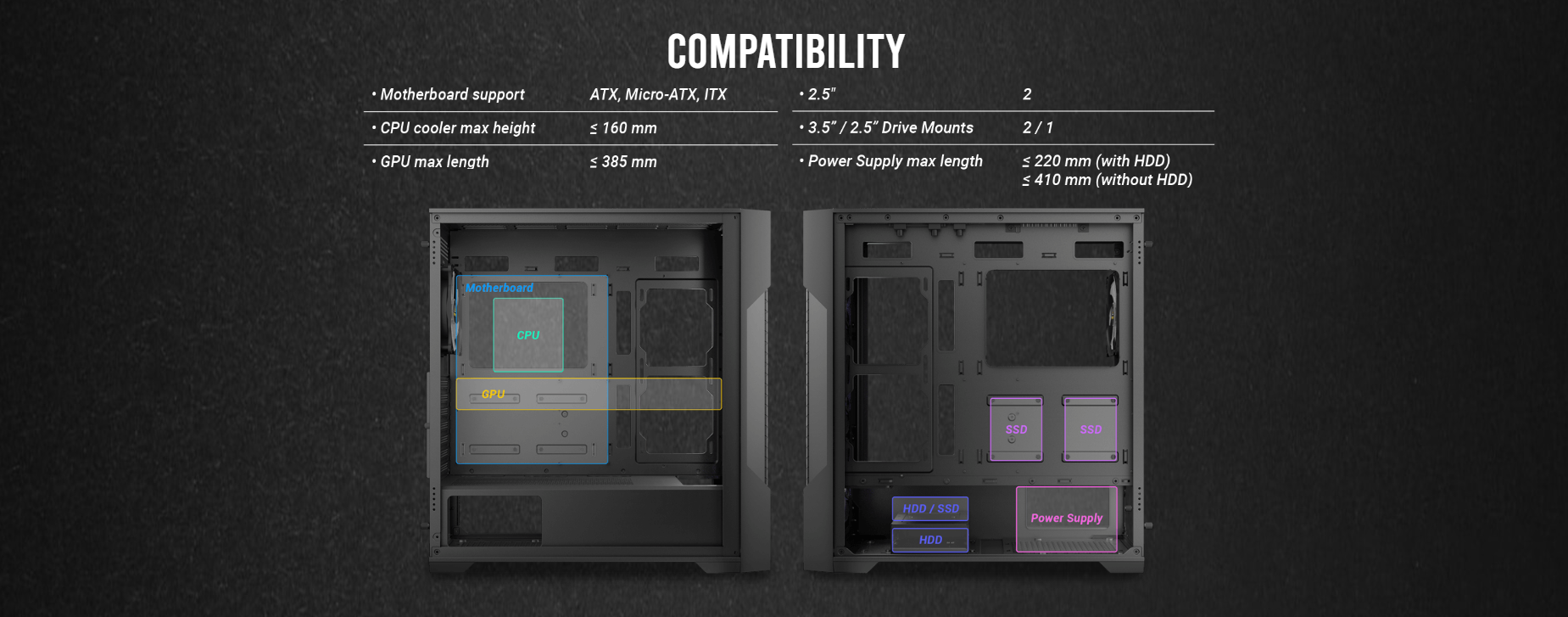

Clearance

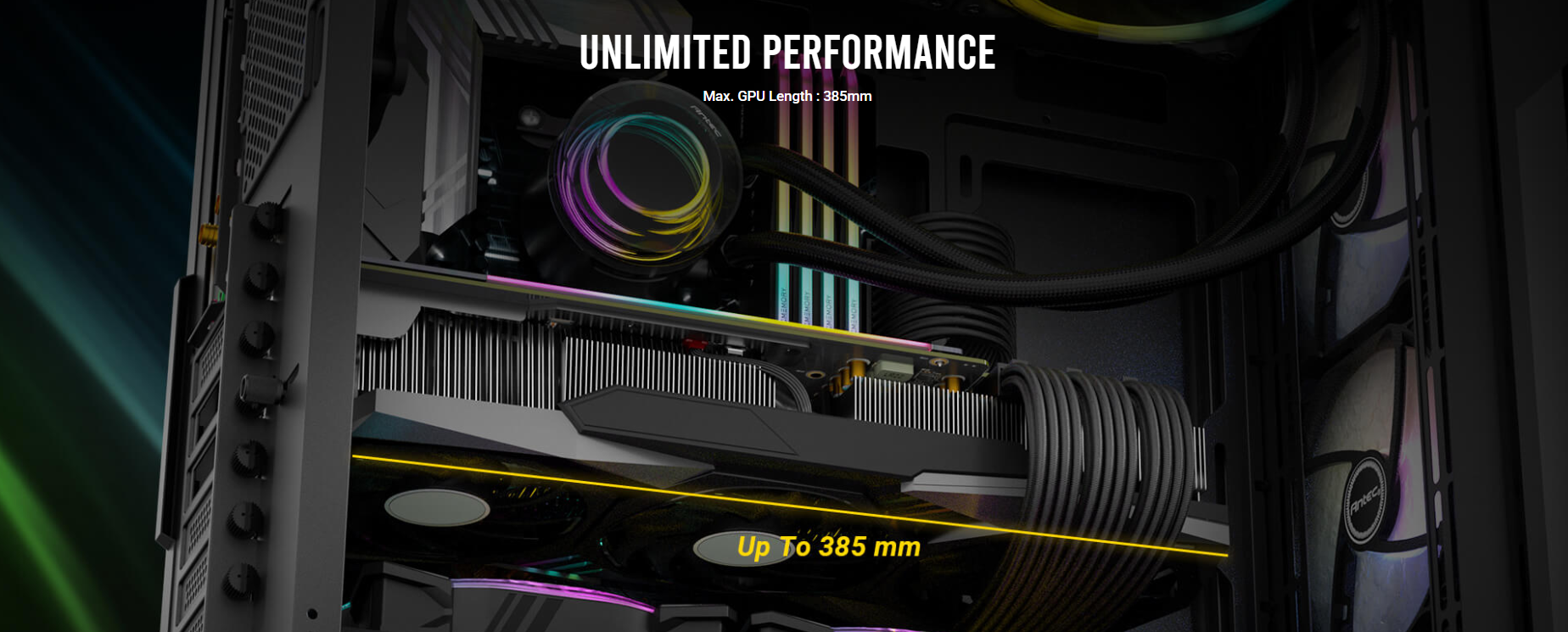

Max GPU Length ≤ 385mm
Max CPU Cooler Height ≤ 160mm
Max PSU Length (Include cable) ≤ 220mm(with HDD)

(Include cable) ≤ 410mm(without HDD)

Miscellaneous
Dust Filter Front / Top / Bottom / Right Hand Side
Net Weight 6.77 Kgs
Gross Weight 7.93 Kgs
Warranty 1 Year
UPC# 0-761345-10063-2



Dimensions : 473 x 210 x 486 mm (DxWxH)  Form Factor : Mid Tower  Materials : Steel+ Plastic  Main board Support : ATX, Micro-ATX, ITX  Front Access & Controls : Power, Reset, LED Control Button,  C!O  Side Panel  Expansion Slots  Cooling Support  O·  Radiator Support  1 x USB3.0, 2 x USB2.0, MIC/HD-AU : 4mm Tempered Glass  : 7; Drive bays:  3.5″ I 2.5″ x 2 I 1 ;  2.5″ X 2  : Front: 3x 120/ 3x 140mm;  Top: 3 x 120 / 2 x 140mm;  PSU Shroud : 2 x 1 2  Side: 2 x 120mm;  Rear: lx120  : Front : 120 /140 /240 /280 /  360mm;  Top: 120 / 140 / 240 / 280 / 360mm;  Side : 1201240mm  Rear: 120mm  Max GPU Length : ::; 385mm  Max CPU Cooler Height: ::; 160mm  PSU Support : s 220mm ( with HDD)  Dust Filter  Gross Weight  s 410mm ( without HDD)  : Front / Top/ Bottom/  Right Hand Side  : 7.93 Kg
