SPECIFICATIONS
| main spec |
| Dimensions |
522 x 230 x 522 mm (DWH) |
| Form Factor |
Full Tower |
| Materials |
Steel + Plastic + Glass |
| Mainboard Support |
E-ATX, ATX, Micro-ATX, ITX |
| Front Access & Controls |

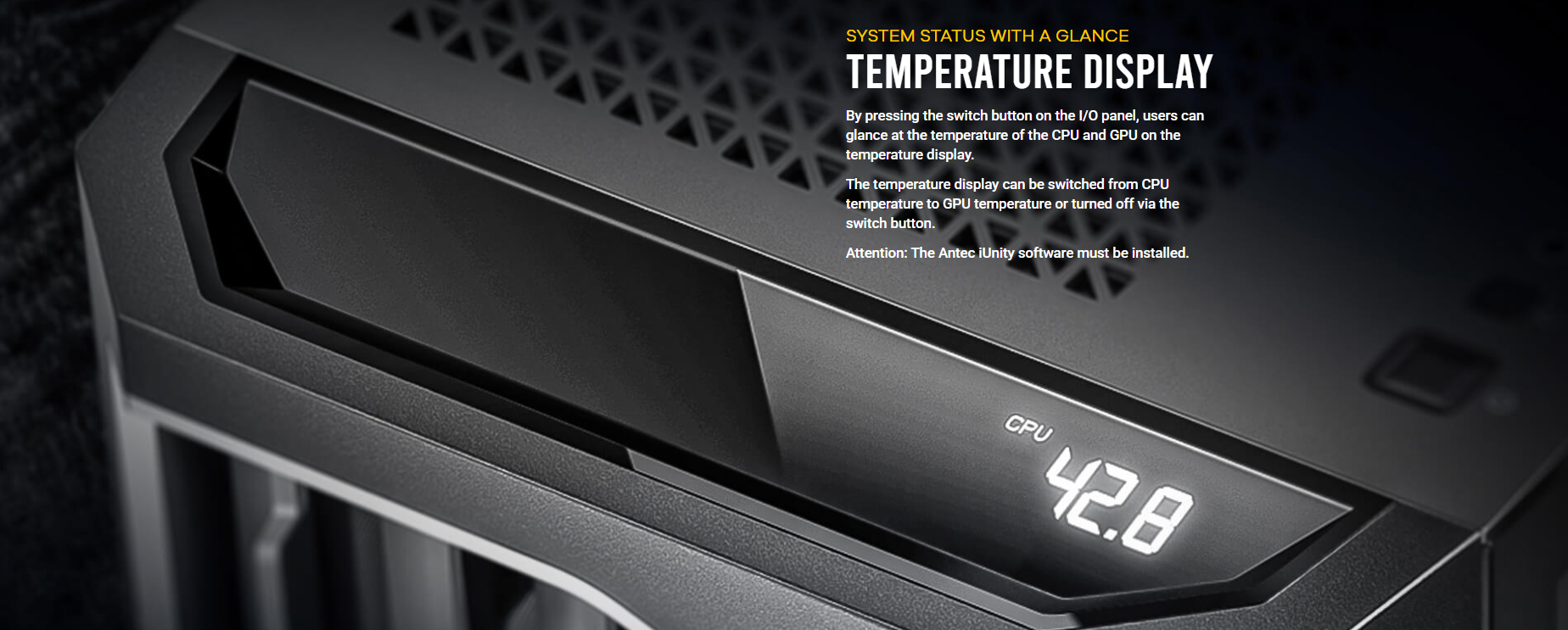

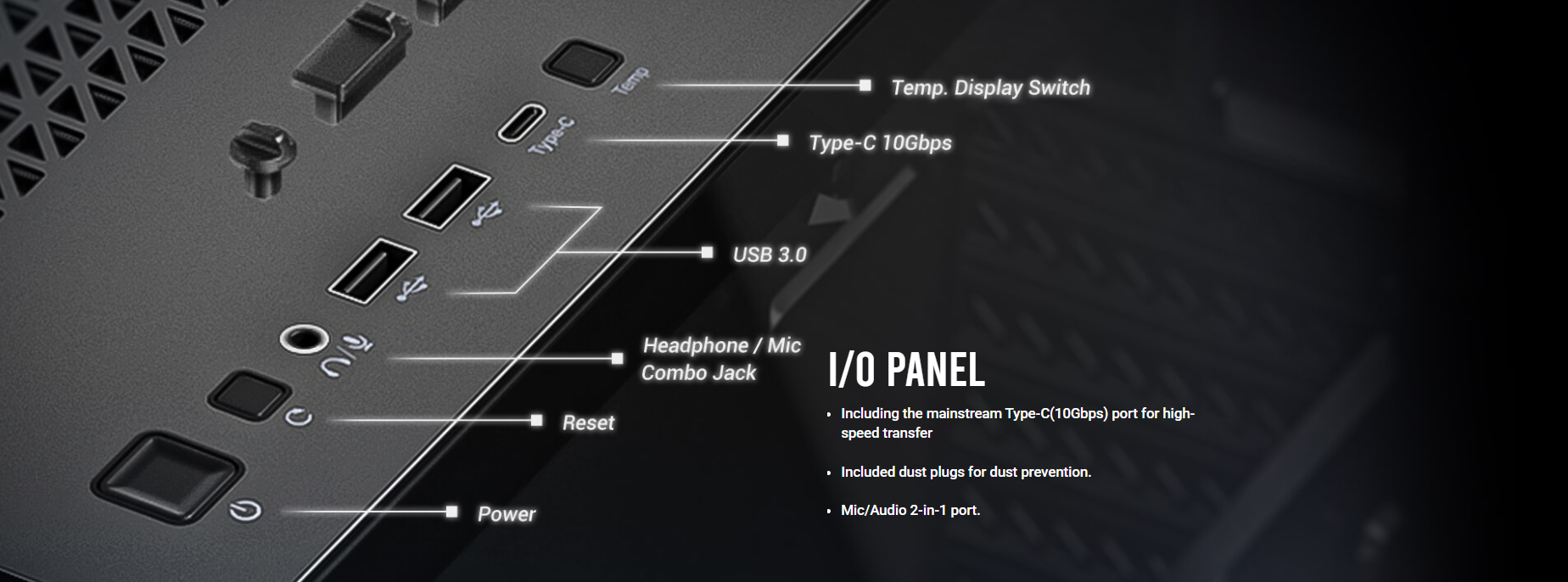

Power, Reset , USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1 |

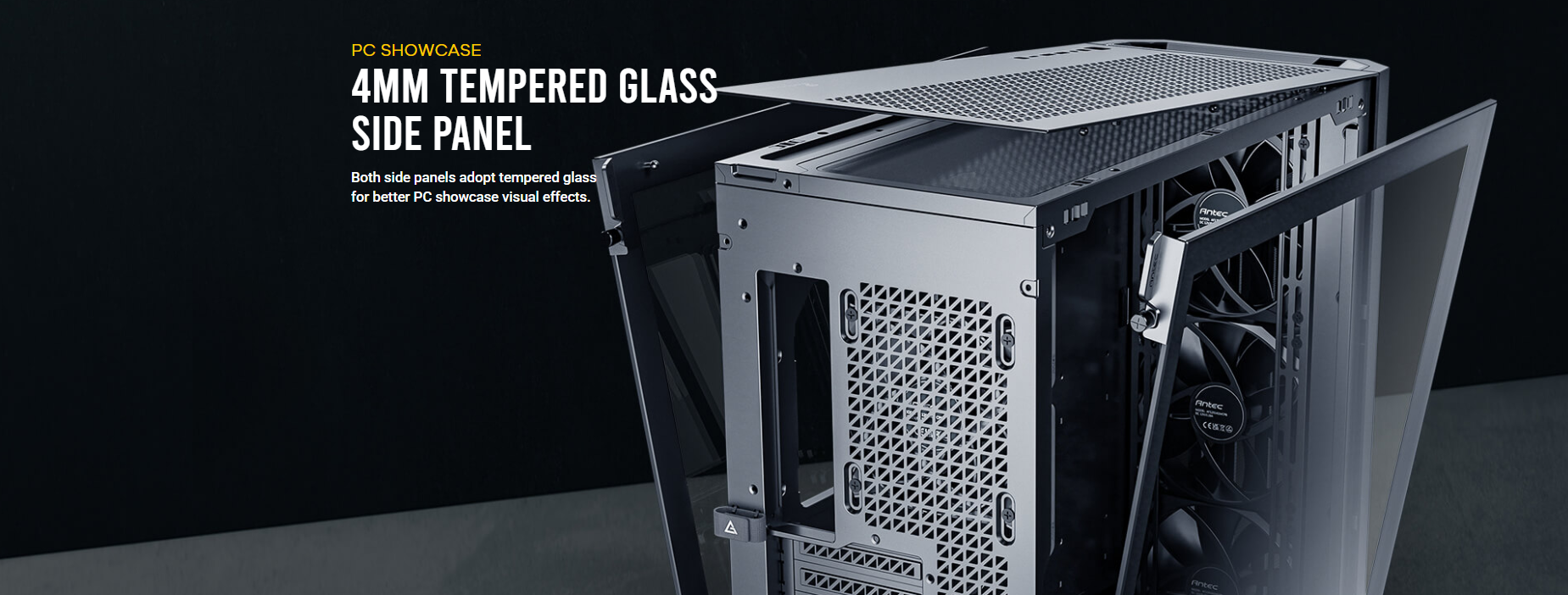

| Side Panel |
4mm Tempered Glass(Both Sides) |
|

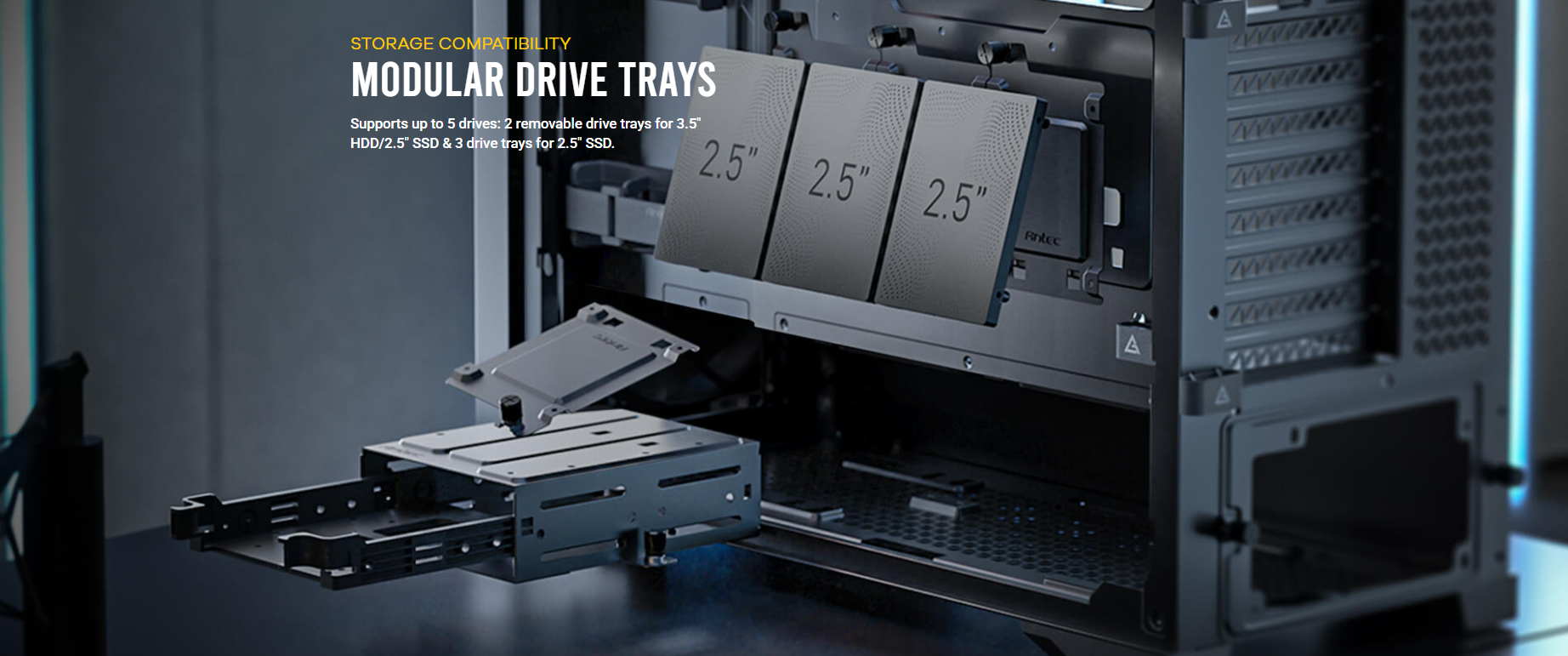

| Drive Bays |
| Expansion Slots |
8 |
| 3.5″ / 2.5″ |
2 / 2 |
| 2.5″ |
3 |
|
| Fan Support |
| Front |
3 x 120mm / 3 X 140mm |
| Top |
3 x 120mm / 3 x 140mm |
| Power Supply Shroud |
3 x 120mm |
| Rear |
1 x 120mm |

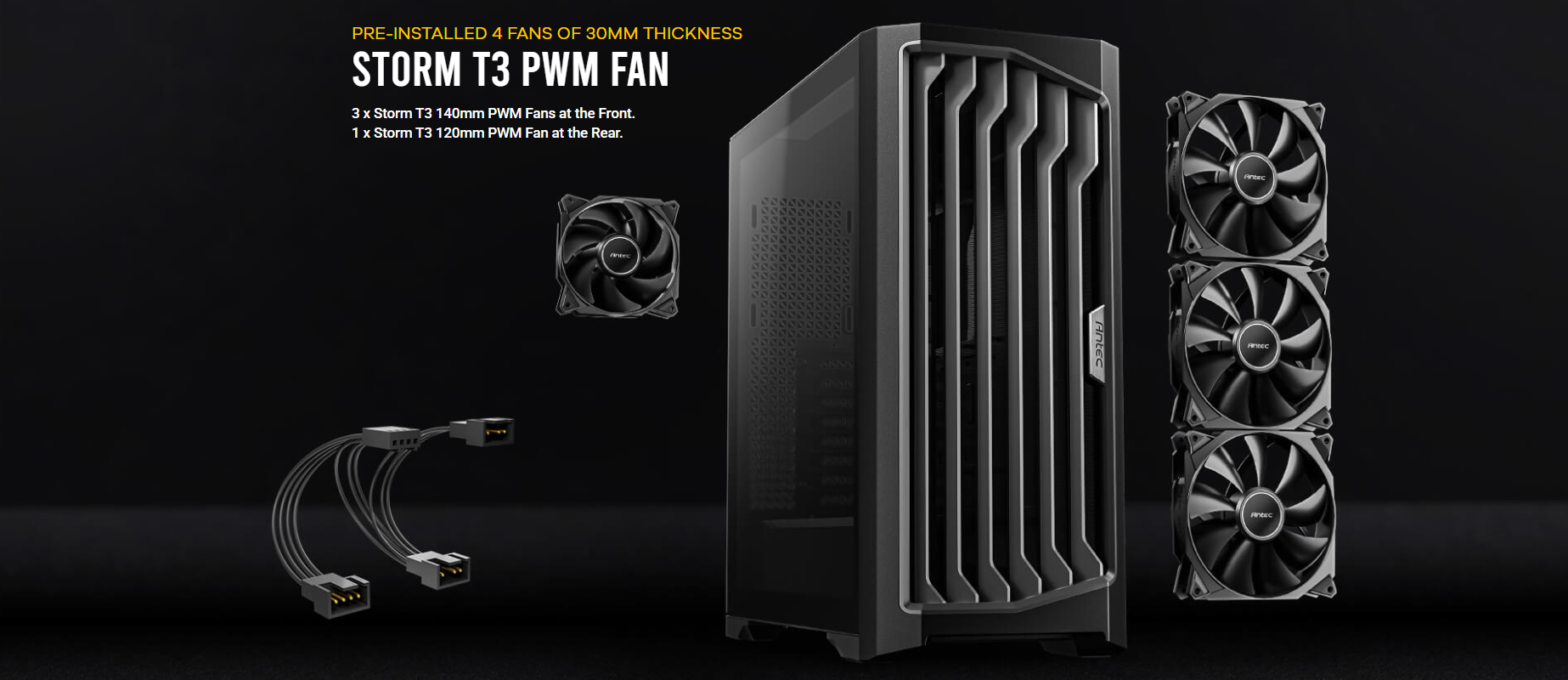

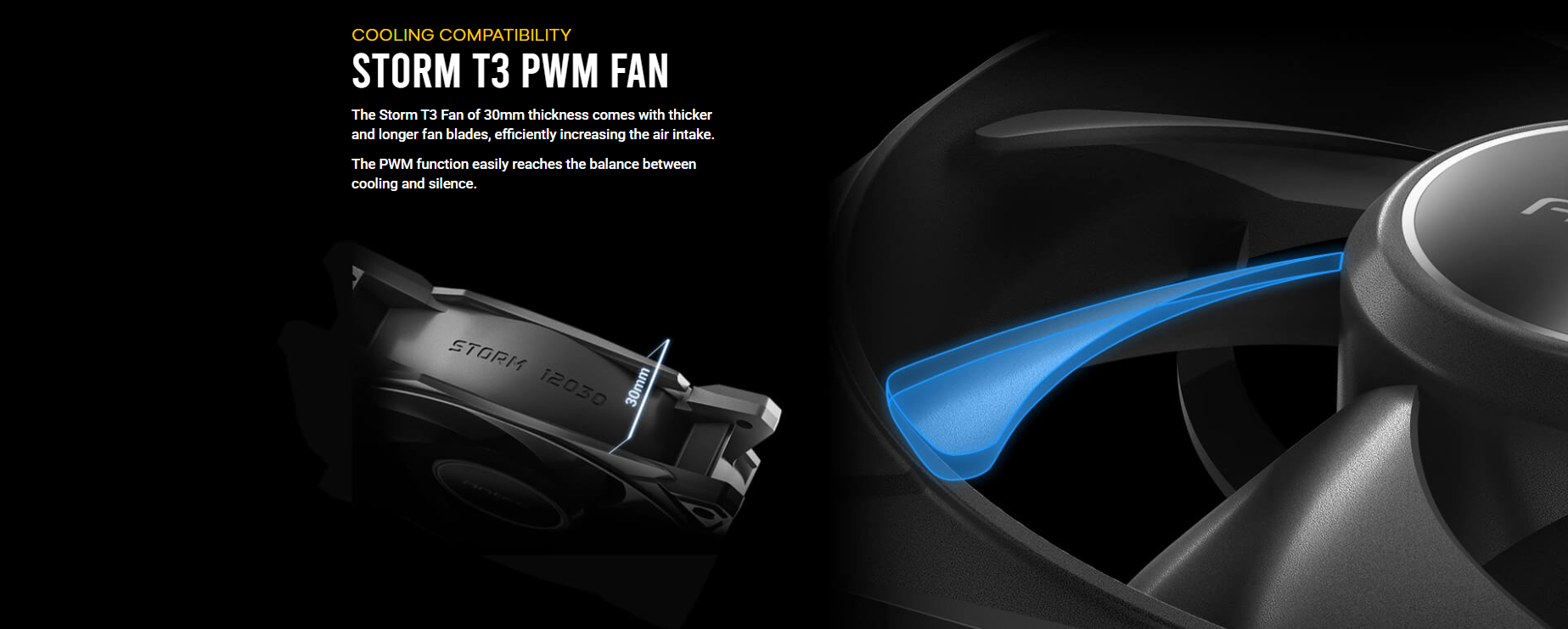

| Included Fan(s) |
3 x 140 x 30mm PWM fans in front + 1 x 120 x 30mm PWM fan in rear
Pre-installed Storm T3 PWM fan specs vary from the retail version |
|

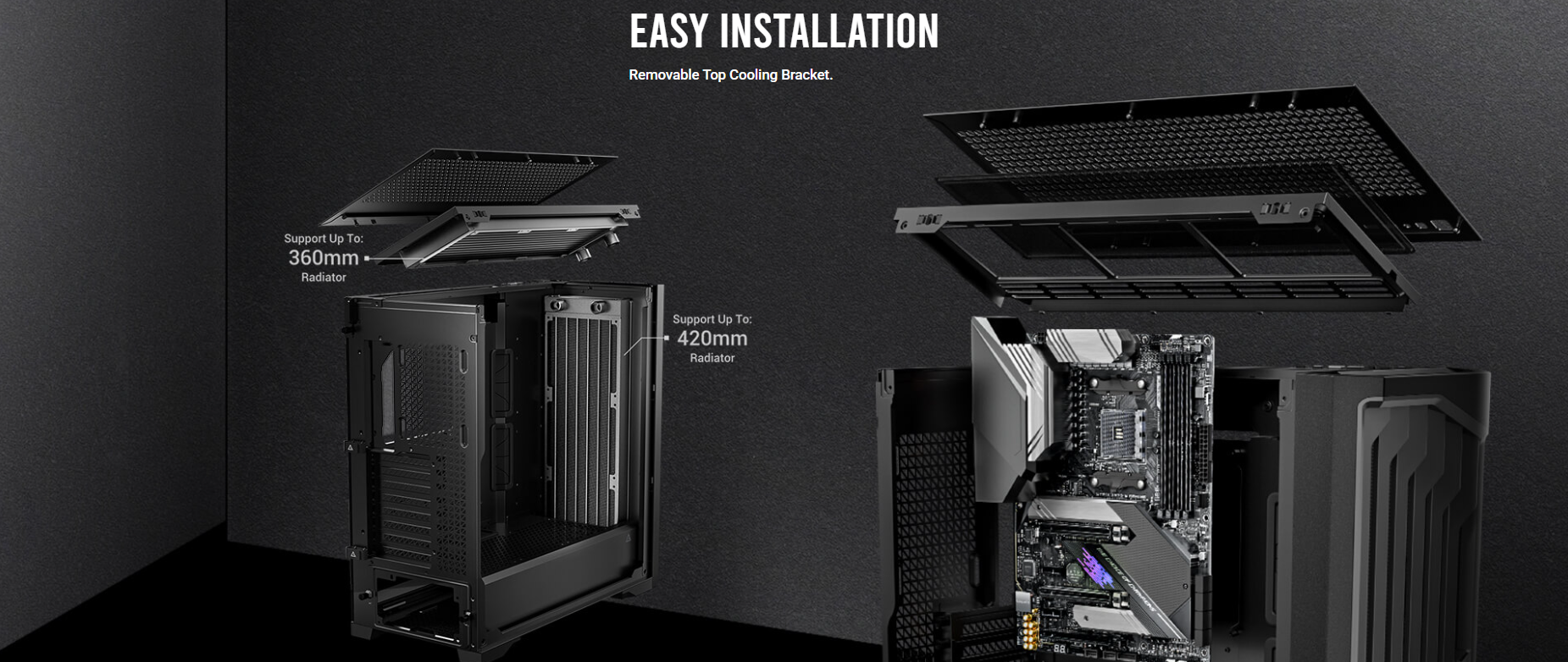

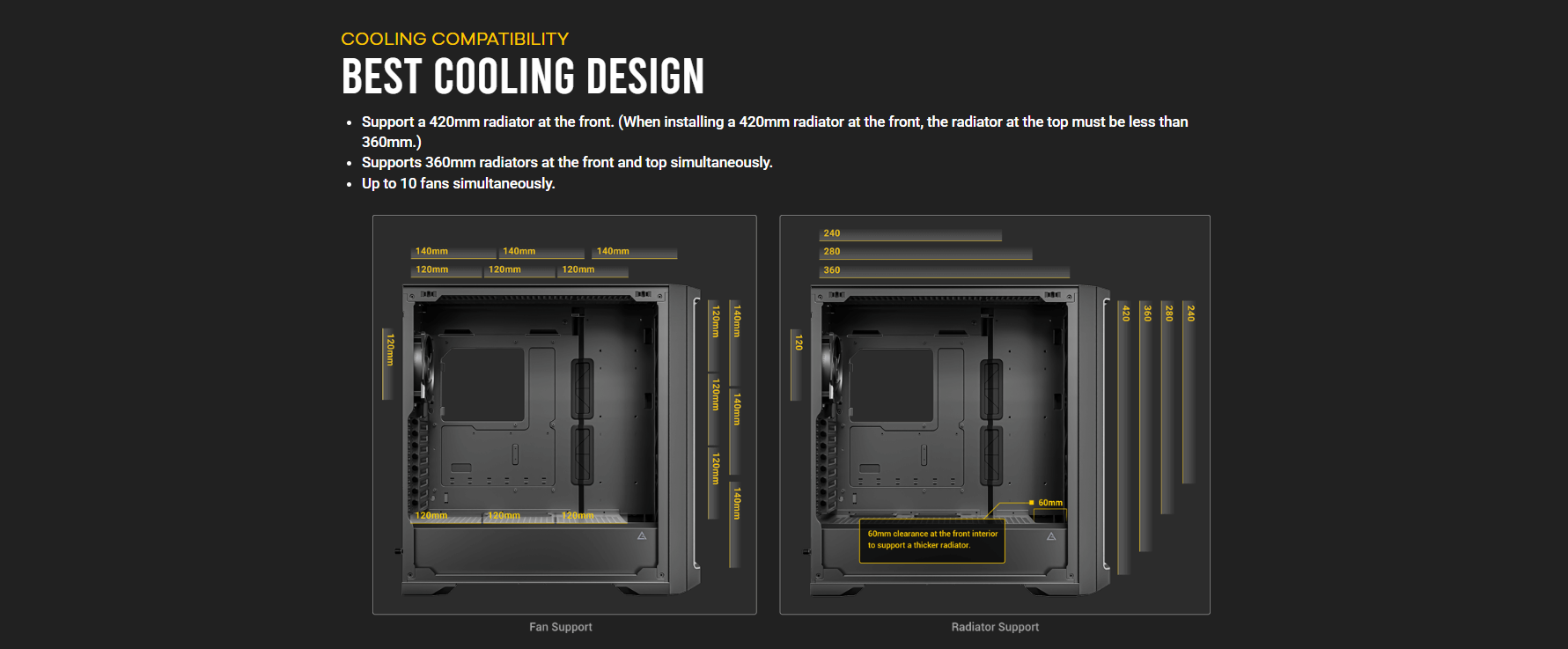

| Radiator Support |
| Front |
120 / 140 / 240 / 280 / 360 / 420mm |
| Top |
120 / 140 / 240 / 280 / 360mm |
| Rear |
120mm |
|

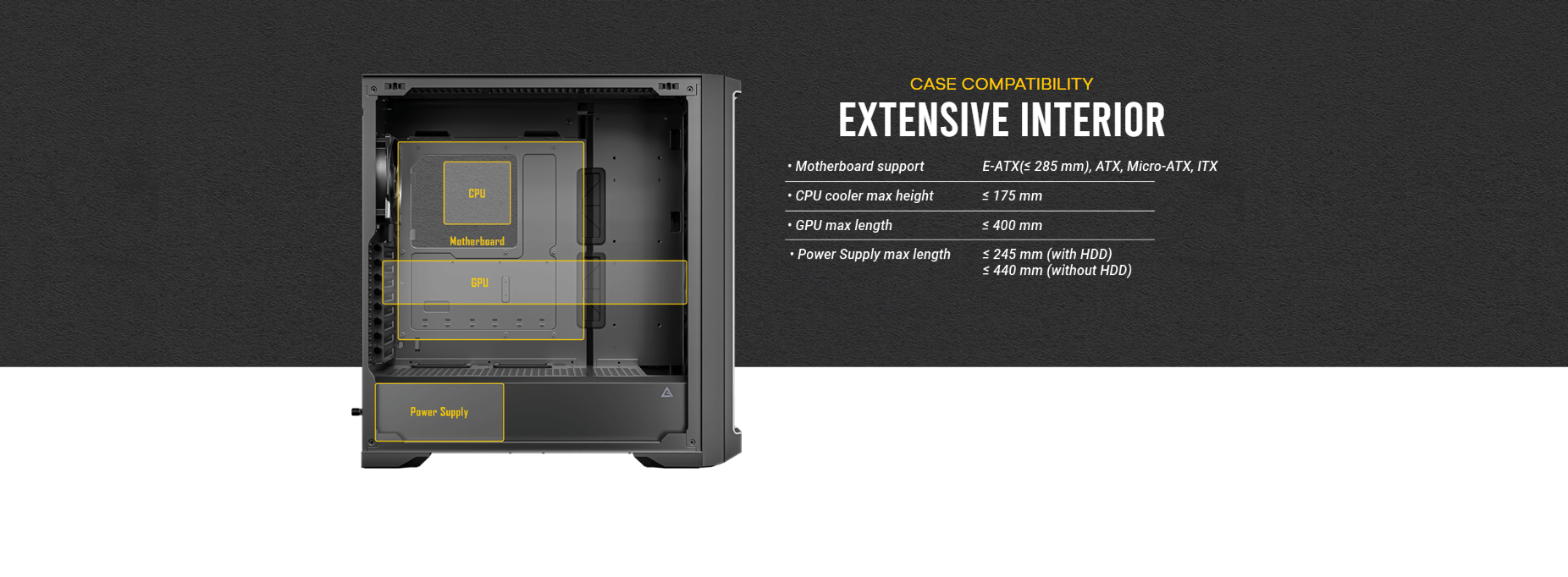

| Clearance |
| Max GPU Length |
≤ 400mm |
| Max CPU Cooler Height |
≤ 175mm |
| Max PSU Length |
(Include cable) ≤ 245mm(with HDD)
(Include cable) ≤ 440mm(without HDD) |
|
| Miscellaneous |

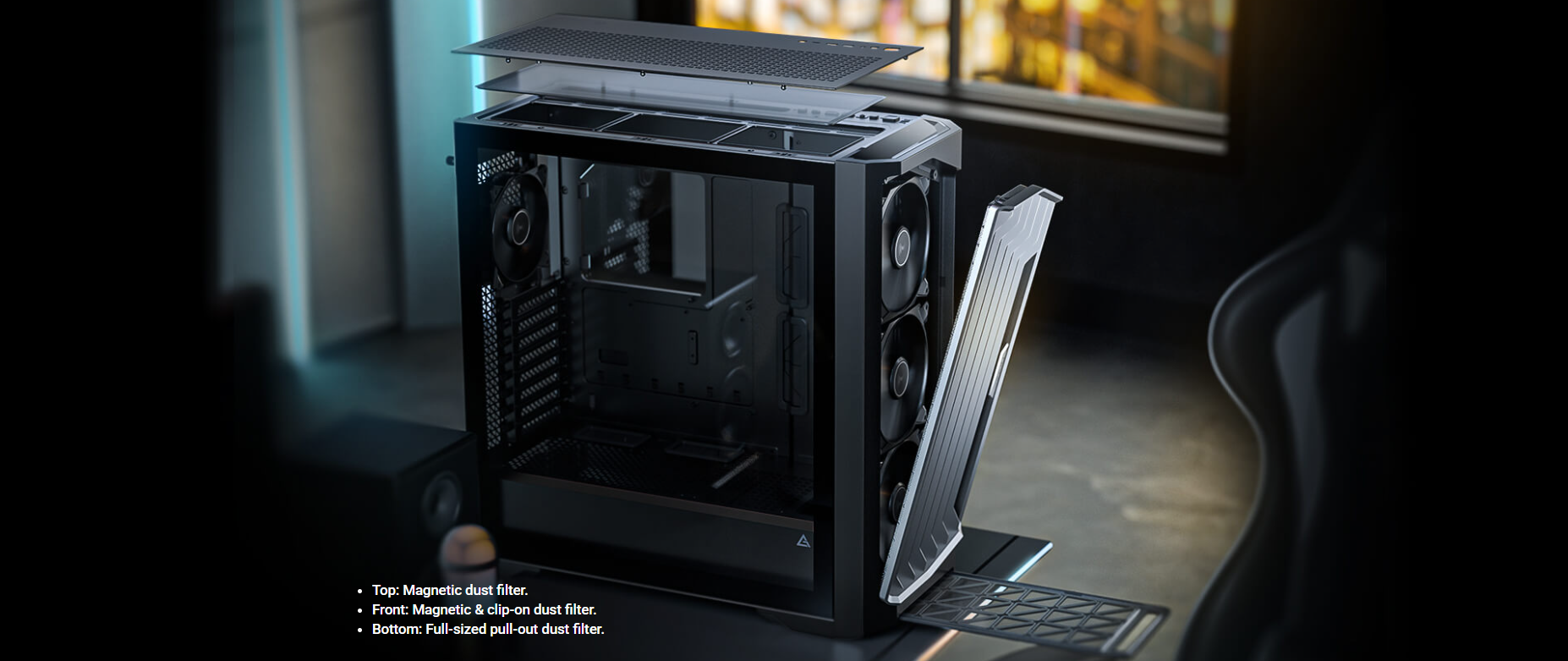

| Dust Filter |
Front / Top / Bottom |
| Net Weight |
12.55Kgs |
| Gross Weight |
14.85Kgs |
| Warranty |
2 Years |
| UPC# |
0-761345-10088-5 |
|
Dimensions Form Factor : 522 x 230 x S22mm (DWH) : Full Tower Materials : Steel+ Plastic+ Glass Ma inboard Support : E-ATX, ATX, M-ATX, ITX Front Access & Controls: Power, Reset, USB3.0 x 2, Type-C 1 0Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1 Side Panel Expansion Slots Cooling Support Radiator Support : 4mm Tempered Glass : 8; Drive bays: 3.5″ I 2.5 x 2 I 2; 2.5″x 3 : Front : 3 x 1 20mm/3 x 140mm; Top: 3 x 120mm/3 x 140mm; Power Supply Shroud: 3 x 1 20mm; Rear: 1 x 120mm : Front: 120 / 140 / 240 /280 / 360 / 420mm; Top: 120 / 140/ 240 / 280 / 360 mm Rear: 120mm Max GPU Length : :,; 400mm Max CPU Cooler Height : :,; 175mm Max PSU Support : (Include cable) s 245mm (with HDD) (Include cable) s 440mm (without HDD) Dust Filter Gross Weight : Front/Top/Bottom : 14.8Skg
