Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
-
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
-

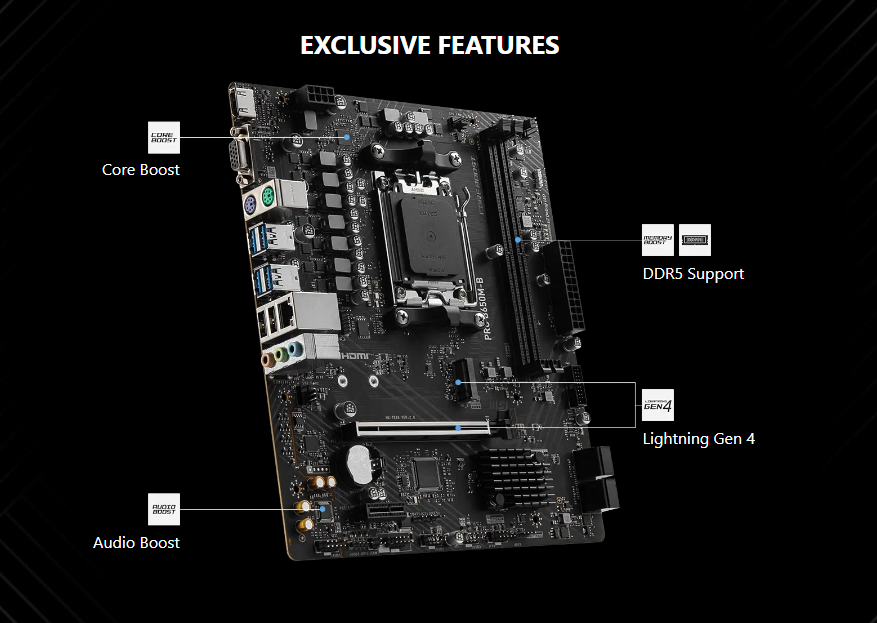

Core Boost : With premium layout and digital power design to support more cores and provide better performance
-

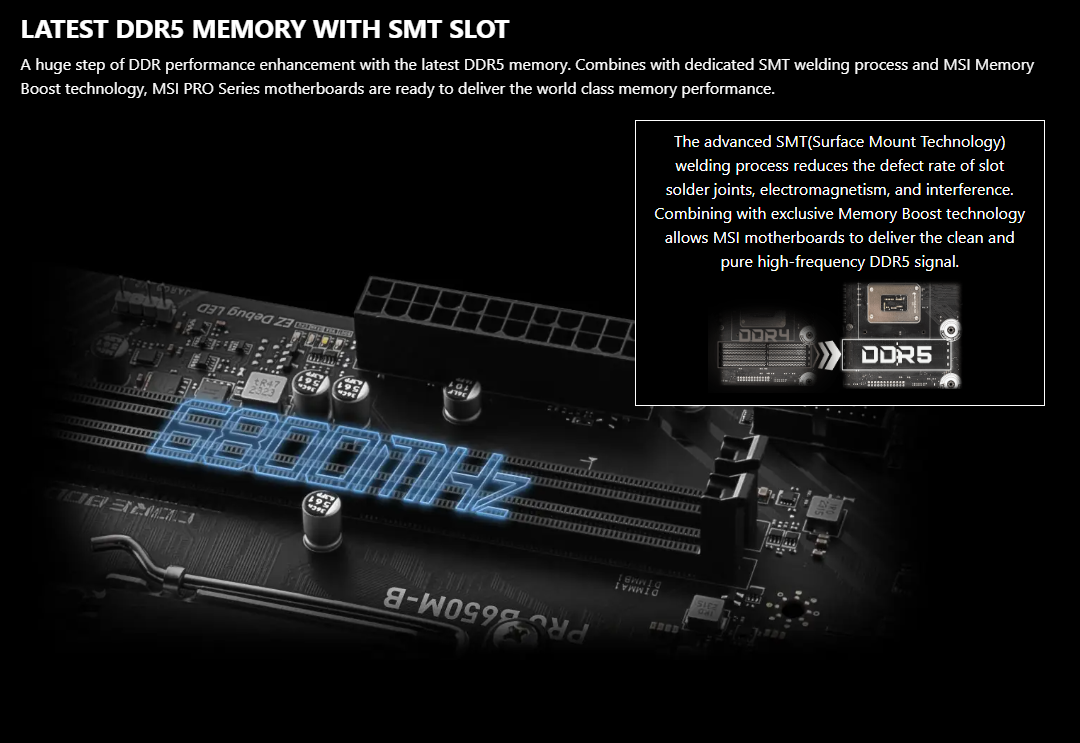

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
-
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
-
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
-
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
-

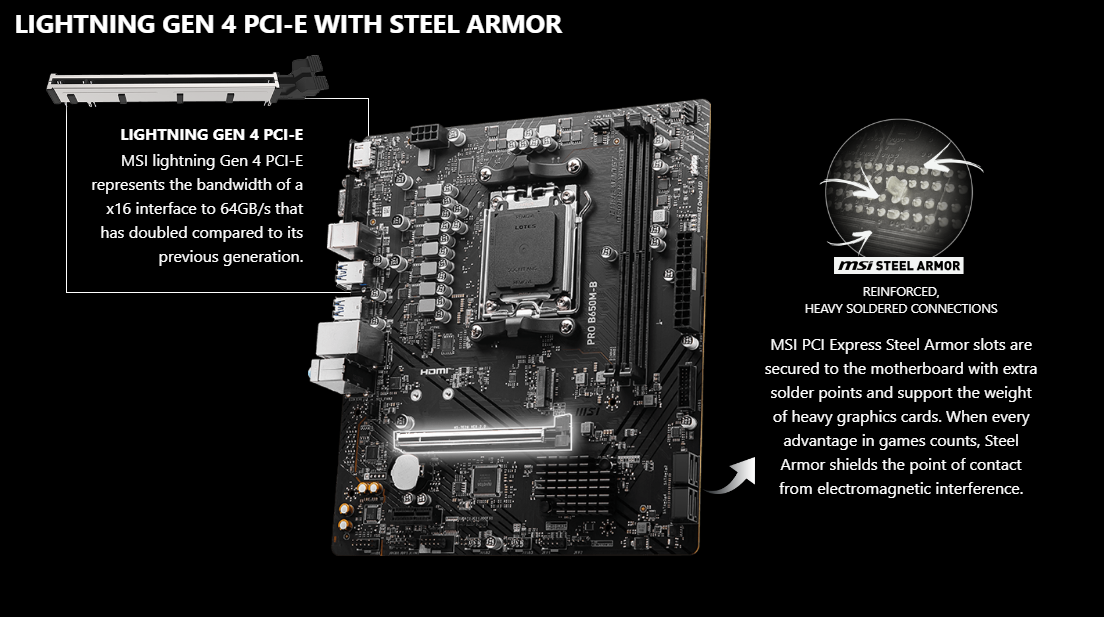

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
SPECIFICATIONS:
| CHIPSET | AMD B650
|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
|
| MEMORY | 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz

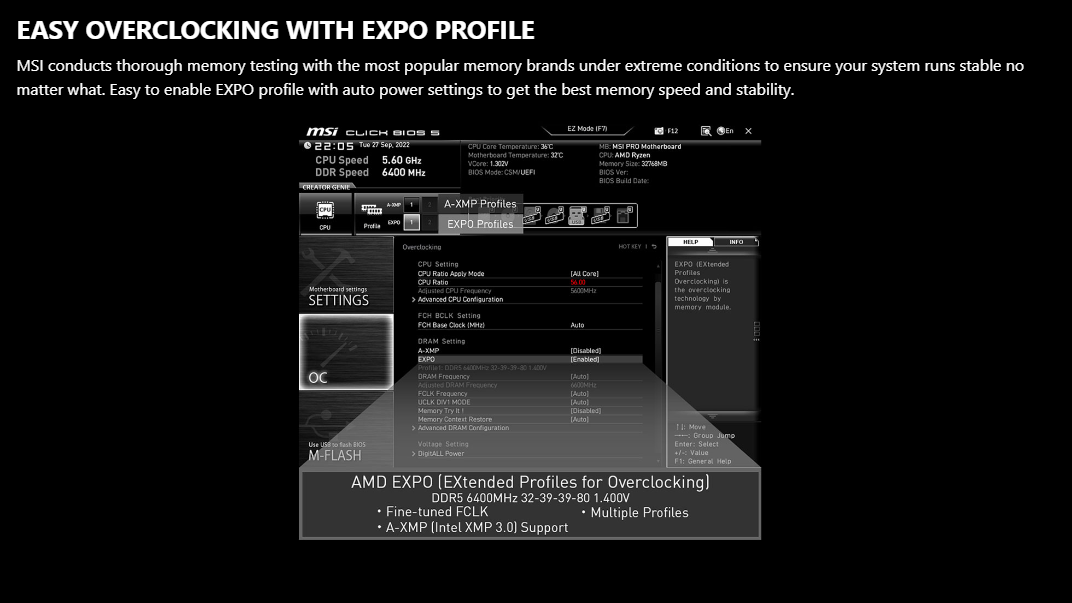

Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
|
| ONBOARD GRAPHICS | 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|

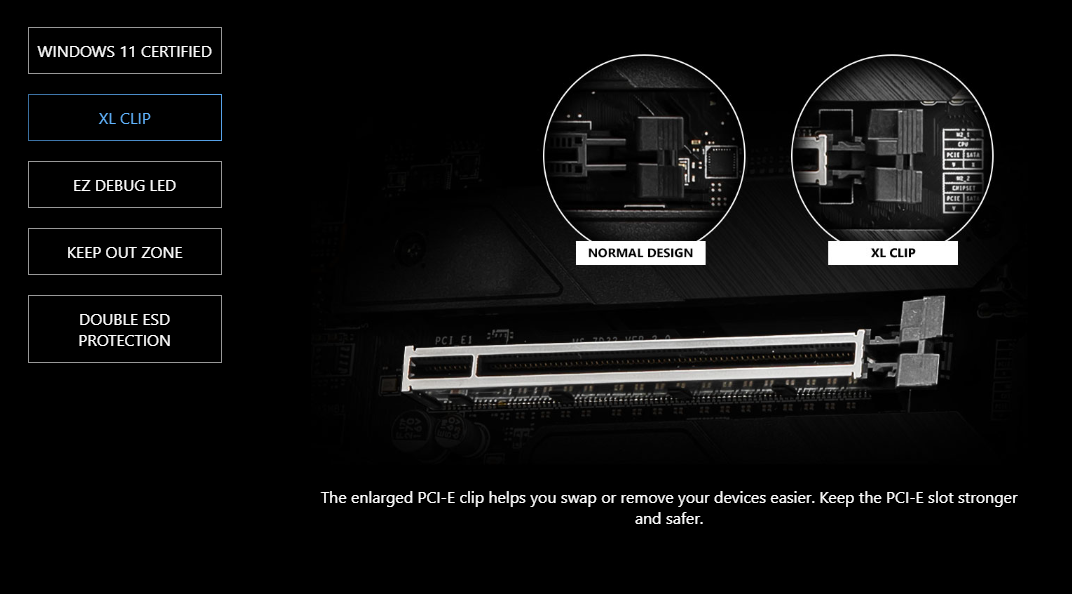

| SLOT | 1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
| AUDIO | Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|

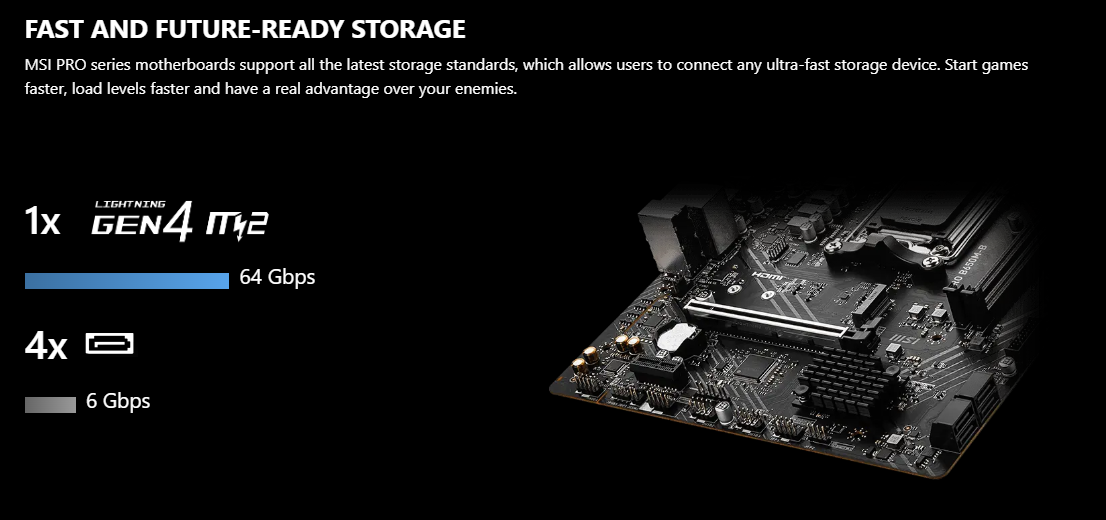

| STORAGE | 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
|
| USB | 2x USB 2.0 (Rear)
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
|
| LAN | Realtek® RTL8125BG 2.5G LAN
|
| INTERNAL IO | 1x Power Connector(ATX_PWR)

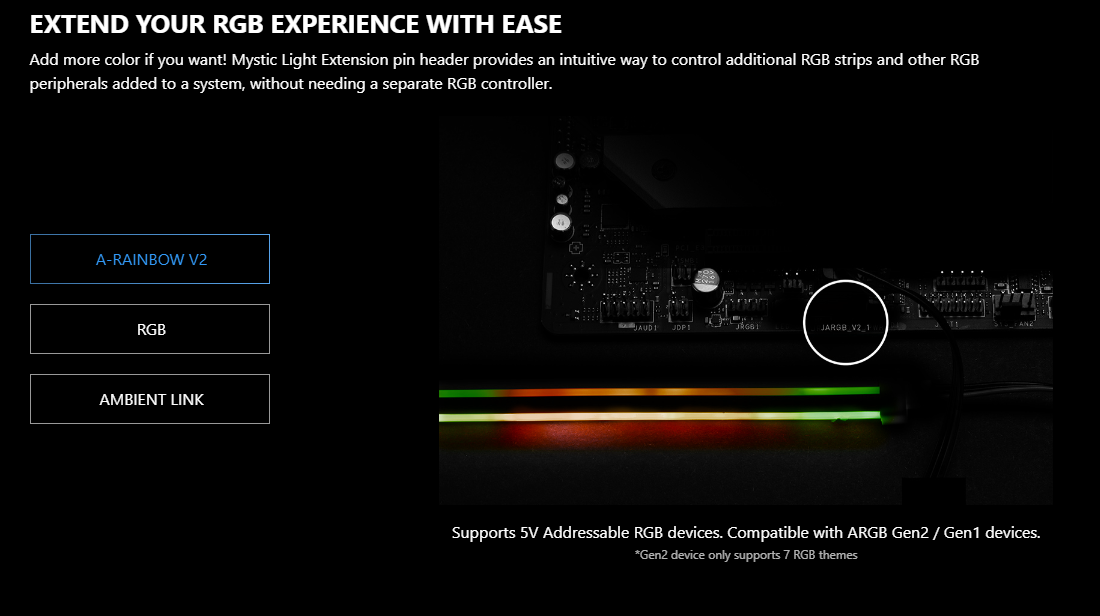

1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
|

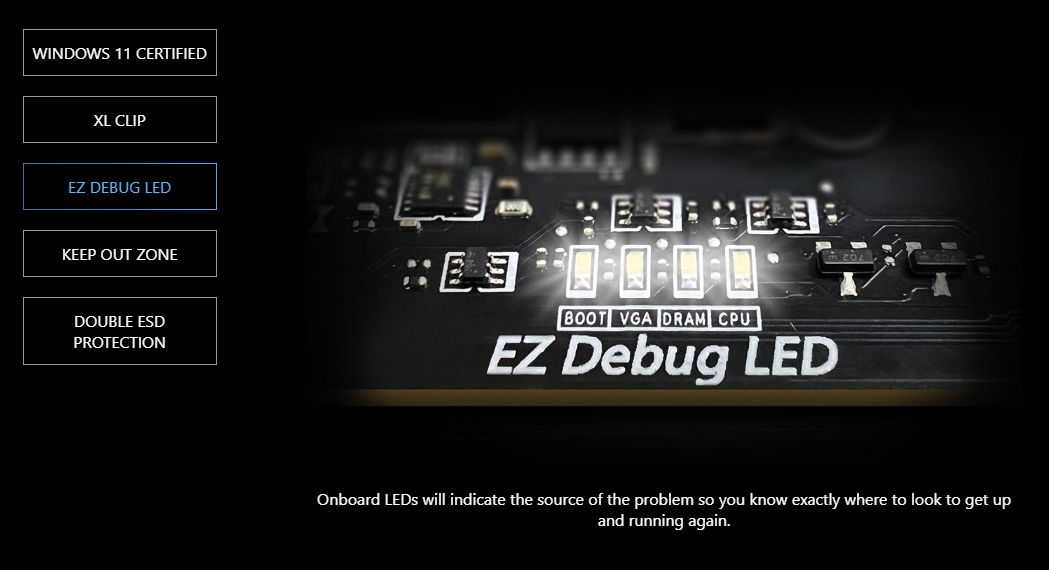

| LED FEATURE | 4x EZ Debug LED
|
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit
|

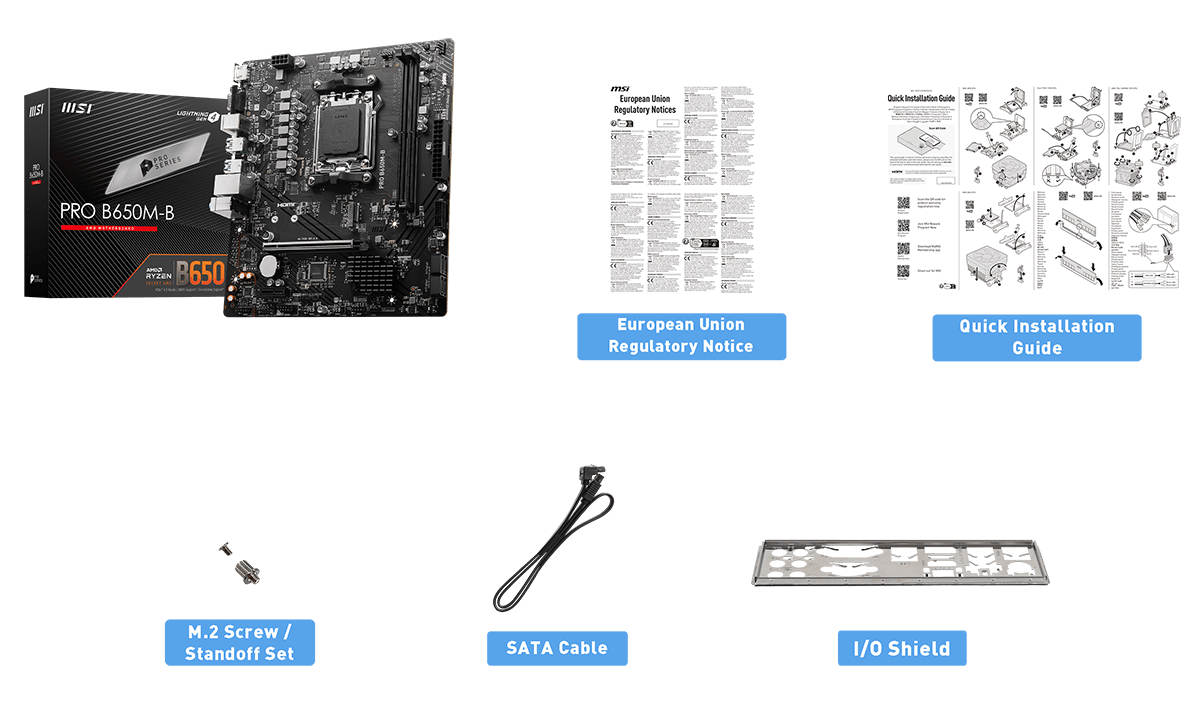

| BOX CONTENT |
|
| PCB INFO | mATX
215mmx243.84mm |
