CA-1R3-00SCWN-00

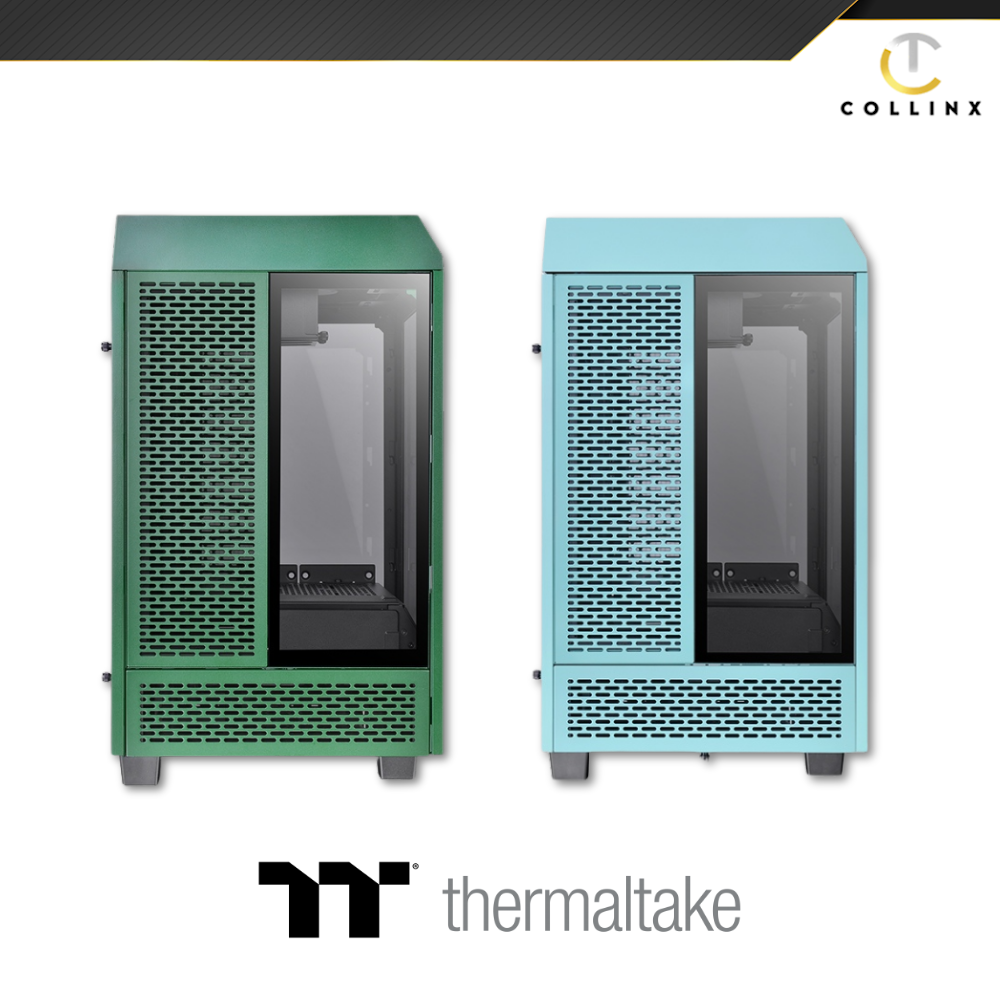

The Tower 100 is a vertically designed mini-ITX chassis with panoramic viewing. It comes with two preinstalled 120mm standard fans and three 4mm tempered glass windows at the front, on left and right side.

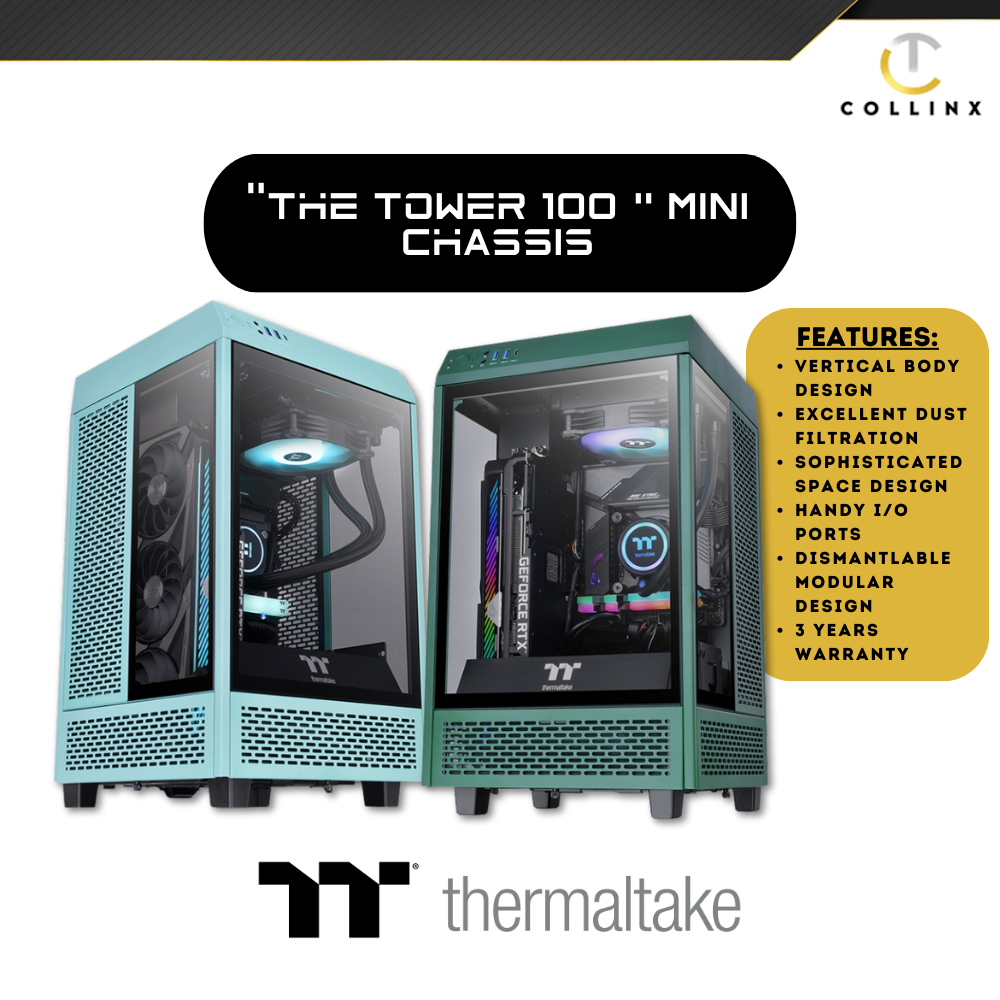

The Tower 100 Mini Chassis
Designed to expand the legacy of The Tower 900 E-ATX Super Tower Chassis, The Tower 100 Racing Green Mini Chassis is the newest member of The Tower Series. It features three 4mm tempered glass windows for a stunning view and two preinstalled 120mm standard fans on top and at the rear for exhaust. It is a much smaller version of The Tower 900 with dimensions of 462.8mm (Height), 266mm (Width), 266mm (Depth). Though it may not be the smallest Mini-ITX chassis on the market, it is a highly capable one that can fit high-end components like the RTX 30 Series Graphics Cards. The Tower 100 Racing Green Mini Chassis is designed to target users who have a limited space at their workplace or at home, or those who simply do not want their PC to take too much space. No matter if you are a regular users, gamers, or content creators, etc. you will find it ideal and can place it almost anywhere in your room.
| P/N | CA-1R3-00SCWN-00 |
| Series | The Tower |
| Model | The Tower 100 Racing Green |
| CASE TYPE | Mini Tower |

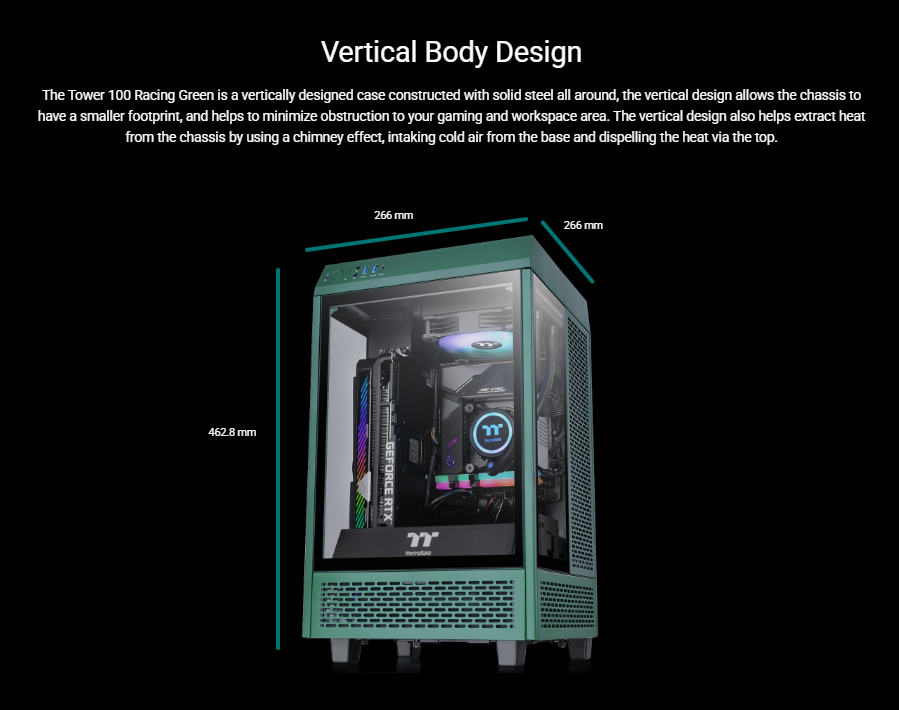

| Dimension (H x W x D) | 462.8 x 266 x 266 mm
(18.2 x 10.5 x 10.5 inch)
|
| NET WEIGHT | 6.1 kg / 13.45 lbs. |

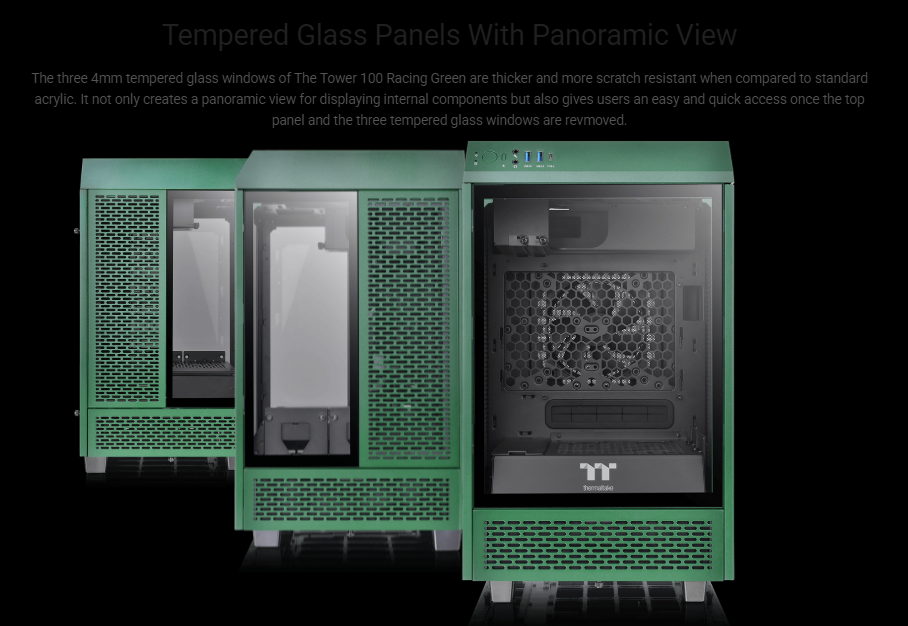

| PANEL | Tempered Glass x 3 (4mm thickness) |
| Color | Racing Green |
| MATERIAL | SPCC |

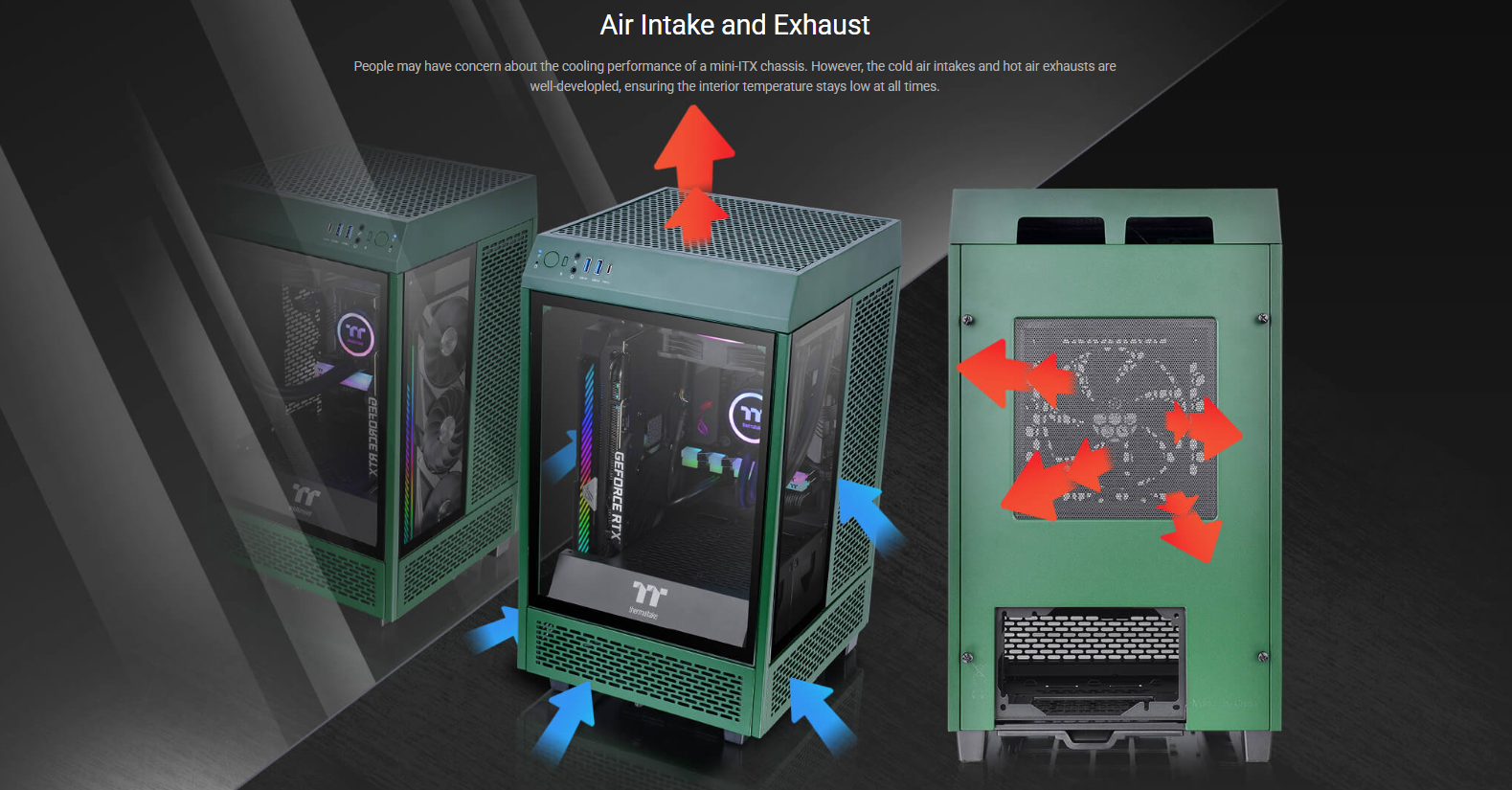

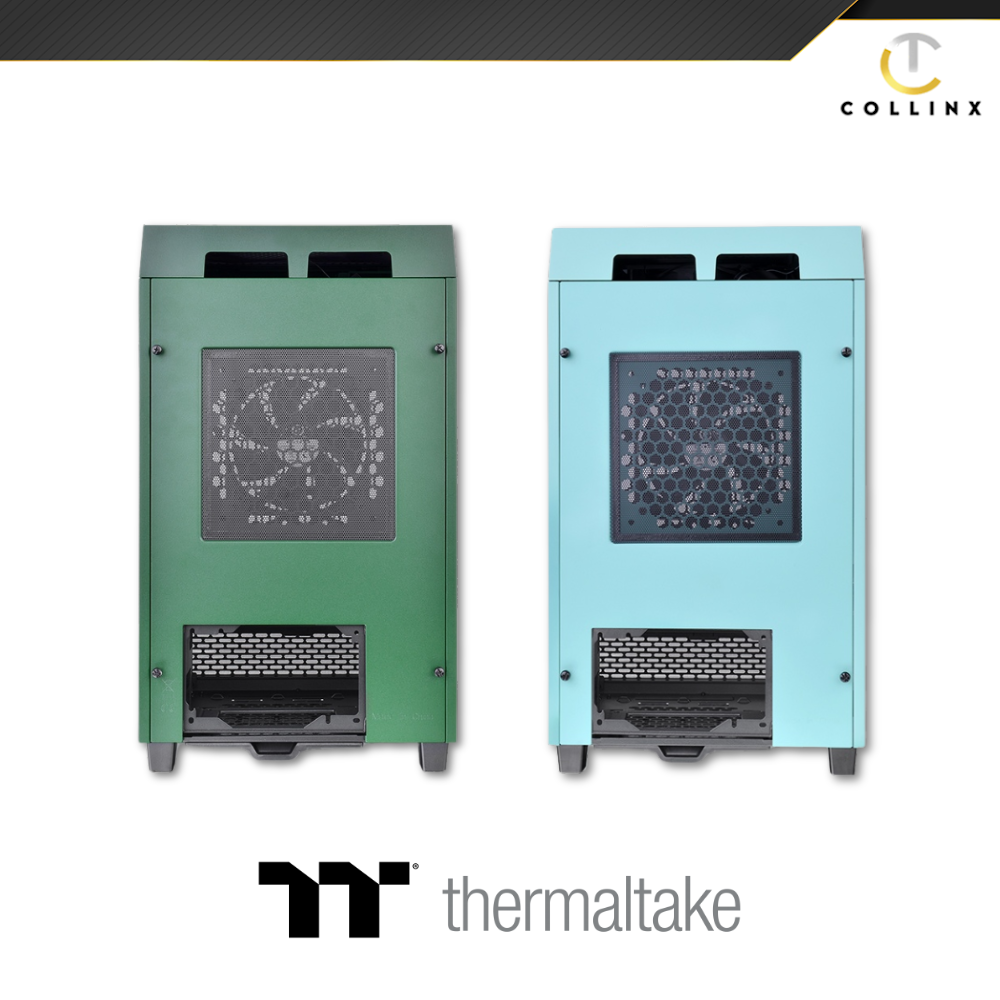

| COOLING SYSTEM | Top(exhaust):
120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 1
|
| Drive Bays
-Accessible -Hidden |
–
2 x 2.5“(with side bracket); 2 x 2.5“ or 2 x 3.5” (without rear fan)
|
| EXPANSION SLOTS | 2 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX) |

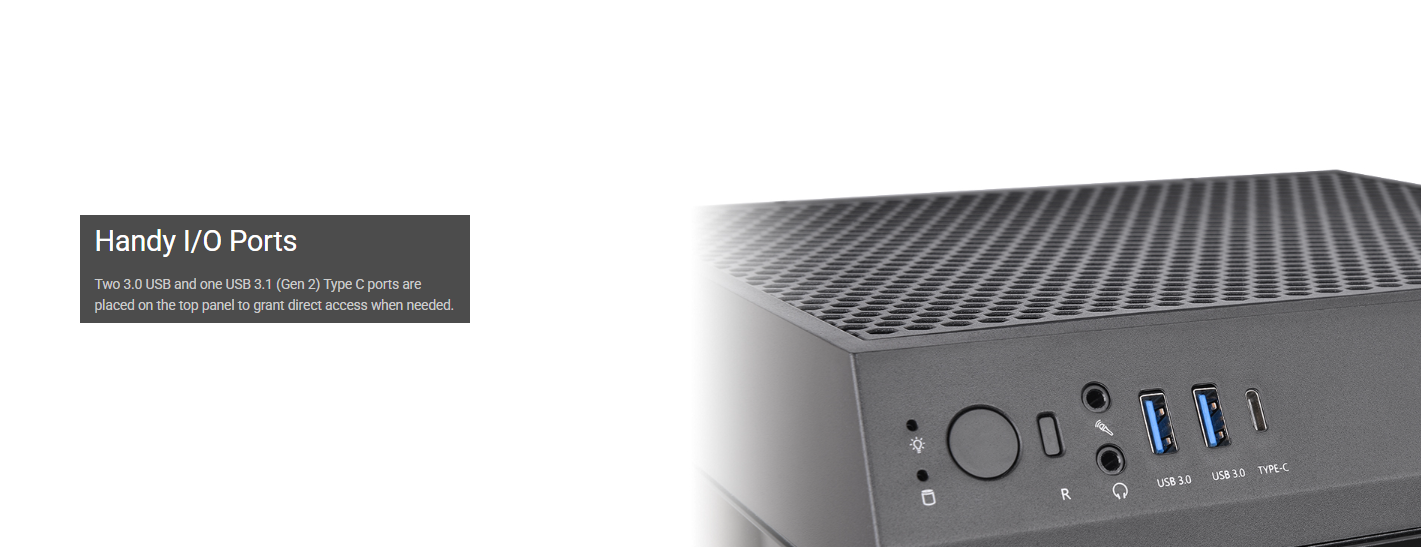

| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 2 |
| PSU | Standard PS2 PSU (optional) |

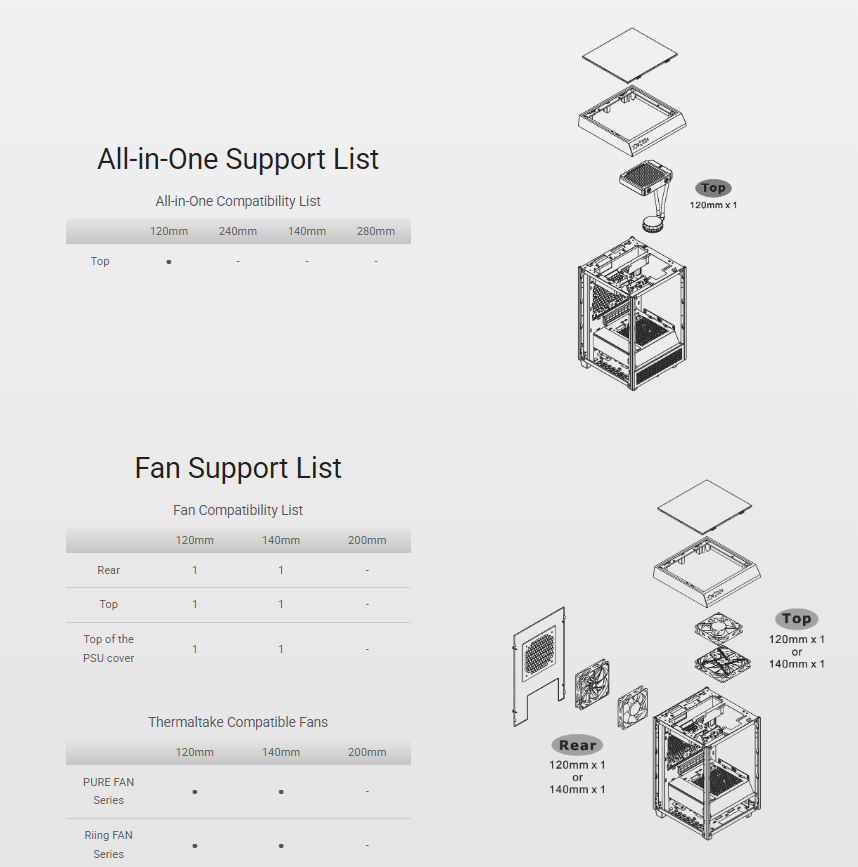

| FAN SUPPORT | Top:
1 x 120mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm Top of the PSU Cover: 1 x 120mm, 1 x 140mm
|
| RADIATOR SUPPORT | Top:
1 x 120mm
|

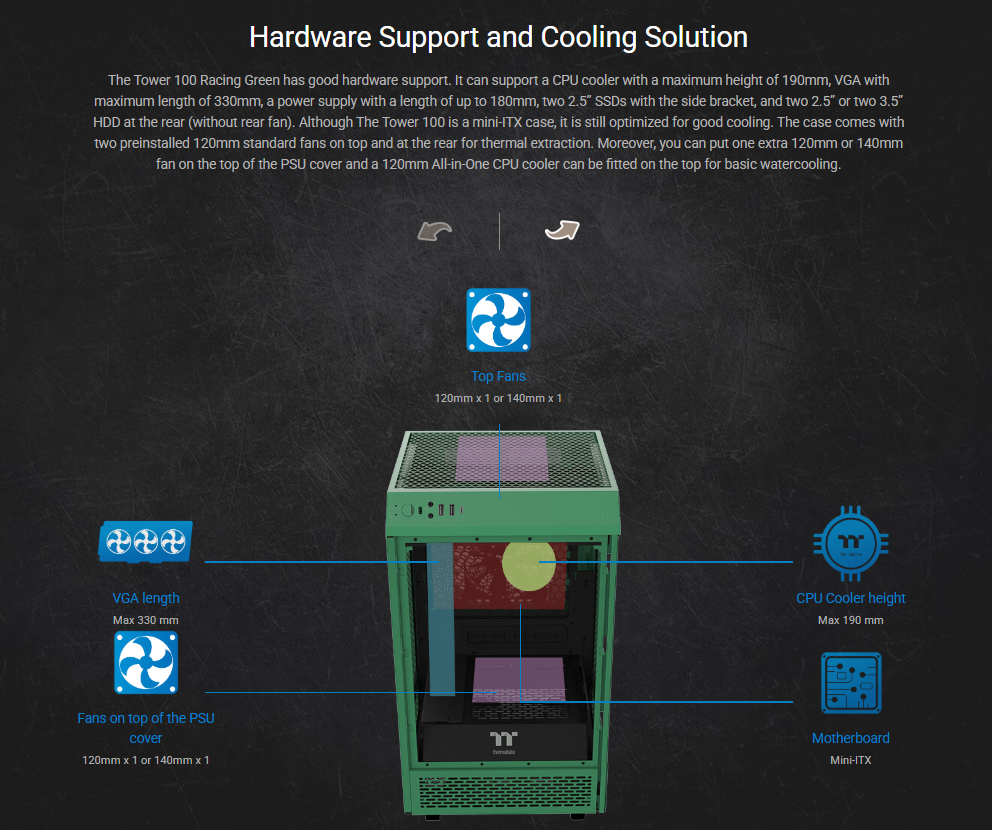

| CLEARANCE | CPU cooler height limitation: 190mm
VGA length limitation: 330mm (Compatible with SFF-Ready Enthusiast GeForce Cards) PSU length limitation: 180mm |
