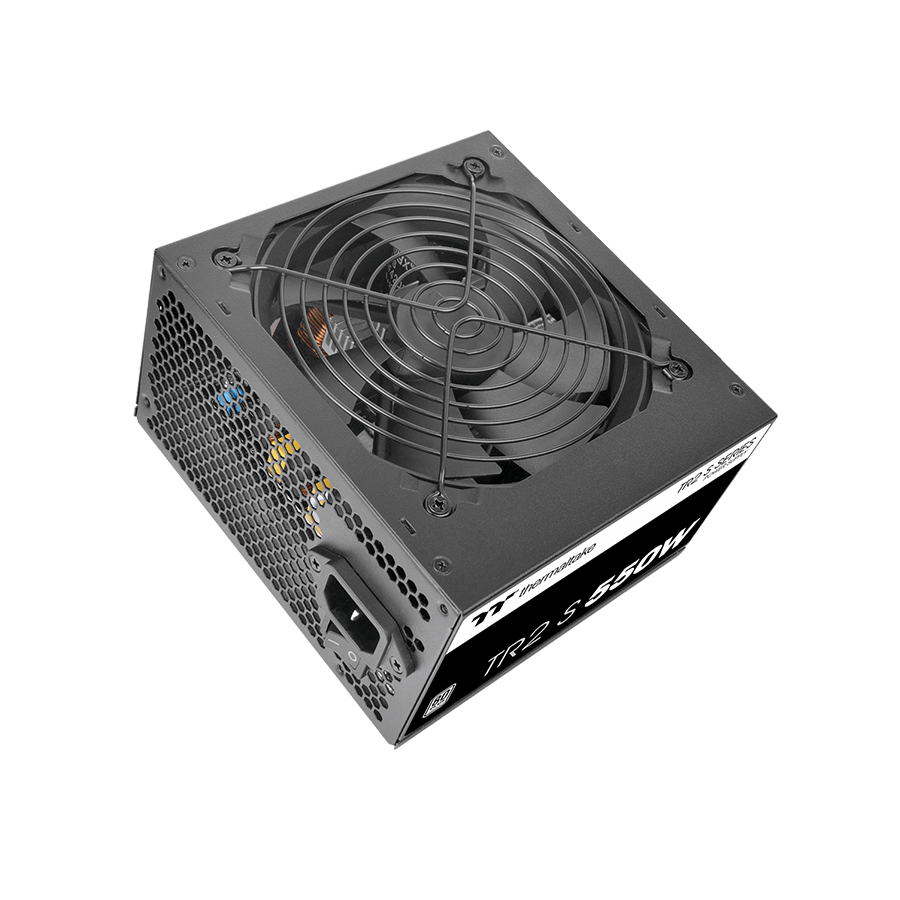

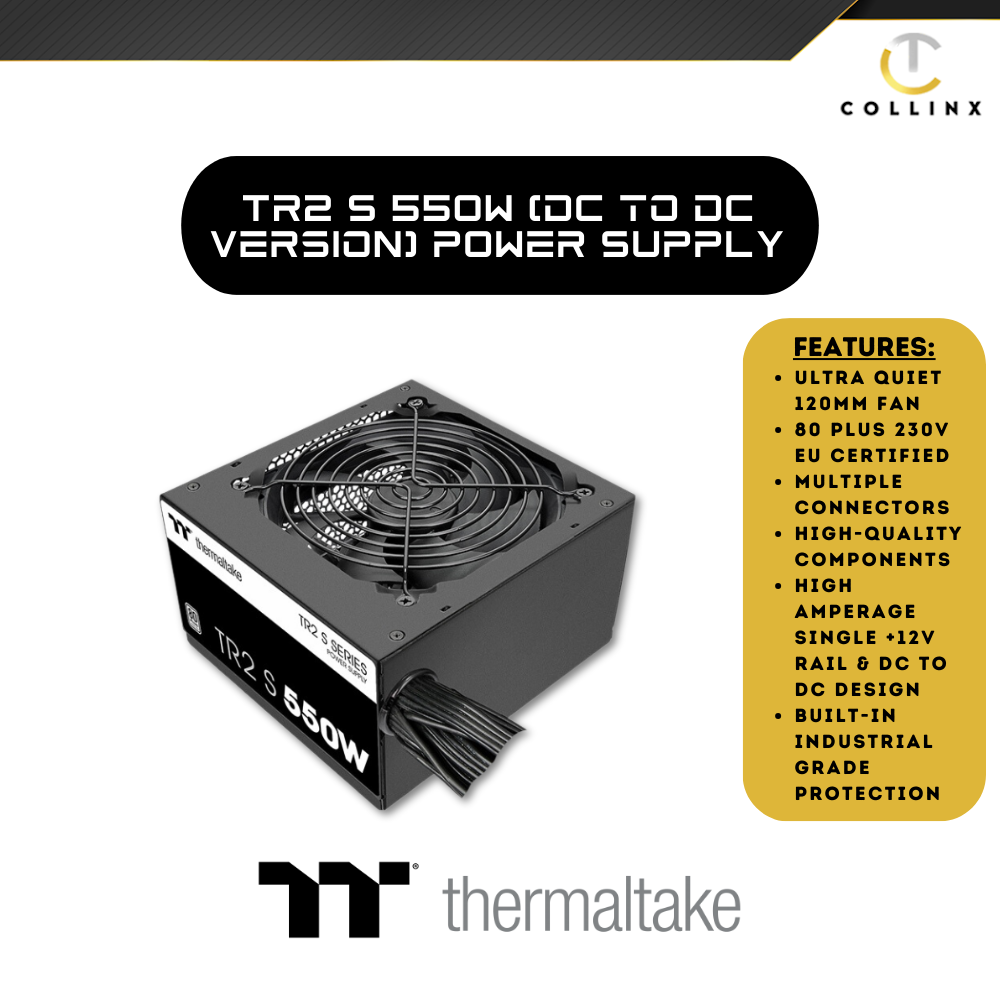

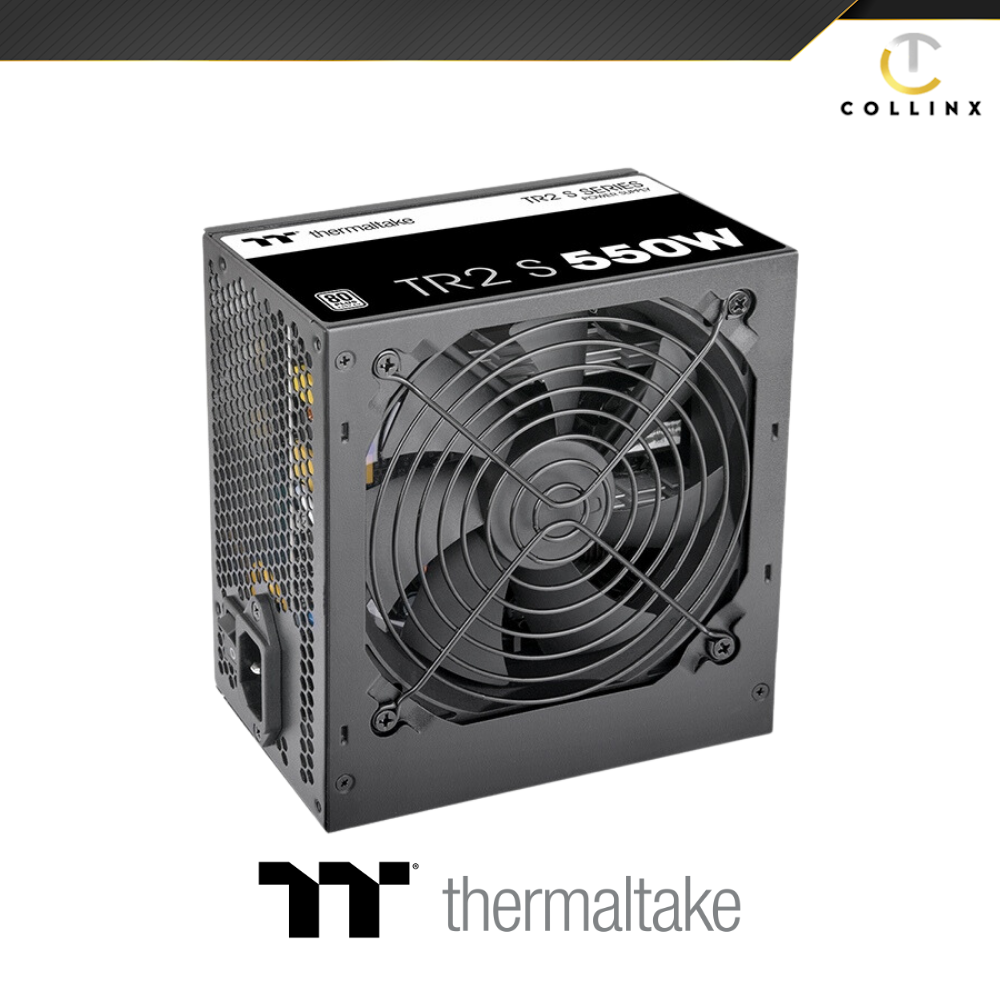

TR2 S 550W (DC to DC Version)
The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.

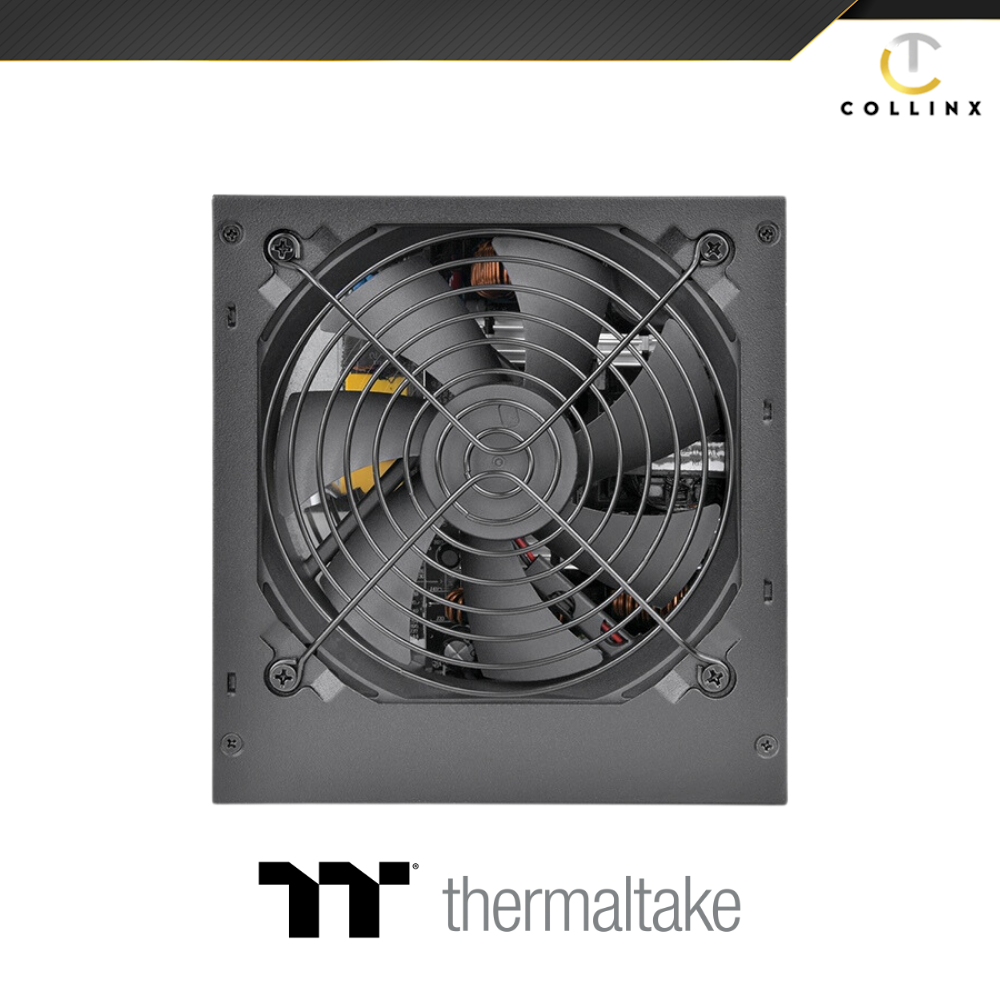

Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V EU Certified
TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors

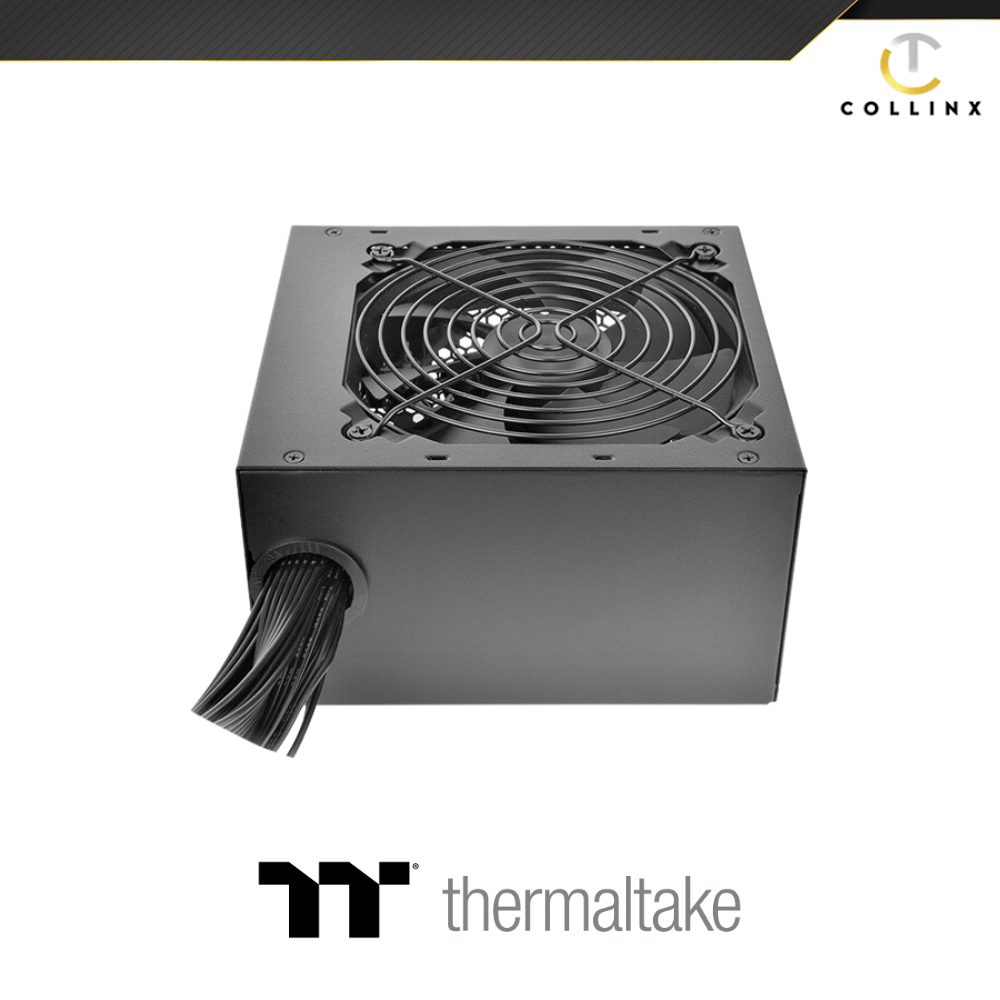

The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
| Main Power
(20+4Pin) |
X 1 | X 1 | 600mm | |
| ATX 12V
(4+4Pin) |
X 1 | X 2 | 650mm | |
| PCIe
(6+2Pin) |
X 2 | X 1 | 500mm+150mm | |
| SATA
(4Pin) |
X 4 | X 1 | 500mm+150mm +150mm+150mm | |
| Peripheral
(4Pin) |
X 4 | X 1 | 500mm+150mm +150mm+150mm |
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

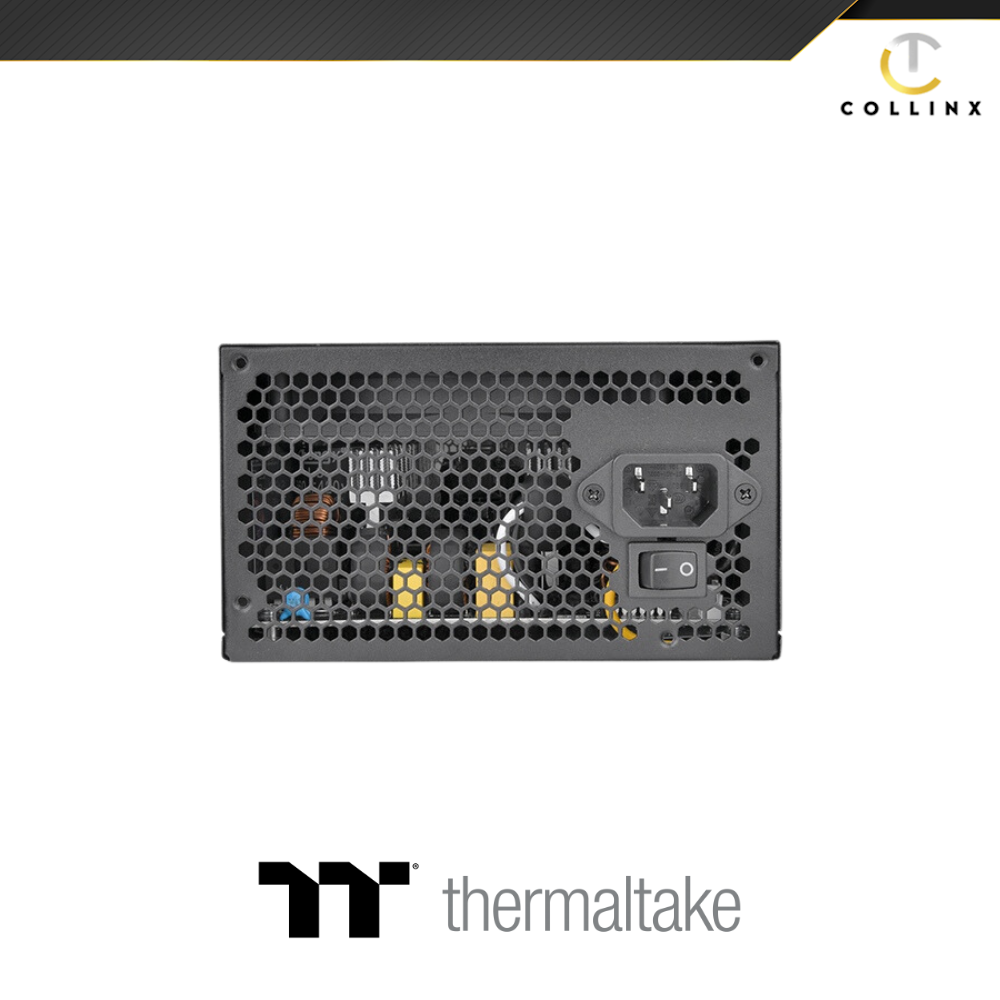

AC INPUT
Input Voltage: 200-240Vac
Input Current: 8A Max.
Frequency: 50Hz
DC OUTPUT
+3.3V +5V +12V -12V +5VSB
Max Output Current
18A
18A
45.8A
0.3A
2.5A
Max Output Power
100W
549.6W
3.6W
12.5W
Continuous Power
550W
Built-in Industrial Grade Protection
To protect the hardware, TR2 S series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
| P/N | PS-TRS-0550NNSAW*-2
|
| watts | 550W(DC to DC) |
| RGB Fan | No |
| Form Factor | ATX |
| Model | TRS-550AH2NXW
|
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D)
|
| PFC (Power Factor Correction) | Active PFC
|
| Power Good Signal | 100-150 msec
|
| Hold Up Time | > 17msec at 80% load
|
| Input Current | 8A Max.
|
| Input Frequency Range | 50Hz
|
| Input Voltage | 200-240Vac
|
| OPERATING TEMPERATURE | 5°C to + 40°C
|
| Operating Humidity | 20% to 85%,non-condensing
|
| Storage Temperature | -40°C to + 55°C
|
| Storage Humidity | 10% to 95%, non-condensing
|
| COOLING SYSTEM | 12cm Hydraulic Bearing Fan
|
| Efficiency | 80 PLUS® 230V EU Certified
|
| MTBF | 100,000 hrs minimum
|
| Safety Approval | FCC/ICES/CB/cTUVus
|
| PCI-E 6+2pin | 2 |
| PROTECTION | OVP/OPP/SCP |
