ZT-B50610H-10M

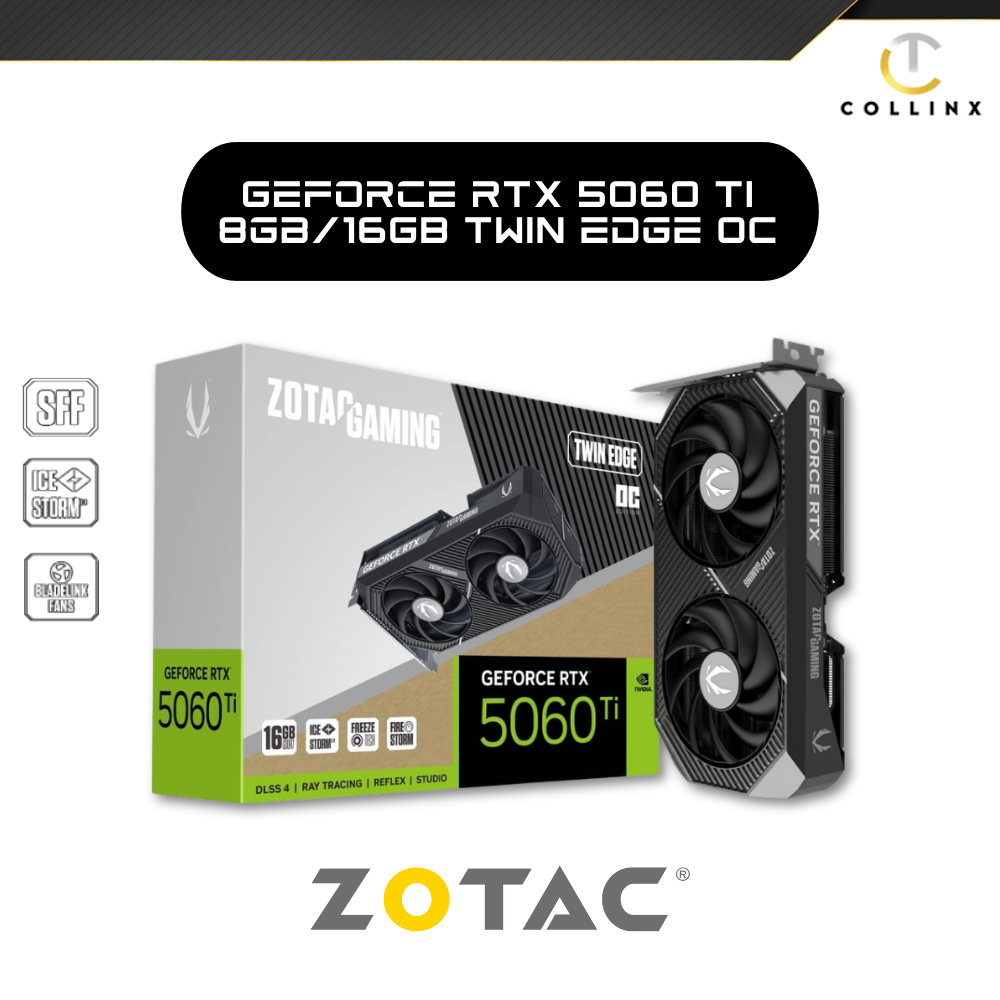

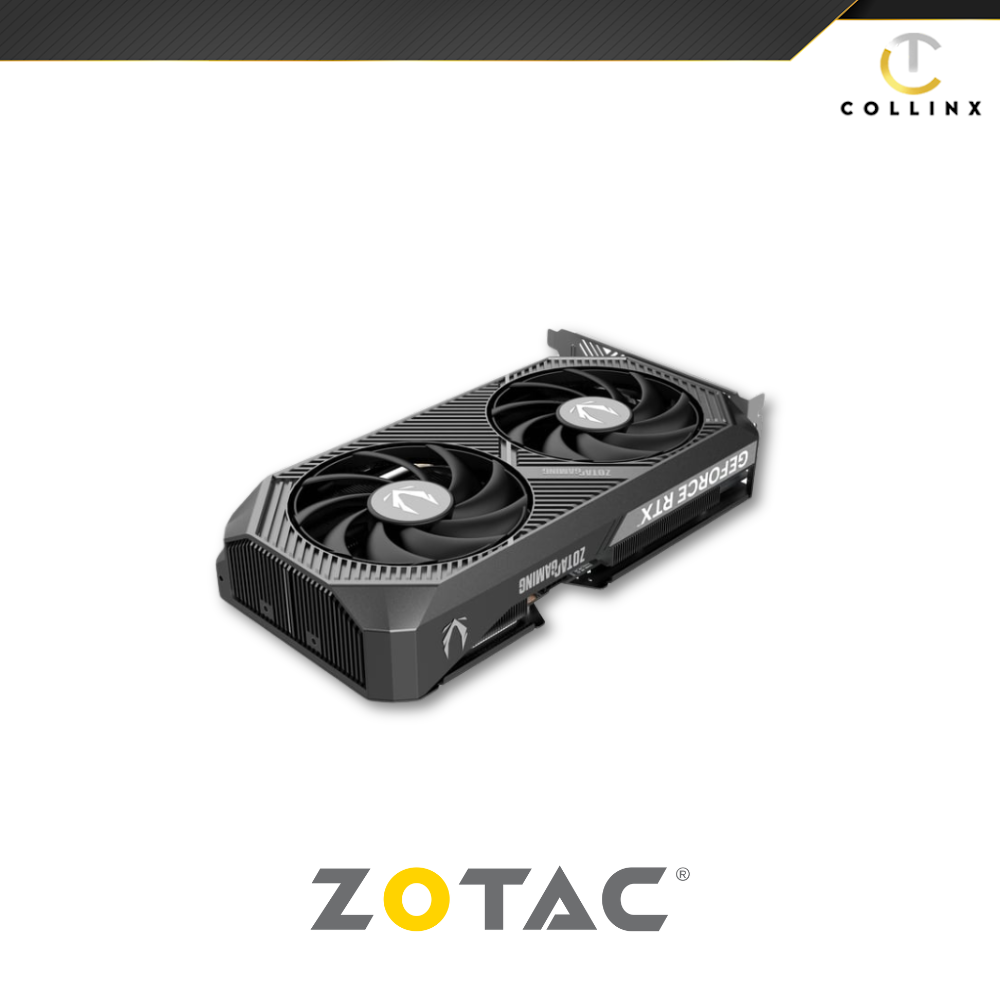

The ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.

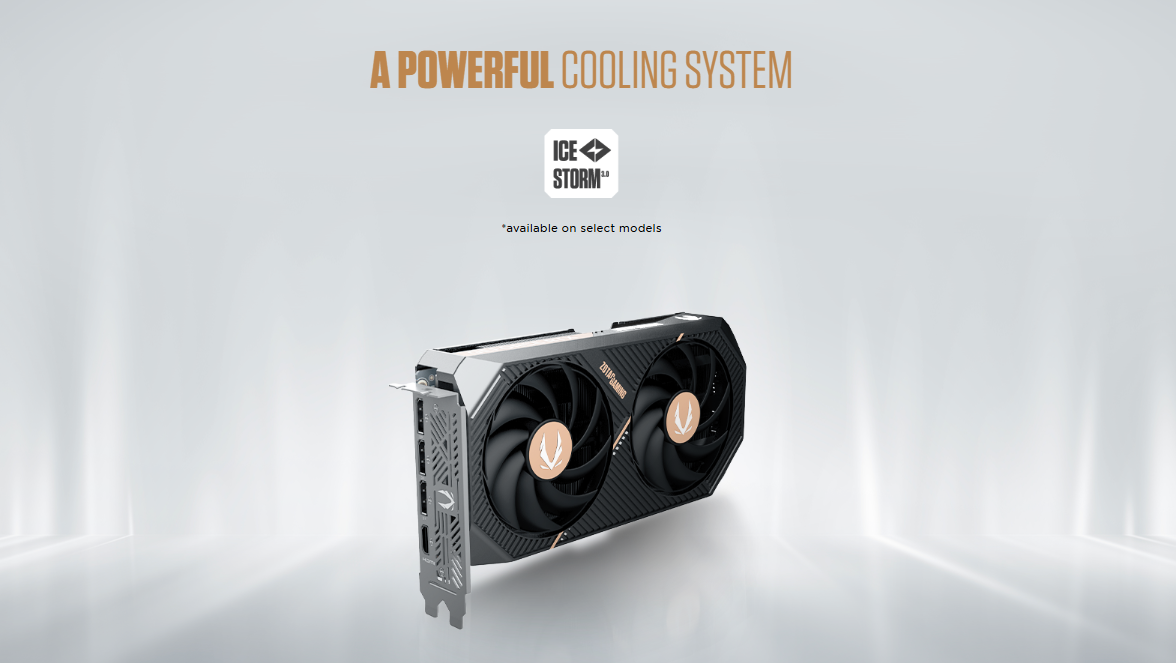

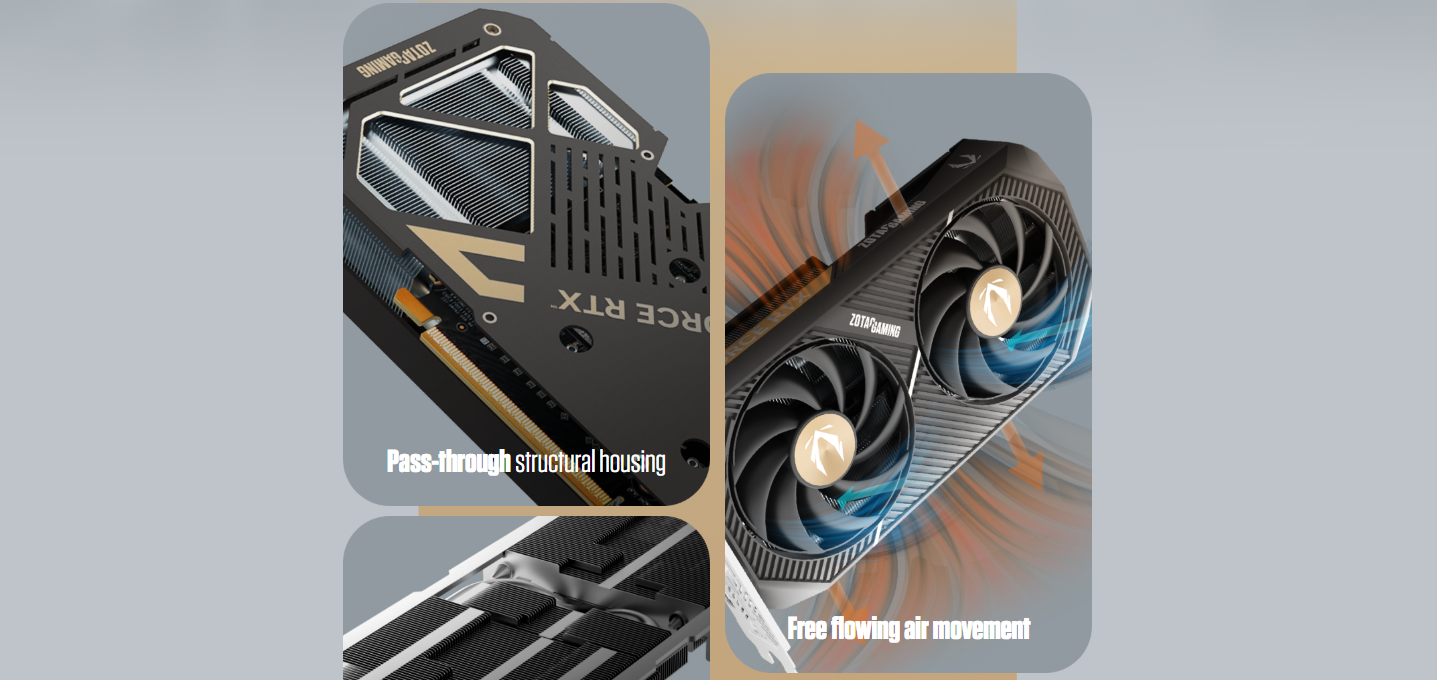

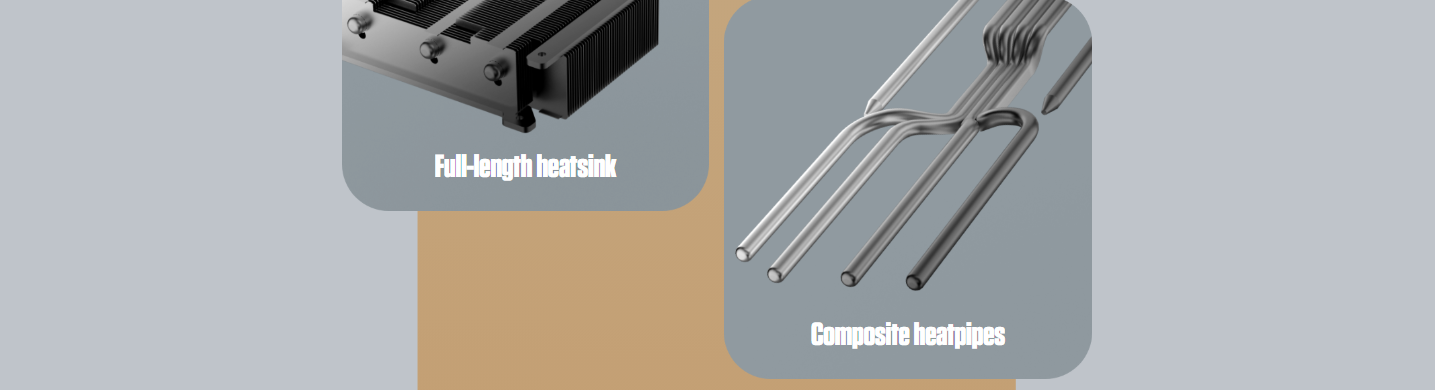

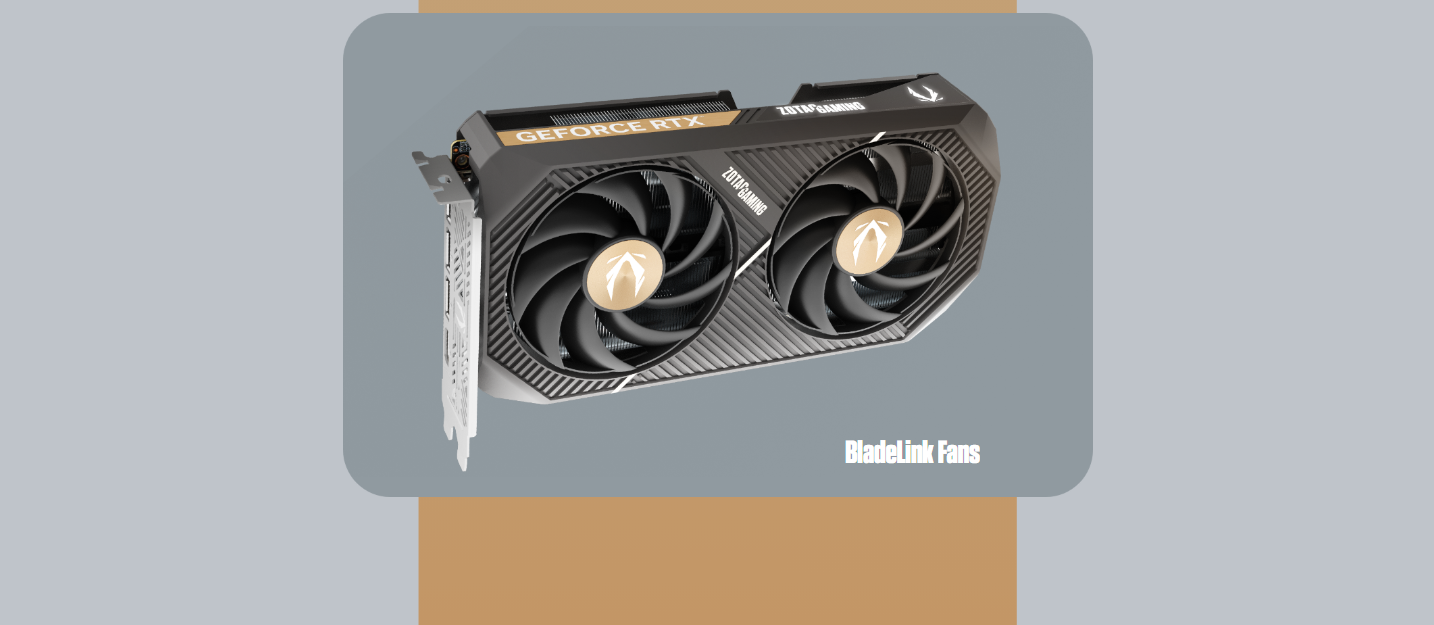

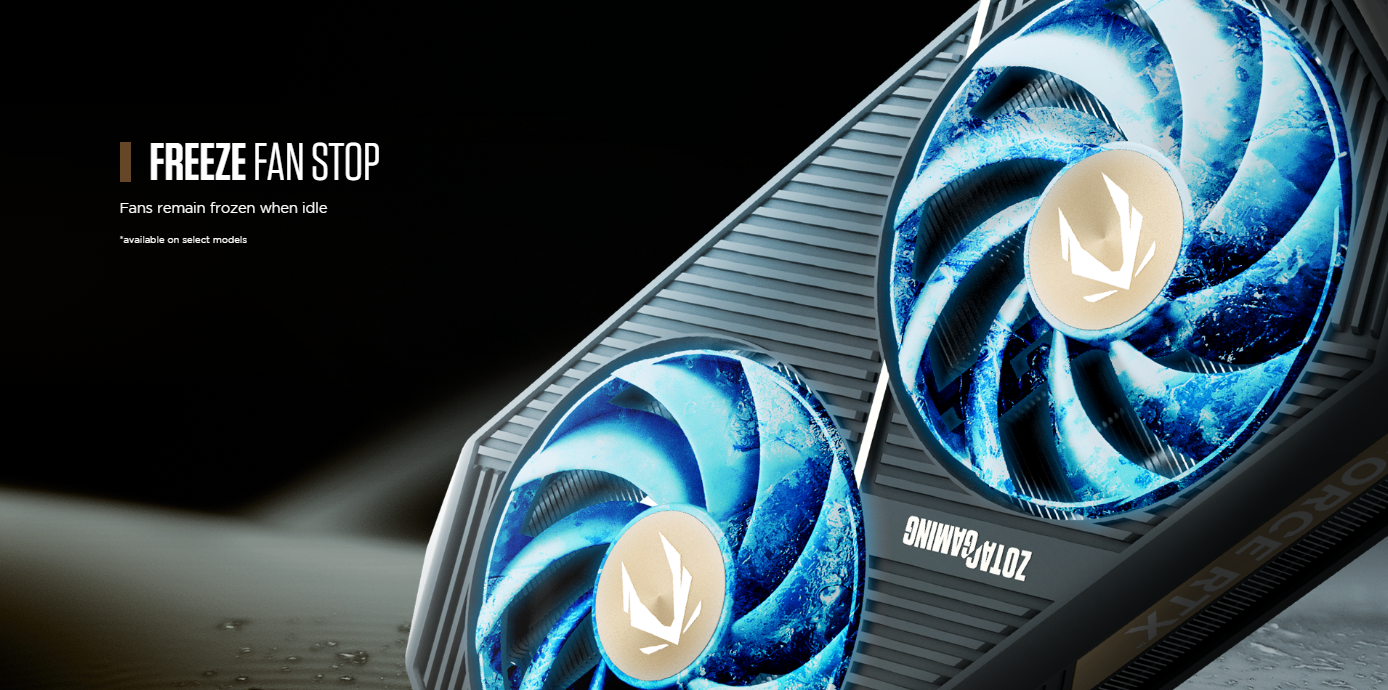

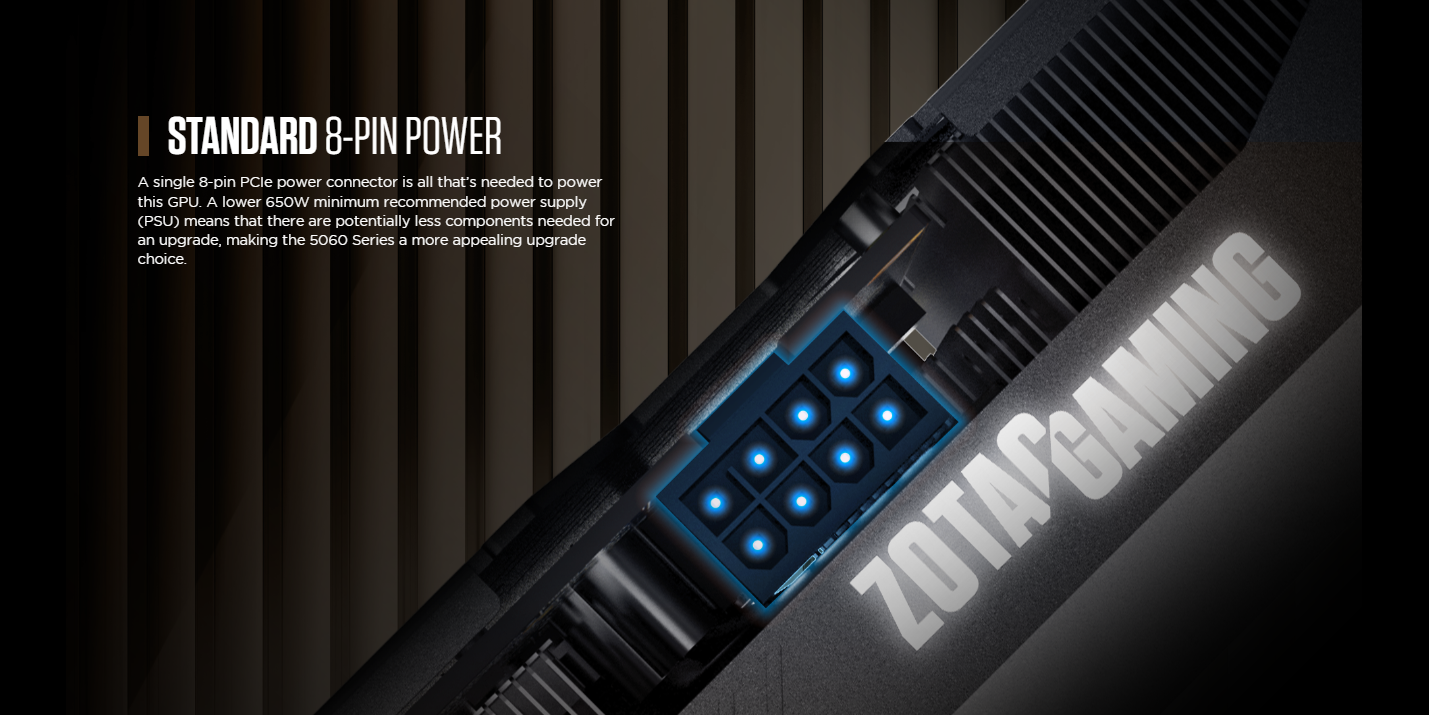

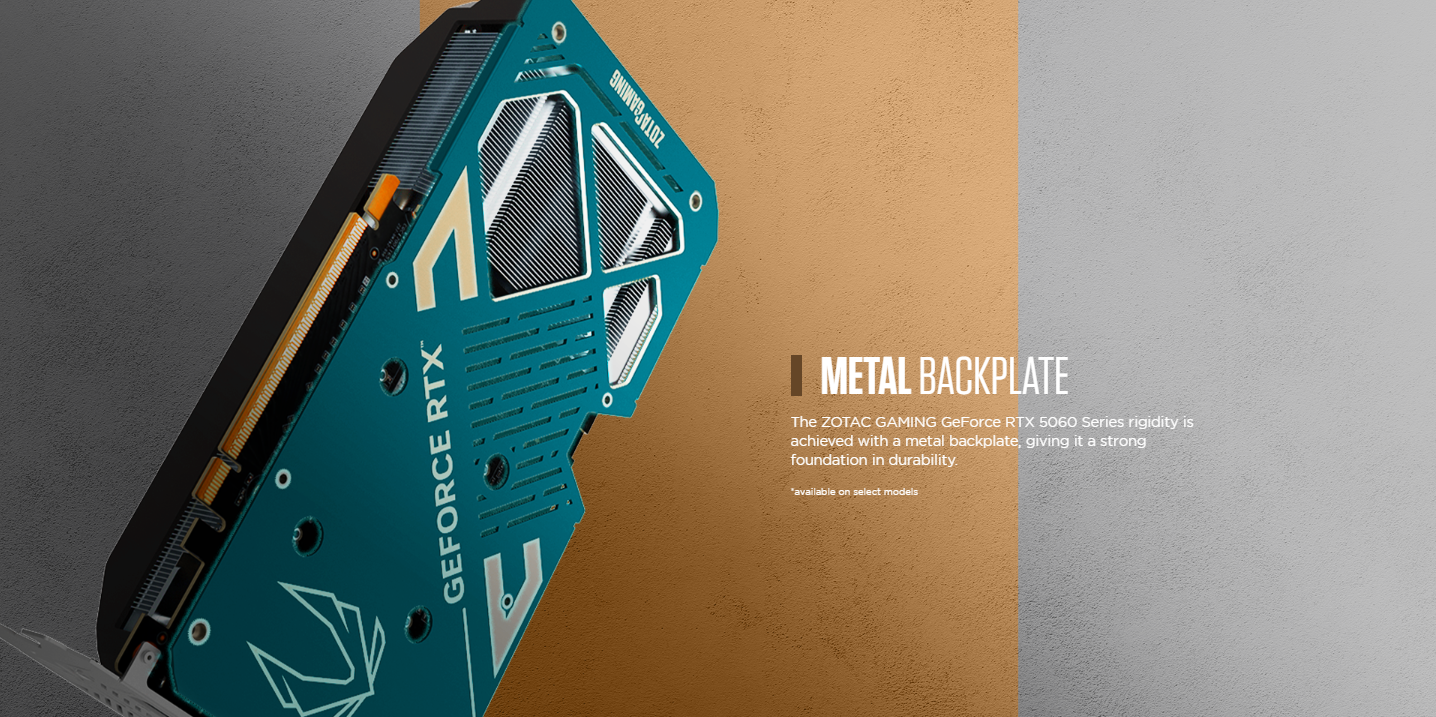

Feature Highlights: – Powered by the NVIDIA Blackwell architecture and DLSS 4 – 8-Pin PCIe power connector – SFF-Ready Graphics Card – Compact dual-fan form factor – IceStorm 2.0 Cooling – BladeLink Fans – FREEZE Fan Stop – Metal Backplate – All-new FireStorm Utility
ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC
ZT-B50620H-10M

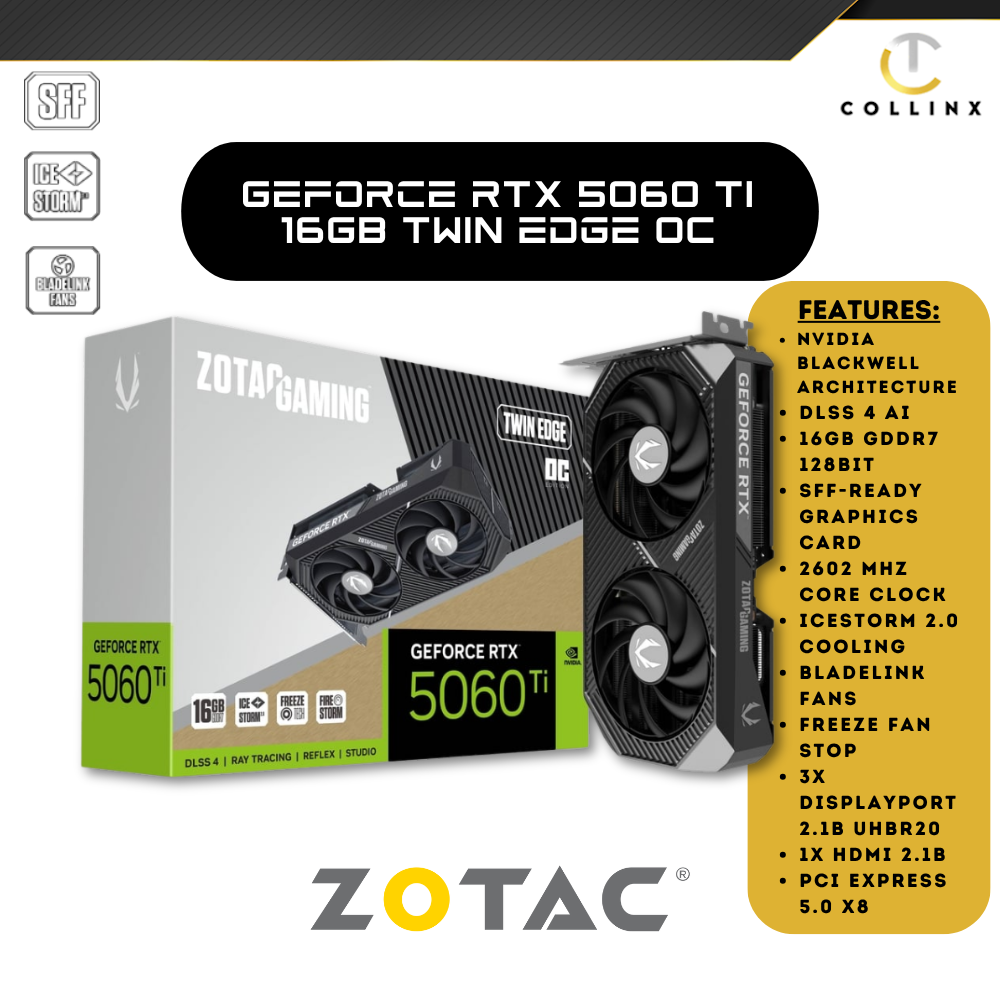

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.
Feature Highlights: – Powered by the NVIDIA Blackwell architecture and DLSS 4 – 8-Pin PCIe power connector – SFF-Ready Graphics Card – Compact dual-fan form factor – IceStorm 2.0 Cooling – BladeLink Fans – FREEZE Fan Stop – Metal Backplate – All-new FireStorm Utility
ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC Specifications:
GPU
NVIDIA GeForce RTX 5060 Ti GPU
-
CUDA cores
4608
-
Video Memory
8GB GDDR7
-
Memory Bus
128-bit
-
Engine Clock
2602 MHz
-
Memory Clock
28 Gbps
-
PCI Express
PCI Express 5.0 x8
-
Display Outputs

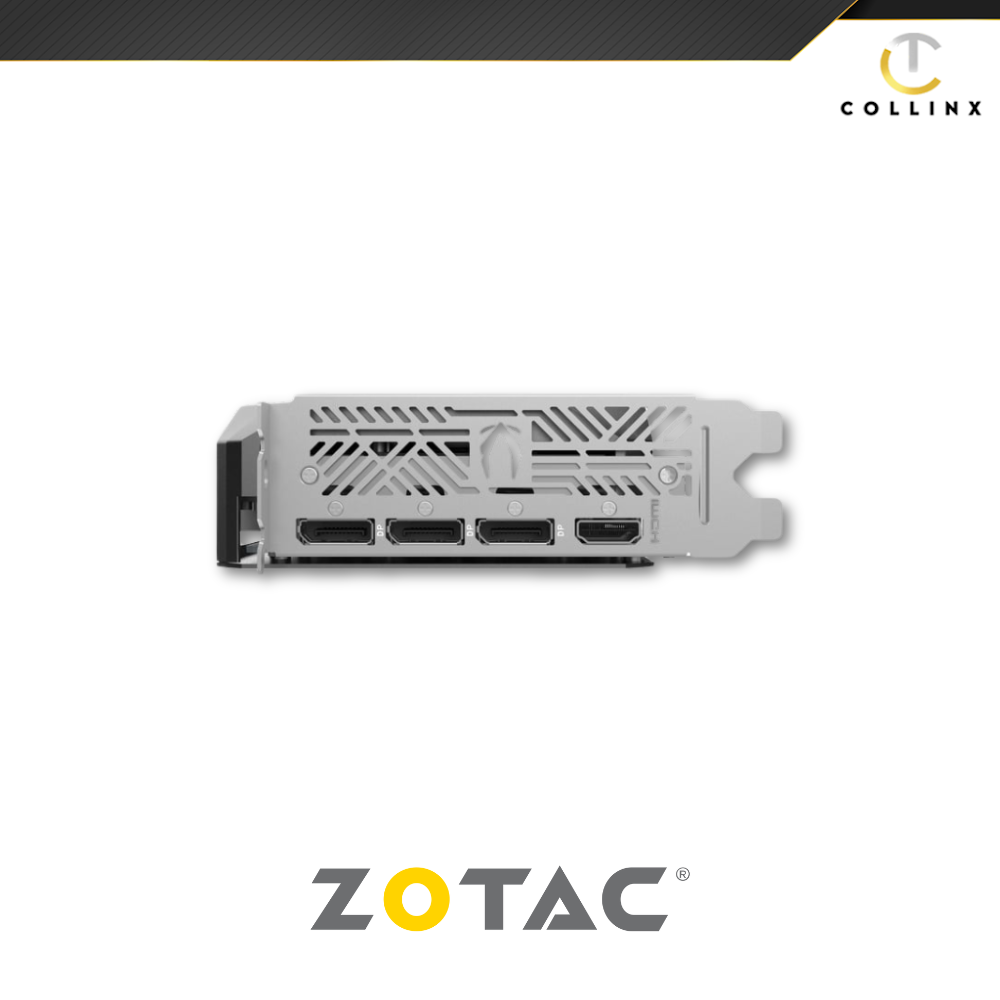

3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)
-
HDCP Support
2.3
-
Multi Display Capability
Quad Display
-
Recommended Power Supply
600W
-
Power Consumption
180W
-
Power Input
1 x 8-pin power input
-
DirectX
Microsoft DirectX® 12 Ultimate
-
OpenGL
4.6
-
Cooling
IceStorm 2.0
-
Slot Size
2
-
SLI
No
-
Supported OS
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
-
Card Length
220.5mm x 120.25mm x 41.6mm / 8.7″ x 4.7″ x 1.6″
-
Accessories
User Manual
ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC Specifications:
GPU
NVIDIA GeForce RTX 5060 Ti GPU
-
CUDA cores
4608
-
Video Memory
16GB GDDR7
-
Memory Bus
128-bit
-
Engine Clock
2602 MHz
-
Memory Clock
28 Gbps
-
PCI Express
PCI Express 5.0 x8
-
Display Outputs
3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)
-
HDCP Support
2.3
-
Multi Display Capability
Quad Display
-
Recommended Power Supply
600W
-
Power Consumption
180W
-
Power Input
1 x 8-pin power input
-
DirectX
Microsoft DirectX® 12 Ultimate
-
OpenGL
4.6
-
Cooling
IceStorm 2.0
-
Slot Size
2
-
SLI
No
-
Supported OS
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
-
Card Length
220.5mm x 120.25mm x 41.6mm / 8.7″ x 4.7″ x 1.6″
-
Accessories
User Manual
